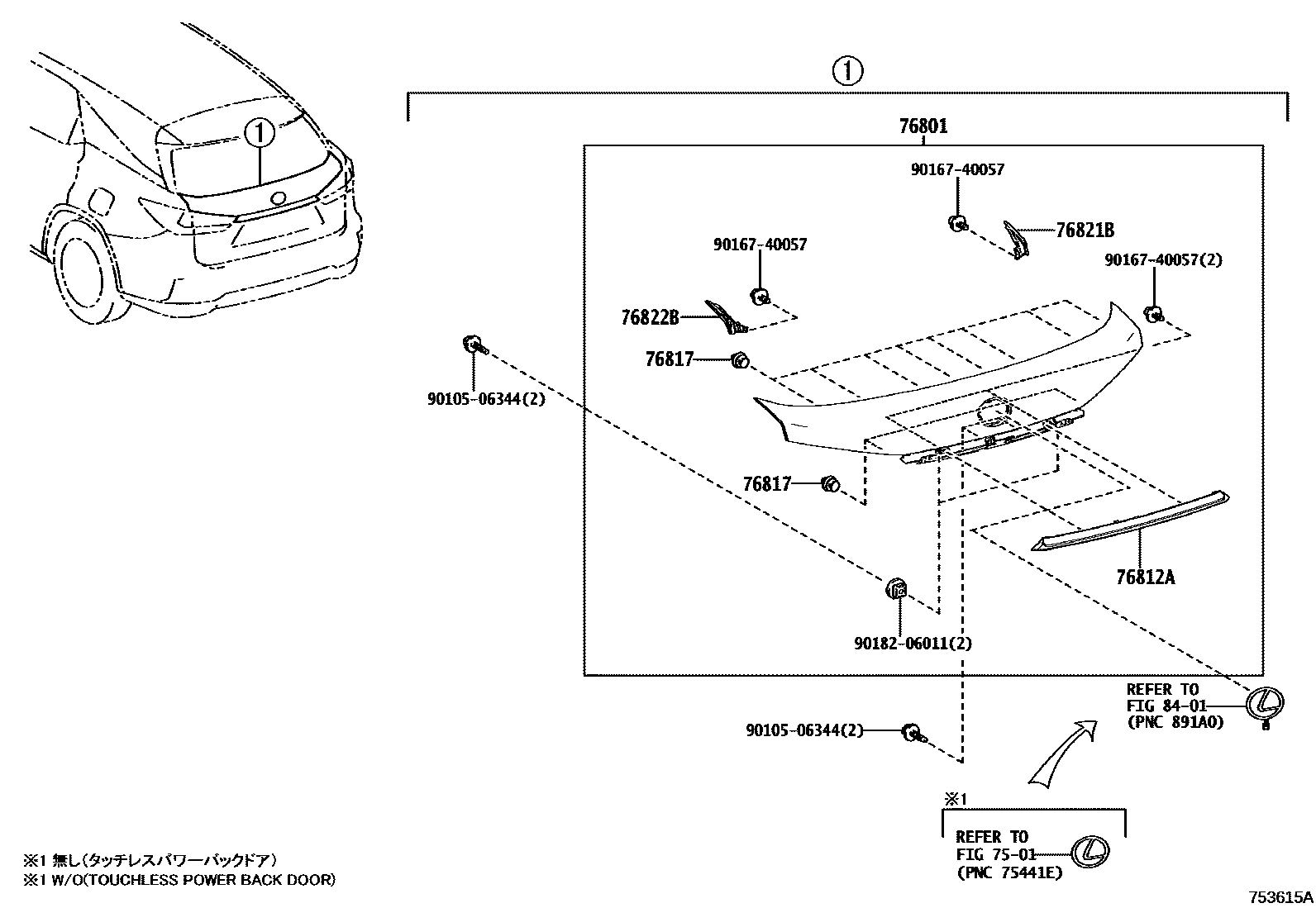

REAR MOULDING

7501EMBLEM & NAME PLATE (EXTERIOR & INTERIOR)

→ Go to FIG 75-01

76801GARNISH SUB-ASSY, BACK DOOR, OUTSIDE

main76801-48520-A0iGGL2#,GYL26201712-201908

SONIC QUARTZ,085

main76801-48520-B0iGGL2#,GYL26201908-202107

MERCURY GRAY MC.,1H9

main76801-48520-B1iGGL2#,GYL26201712-201908

PLATINUM SILVER ME.,1J4

main76801-48520-B2iGGL2#,GYL26201908

SONIC TITANIUM,1J7

main76801-48520-B3iGGL2#,GYL26202107

SONIC CHROME,1L1

main76801-48520-B4iGGL2#,GYL26202107

SONIC IRIDIUM,1L2

main76801-48520-C0iGGL2#,GYL26201712-201908

BLACK,212

main76801-48520-C1iGGL2#,GYL26201908

GRAPHITE BLACK GF.,223

main76801-48520-D0iGGL2#,GYL26201908

RED MC.CS.,3R1

main76801-48520-E0iGGL2#,GYL26201712-201908

SLEEK ECRU ME.,4U7

main76801-48520-E1iGGL2#,GYL26201908-202107

AMBER CS.,4X2

main76801-48520-E2iGGL2#,GYL26201908

ICE ECRU M.M.,4X8

main76801-48520-G0iGGL2#,GYL26201908

TERRANE KHAKI M.M.,6X4

main76801-48520-J0iGGL2#,GYL26201908

DEEP BLUE MC.,8X5

76812AGARNISH, BACK DOOR, OUTSIDE NO.2

main76812-48110iGGL2#,GYL26201712-201908

76817CLIP, BACK DOOR OUTSIDE GARNISH

main90467-09206×10iGGL2#,GYL26201712-201908

76821BPROTECTOR, BACK DOOR GARNISH SIDE, RH

main76821-48050iGGL2#,GYL26201712-201908

76822BPROTECTOR, BACK DOOR GARNISH SIDE, LH

main76822-48050iGGL2#,GYL26201712-201908

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9010506344

main90105-06344

9016740057

main90167-40057

9018206011

main90182-06011

10 parts on this diagram · 1 diagram in section
