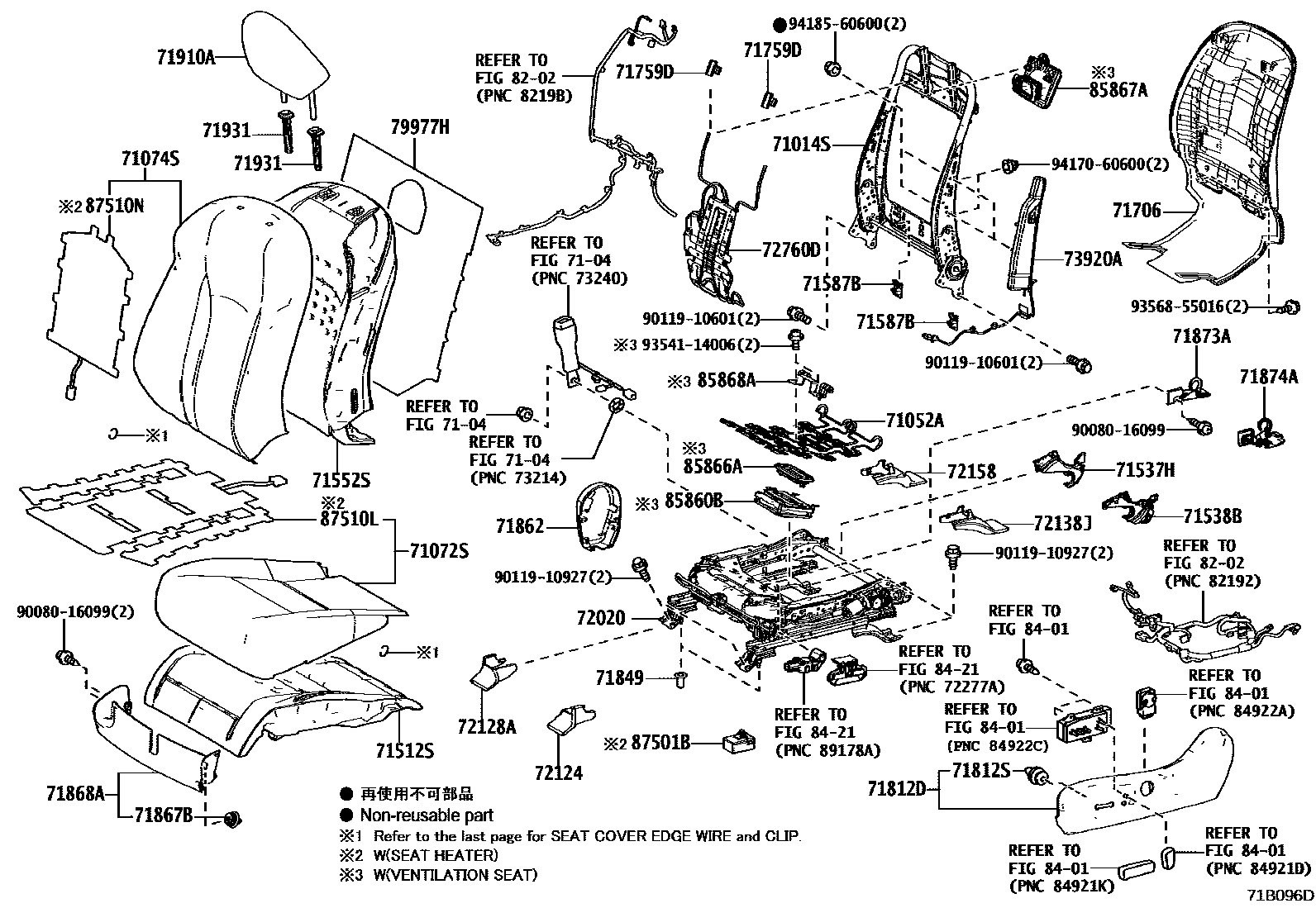

FRONT SEAT & SEAT TRACK

71014SFRAME SUB-ASSY, FRONT SEATBACK, LH

7104

71052ASPRING SUB-ASSY, FRONT SEAT CUSHION, LH

main71051-78010supersedes 71051-78020i201908

PREMIUM PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH)&SEAT HEATER-WITH(FRONTSEAT)

71072SCOVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)

main71072-48A40-A4supersedes 71072-48B80-A6i201712-201806

SEAT HEATER-WITH(FRONT SEAT),IVORY,TRIM0#

main71072-48A40-B2supersedes 71072-48B80-B3i201712-201806

SEAT HEATER-WITH(FRONT SEAT),MOON STONE,TRIM1#

main71072-48A40-C3supersedes 71072-48B80-C6i201712-201806

SEAT HEATER-WITH(FRONT SEAT),BLACK,TRIM2#

main71072-48A40-E3supersedes 71072-48A30-E3i201712-201806

SEAT HEATER-WITH(FRONT SEAT),NOBLE BROWN,TRIM4#

main71072-48A40-F3supersedes 71072-48A30-F3i201712-201806

SEAT HEATER-WITH(FRONT SEAT),TOPAZ BROWM,TRIM5#

main71072-48A41-A4supersedes 71072-48B80-A6i201807-201908

SEAT HEATER-WITH(FRONT SEAT),IVORY,TRIM0#

main71072-48A41-B2supersedes 71072-48B80-B3i201807-201908

SEAT HEATER-WITH(FRONT SEAT),MOON STONE,TRIM1#

main71072-48A41-C3supersedes 71072-48B80-C6i201807-201908

SEAT HEATER-WITH(FRONT SEAT),BLACK,TRIM2#

main71072-48A41-E3supersedes 71072-48A30-E3i201807-201908

SEAT HEATER-WITH(FRONT SEAT),NOBLE BROWN,TRIM4#

main71072-48A41-F3supersedes 71072-48A30-F3i201807-201908

SEAT HEATER-WITH(FRONT SEAT),TOPAZ BROWM,TRIM5#

main71072-48A60-A6supersedes 71072-48B80-A6i201712-201806

"VERSION L"*(L)&SEAT HEATER-WITH(FRONT SEAT & REAR NO.1 SEAT),IVORY,TRIM0#

main71072-48A60-B0supersedes 71072-48B80-B3i201712-201806

"VERSION L"*(L)&SEAT HEATER-WITH(FRONT SEAT & REAR NO.1 SEAT),MOON STONE,TRIM1#

main71072-48A60-C3supersedes 71072-48B80-C6i201712-201806

"VERSION L"*(L)&SEAT HEATER-WITH(FRONT SEAT & REAR NO.1 SEAT),BLACK,TRIM2#

main71072-48A60-E3supersedes 71072-48A30-E3i201712-201806

"VERSION L"*(L)&SEAT HEATER-WITH(FRONT SEAT & REAR NO.1 SEAT),NOBLE BROWN,TRIM4#

main71072-48A60-F3supersedes 71072-48A30-F3i201712-201806

"VERSION L"*(L)&SEAT HEATER-WITH(FRONT SEAT & REAR NO.1 SEAT),TOPAZ BROWN,TRIM5#

main71072-48A61-A6supersedes 71072-48B80-A6i201807-201908

"VERSION L"*(L)&SEAT HEATER-WITH(FRONT SEAT & REAR NO.1 SEAT),IVORY,TRIM0#

main71072-48A61-B0supersedes 71072-48B80-B3i201807-201908

"VERSION L"*(L)&SEAT HEATER-WITH(FRONT SEAT & REAR NO.1 SEAT),MOON STONE,TRIM1#

main71072-48A61-C3supersedes 71072-48B80-C6i201807-201908

"VERSION L"*(L)&SEAT HEATER-WITH(FRONT SEAT & REAR NO.1 SEAT),BLACK,TRIM2#

main71072-48A61-E3supersedes 71072-48A30-E3i201807-201908

"VERSION L"*(L)&SEAT HEATER-WITH(FRONT SEAT & REAR NO.1 SEAT),NOBLE BROWN,TRIM4#

main71072-48A61-F3supersedes 71072-48A30-F3i201807-201908

"VERSION L"*(L)&SEAT HEATER-WITH(FRONT SEAT & REAR NO.1 SEAT),TOPAZ BROWN,TRIM5#

main71072-48B80-C7i202107

KOREA SPEC&REAR NO.1 SEAT-BENCH SEAT,BLACK/BLUE,TRIM7#

main71072-48B80-E0i202007

REAR NO.1 SEAT-CAPTAIN SEAT,OCHER,TRIM5#

main71072-48B90-A5supersedes 71072-48B80-A6i201908

SEAT HEATER-WITH(FRONT SEAT),IVORY,TRIM0#

main71072-48B90-B3supersedes 71072-48B80-B3i201908

PREMIUM PACKAGE&REAR NO.1 SEAT-CAPTAIN SEAT&SEAT HEATER-WITH(FRONT SEAT),WHITE ASH,TRIM1#

main71072-48B90-C5i201908

PREMIUM PACKAGE&SEAT HEATER-WITH(FRONT SEAT),BLACK,TRIM2#

main71072-48B90-C7i202107

PREMIUM PACKAGE&SEAT HEATER-WITH(FRONT SEAT),BLACK/BLUE,TRIM7#

main71072-48B90-E2i202007

PREMIUM PACKAGE&SEAT HEATER-WITH(FRONT SEAT),OCHER,TRIM5#

main71072-48C00-A6supersedes 71072-48B80-A6i201908

PREMIUM PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH),IVORY,TRIM0#

main71072-48C00-B3supersedes 71072-48B80-B3i201908

PREMIUM PACKAGE&REAR NO.1 SEAT-CAPTAIN SEAT&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH),WHITE ASH,TRIM1#

main71072-48C00-C4supersedes 71072-48B80-C6i201908

PREMIUM PACKAGE&REAR NO.1 SEAT-CAPTAIN SEAT&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH),BLACK,TRIM2#

main71072-48C00-C5i202107

PREMIUM PACKAGE&REAR NO.1 SEAT-CAPTAIN SEAT&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH),BLACK/BLUE,TRIM7#

main71072-48C00-E6i201908

PREMIUM PACKAGE&REAR NO.1 SEAT-CAPTAIN SEAT&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH),NOBLE BROWN,TRIM4#

main71072-48C00-E7supersedes 71072-48A30-F3i201908

PREMIUM PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH),OCHER,TRIM5#

main71072-48C10-A7supersedes 71072-48B80-A6i201908

REAR NO.1 SEAT-CAPTAIN SEAT&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH)&SEAT HEATER-WITH(FRONT SEAT),IVORY,TRIM0#

main71072-48C10-B3i201908

SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH)&SEAT HEATER-WITH(FRONT SEAT),WHITE ASH,TRIM1#

main71072-48C10-C4i201908

KOREA SPEC&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH)&SEAT HEATER-WITH(FRONT SEAT& REAR NO.1 SEAT),BLACK,TRIM2#

main71072-48C10-C5i202107

PREMIUM PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH)&SEAT HEATER-WITH(FRONTSEAT & REAR NO.1 SEAT),BLACK/BLUE,TRIM7#

main71072-48C10-E6supersedes 71072-48A30-E3i201908

PREMIUM PACKAGE&REAR NO.1 SEAT-CAPTAIN SEAT&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH)&SEAT HEATER-WITH(FRONT SEAT & REAR NO.1 SEAT),NOBLE BROWN,TRIM4#

main71072-48C10-E7supersedes 71072-48A30-F3i201908

REAR NO.1 SEAT-CAPTAIN SEAT&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH)&SEAT HEATER-WITH(FRONT SEAT),OCHER,TRIM5#

main71072-48C30-A6supersedes 71072-48B80-A6i201908

"VERSION L"*(L)&SEAT COVER MATERIAL-NATURAL LEATHER(SEMIANILIN)&SEAT HEATER-WITH(FRONT SEAT & REAR NO.1 SEAT),IVORY,TRIM0#

main71072-48C30-B3supersedes 71072-48B80-B3i201908

KOREA SPEC&"VERSION L"*(L)&SEAT COVER MATERIAL-NATURAL LEATHER(SEMIANILIN)&SEAT HEATER-WITH(FRONT SEAT & REAR NO.1 SEAT),WHITE ASH,TRIM1#

main71072-48C30-C4supersedes 71072-48B80-C6i201908

"VERSION L"*(L)&REAR NO.1 SEAT-CAPTAIN SEAT&SEAT COVER MATERIAL-NATURAL LEATHER(SEMIANILIN)&SEAT HEATER-WITH(FRONT SEAT & REAR NO.1 SEAT),BLACK,TRIM2#

main71072-48C30-E6supersedes 71072-48A30-E3i202007

"VERSION L"*(L)&REAR NO.1 SEAT-CAPTAIN SEAT&SEAT COVER MATERIAL-NATURAL LEATHER(SEMIANILIN)&SEAT HEATER-WITH(FRONT SEAT),NOBLE BROWN,TRIM4#

main71072-48C30-E7supersedes 71072-48A30-F3i201908

KOREA SPEC&"VERSION L"*(L)&SEAT COVER MATERIAL-NATURAL LEATHER(SEMIANILIN)&SEAT HEATER-WITH(FRONT SEAT & REAR NO.1 SEAT),OCHER,TRIM5#

71074SCOVER, FRONT SEATBACK, LH(FOR SEPARATE TYPE)

main71074-48C60-A3supersedes 71074-48E60-A3i201712-201908

SEAT HEATER-WITH(FRONT SEAT),IVORY,TRIM0#

main71074-48C60-B2supersedes 71074-48E60-B1i201712-201908

SEAT HEATER-WITH(FRONT SEAT),MOON STONE,TRIM1#

main71074-48C60-C2supersedes 71074-48E60-C3i201712-201908

SEAT HEATER-WITH(FRONT SEAT),BLACK,TRIM2#

main71074-48C60-E2supersedes 71074-48C50-E2i201712-201908

SEAT HEATER-WITH(FRONT SEAT),NOBLE BROWN,TRIM4#

main71074-48C60-F2supersedes 71074-48C50-F2i201712-201908

SEAT HEATER-WITH(FRONT SEAT),TOPAZ BROWM,TRIM5#

main71074-48C70-A4supersedes 71074-48E60-A3i201712-201908

"VERSION L"*(L)&SEAT HEATER-WITH(FRONT SEAT & REAR NO.1 SEAT),IVORY,TRIM0#

main71074-48C70-B0supersedes 71074-48E60-B1i201712-201908

"VERSION L"*(L)&SEAT HEATER-WITH(FRONT SEAT & REAR NO.1 SEAT),MOON STONE,TRIM1#

main71074-48C70-C2supersedes 71074-48E60-C3i201712-201908

"VERSION L"*(L)&SEAT HEATER-WITH(FRONT SEAT & REAR NO.1 SEAT),BLACK,TRIM2#

main71074-48C70-E2supersedes 71074-48C50-E2i201712-201908

"VERSION L"*(L)&SEAT HEATER-WITH(FRONT SEAT & REAR NO.1 SEAT),NOBLE BROWN,TRIM4#

main71074-48C70-F2supersedes 71074-48C50-F2i201712-201908

"VERSION L"*(L)&SEAT HEATER-WITH(FRONT SEAT & REAR NO.1 SEAT),TOPAZ BROWN,TRIM5#

main71074-48E60-C4i202107

KOREA SPEC&REAR NO.1 SEAT-BENCH SEAT,BLACK/BLUE,TRIM7#

main71074-48E60-E0i202007

REAR NO.1 SEAT-CAPTAIN SEAT,OCHER,TRIM5#

main71074-48E70-A3supersedes 71074-48E60-A3i201908

SEAT HEATER-WITH(FRONT SEAT),IVORY,TRIM0#

main71074-48E70-B1supersedes 71074-48E60-B1i201908

PREMIUM PACKAGE&REAR NO.1 SEAT-CAPTAIN SEAT&SEAT HEATER-WITH(FRONT SEAT),WHITE ASH,TRIM1#

main71074-48E70-C3supersedes 71074-48E60-C3i201908

PREMIUM PACKAGE&REAR NO.1 SEAT-CAPTAIN SEAT&SEAT HEATER-WITH(FRONT SEAT),BLACK,TRIM2#

main71074-48E70-C5i202107

PREMIUM PACKAGE&SEAT HEATER-WITH(FRONT SEAT),BLACK/BLUE,TRIM7#

main71074-48E70-E2i202007

PREMIUM PACKAGE&SEAT HEATER-WITH(FRONT SEAT),OCHER,TRIM5#

main71074-48E80-A3supersedes 71074-48E60-A3i201908

PREMIUM PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH),IVORY,TRIM0#

main71074-48E80-B1supersedes 71074-48E60-B1i201908

PREMIUM PACKAGE&REAR NO.1 SEAT-CAPTAIN SEAT&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH),WHITE ASH,TRIM1#

main71074-48E80-C2i201908

PREMIUM PACKAGE&REAR NO.1 SEAT-CAPTAIN SEAT&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH),BLACK,TRIM2#

main71074-48E80-C3i202107

PREMIUM PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH),BLACK/BLUE,TRIM7#

main71074-48E80-E3supersedes 71074-48C50-E2i201908

REAR NO.1 SEAT-CAPTAIN SEAT&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH),NOBLE BROWN,TRIM4#

main71074-48E80-E4supersedes 71074-48C50-F2i201908

PREMIUM PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH),OCHER,TRIM5#

main71074-48E90-A4i201908

KOREA SPEC&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH)&SEAT HEATER-WITH(FRONT SEAT),IVORY,TRIM0#

main71074-48E90-B1i201908

SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH)&SEAT HEATER-WITH(FRONT SEAT),WHITE ASH,TRIM1#

main71074-48E90-C2supersedes 71074-48E60-C3i201908

KOREA SPEC&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH)&SEAT HEATER-WITH(FRONT SEAT& REAR NO.1 SEAT),BLACK,TRIM2#

main71074-48E90-C3i202107

PREMIUM PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH)&SEAT HEATER-WITH(FRONTSEAT & REAR NO.1 SEAT),BLACK/BLUE,TRIM7#

main71074-48E90-E3i201908

KOREA SPEC&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH)&SEAT HEATER-WITH(FRONT SEAT),NOBLE BROWN,TRIM4#

main71074-48E90-E4supersedes 71074-48C50-F2i201908

REAR NO.1 SEAT-CAPTAIN SEAT&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH)&SEAT HEATER-WITH(FRONT SEAT),OCHER,TRIM5#

main71074-48F10-A3supersedes 71074-48E60-A3i201908

"VERSION L"*(L)&SEAT COVER MATERIAL-NATURAL LEATHER(SEMIANILIN)&SEAT HEATER-WITH(FRONT SEAT & REAR NO.1 SEAT),IVORY,TRIM0#

main71074-48F10-B1supersedes 71074-48E60-B1i201908

KOREA SPEC&"VERSION L"*(L)&SEAT COVER MATERIAL-NATURAL LEATHER(SEMIANILIN)&SEAT HEATER-WITH(FRONT SEAT & REAR NO.1 SEAT),WHITE ASH,TRIM1#

main71074-48F10-C2supersedes 71074-48E60-C3i202007

"VERSION L"*(L)&SEAT COVER MATERIAL-NATURAL LEATHER(SEMIANILIN)&SEAT HEATER-WITH(FRONT SEAT),BLACK,TRIM2#

main71074-48F10-E2supersedes 71074-48C50-E2i201908

KOREA SPEC&"VERSION L"*(L)&REAR NO.1 SEAT-BENCH SEAT&SEAT COVER MATERIAL-NATURAL LEATHER(SEMIANILIN)&SEAT HEATER-WITH(FRONT SEAT & REAR NO.1 SEAT),NOBLE BROWN,TRIM4

main71074-48F10-E3supersedes 71074-48C50-F2i201908

KOREA SPEC&"VERSION L"*(L)&SEAT COVER MATERIAL-NATURAL LEATHER(SEMIANILIN)&SEAT HEATER-WITH(FRONT SEAT & REAR NO.1 SEAT),OCHER,TRIM5#

71512SPAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)

main71512-48280i201908

PREMIUM PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH)&SEAT HEATER-WITH(FRONTSEAT)

main71512-48310supersedes 71512-48270i201908

KOREA SPEC&"VERSION L"*(L)&SEAT COVER MATERIAL-NATURAL LEATHER(SEMIANILIN)&SEAT HEATER-WITH(FRONT SEAT & REAR NO.1 SEAT)

71537HPROTECTOR, FRONT SEAT CUSHION EDGE, RH(FOR LH SEAT)

main71537-42010-C0i201908-202007

BLACK,TRIM00,02,04,1#,2#,4#,5#,7#

main71537-42010-E0i201908-202007

NOBLE BROWN,TRIM02,04

71538BPROTECTOR, FRONT SEAT CUSHION EDGE, LH(FOR LH SEAT)

main71538-42010-C0i201712-201908

BLACK,TRIM1#,2#,4#

main71538-42010-E0i201712-201908

NOBLE BROWN,TRIM0#,5#

71552SPAD, FRONT SEATBACK, LH(FOR SEPARATE TYPE)

main71552-48210supersedes 71552-48200i201908

PREMIUM PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH)&SEAT HEATER-WITH(FRONTSEAT)

71587PROTECTOR, FRONT SEATBACK EDGE

main71587-52030×2i201908

71587BPROTECTOR, FRONT SEATBACK EDGE

main71587-52030×2i201712-201908

71706BOARD SUB-ASSY, FRONT SEATBACK, LH

main71705-48150-C0i201908-202007

BLACK,TRIM00,02,04,1#,2#,4#,5#

main71705-48150-E0i201712-201908

NOBLE BROWN,TRIM0#,5#,6#

main71705-48170-C0i202007

BLACK,TRIM0#,1#,2#,4#,5#,7#

71759DHOOK, FRONT SEATBACK, NO.2

main71759-47011×2i201908

71812DSHIELD, FRONT SEAT CUSHION, LH

main71812-48180-C0i201908-202007

BLACK,TRIM00,02,04,1#,2#,4#,5#,7#

main71812-48180-E0i201712-201908

NOBLE BROWN,TRIM0#,5#

main71812-48190-C0supersedes 71812-48180-C0i202007

"VERSION L"*(L)&SEAT COVER MATERIAL-NATURAL LEATHER(SEMIANILIN)&SEAT HEATER-WITH(FRONT SEAT),BLACK,TRIM0#,1#,2#,4#,5#

main71812-48190-E0i201908-202007

KOREA SPEC&"VERSION L"*(L)&REAR NO.1 SEAT-BENCH SEAT&SEAT COVER MATERIAL-NATURAL LEATHER(SEMIANILIN)&SEAT HEATER-WITH(FRONT SEAT & REAR NO.1 SEAT),NOBLE BROWN,TRIM0

71812SCLIP, FRONT SEAT CUSHION SHIELD, LH

main71769-47020i201712-201908

71849CAP, SEAT ADJUSTER COVER, LH

main71848-76010×2i201908

71862SHIELD, FRONT SEAT CUSHION, INNER LH

main71862-42080-C0i201712-201908

BLACK,TRIM1#,2#,4#

main71862-42080-E0i201712-201908

NOBLE BROWN,TRIM0#,5#

71867BCLIP(FOR FRONT SEAT CUSHION INNER SHIELD)

main71769-47020×2i201908

71868ASHIELD, FRONT SEAT CUSHION, INNER NO.1 LH

main71868-48050-C0i202007

BLACK,TRIM0#,1#,2#,4#,5#,7#

main71868-48050-E0i201908-202007

NOBLE BROWN,TRIM02,04

main71868-48060-C0supersedes 71868-48050-C0i202007

"VERSION L"*(L)&SEAT COVER MATERIAL-NATURAL LEATHER(SEMIANILIN)&SEAT HEATER-WITH(FRONT SEAT),BLACK,TRIM0#,1#,2#,4#,5#

main71868-48060-E0i201908-202007

KOREA SPEC&"VERSION L"*(L)&REAR NO.1 SEAT-BENCH SEAT&SEAT COVER MATERIAL-NATURAL LEATHER(SEMIANILIN)&SEAT HEATER-WITH(FRONT SEAT & REAR NO.1 SEAT),NOBLE BROWN,TRIM0

71873SHIELD, FRONT SEAT CUSHION, LOWER RH

main71873-78010i201712-201908

71873ASHIELD, FRONT SEAT CUSHION, LOWER

main71873-60030i201712-201908

71874SHIELD, FRONT SEAT CUSHION, LOWER LH

main71874-78010i201908

71874ASHIELD, FRONT SEAT CUSHION, LOWER LH

main71874-78020i201712-201908

71910AHEADREST ASSY, FRONT SEAT

main71910-48840-A2×2supersedes 71910-48C60-A5i201712-201908

"VERSION L"*(L)&SEAT HEATER-WITH(FRONT SEAT & REAR NO.1 SEAT),IVORY,TRIM0#

main71910-48840-B0×2supersedes 71910-48C60-B1i201712-201908

"VERSION L"*(L)&SEAT HEATER-WITH(FRONT SEAT & REAR NO.1 SEAT),MOON STONE,TRIM1#

main71910-48840-C1×2supersedes 71910-48830-C2i201712-201908

"VERSION L"*(L)&SEAT HEATER-WITH(FRONT SEAT & REAR NO.1 SEAT),BLACK,TRIM2#

main71910-48840-E1×2supersedes 71910-48830-E2i201712-201908

"VERSION L"*(L)&SEAT HEATER-WITH(FRONT SEAT & REAR NO.1 SEAT),NOBLE BROWN,TRIM4#

main71910-48840-F1×2supersedes 71910-48830-F2i201712-201908

"VERSION L"*(L)&SEAT HEATER-WITH(FRONT SEAT & REAR NO.1 SEAT),TOPAZ BROWN,TRIM5#

main71910-48C60-E4×2i202007

PREMIUM PACKAGE&SEAT HEATER-WITH(FRONT SEAT),OCHER,TRIM5#

main71910-48C70-A3×2supersedes 71910-48C60-A5i201908

REAR NO.1 SEAT-CAPTAIN SEAT&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH)&SEAT HEATER-WITH(FRONT SEAT),IVORY,TRIM0#

main71910-48C70-B1×2i201908

SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH),WHITE ASH,TRIM1#

main71910-48C70-C2×2supersedes 71910-48C60-C5i201908

PREMIUM PACKAGE&REAR NO.1 SEAT-CAPTAIN SEAT&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH),BLACK,TRIM2#,7#

main71910-48C70-E5×2i201908

PREMIUM PACKAGE&REAR NO.1 SEAT-CAPTAIN SEAT&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH),NOBLE BROWN,TRIM4#

main71910-48C70-E6×2supersedes 71910-48830-F2i201908

REAR NO.1 SEAT-CAPTAIN SEAT&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH)&SEAT HEATER-WITH(FRONT SEAT),OCHER,TRIM5#

main71910-48C80-A4×2supersedes 71910-48C60-A5i201908

"VERSION L"*(L)&SEAT COVER MATERIAL-NATURAL LEATHER(SEMIANILIN)&SEAT HEATER-WITH(FRONT SEAT & REAR NO.1 SEAT),IVORY,TRIM0#

main71910-48C80-B1×2supersedes 71910-48C60-B1i201908

KOREA SPEC&"VERSION L"*(L)&SEAT COVER MATERIAL-NATURAL LEATHER(SEMIANILIN)&SEAT HEATER-WITH(FRONT SEAT & REAR NO.1 SEAT),WHITE ASH,TRIM1#

main71910-48C80-C2×2supersedes 71910-48830-C2i202007

"VERSION L"*(L)&SEAT COVER MATERIAL-NATURAL LEATHER(SEMIANILIN)&SEAT HEATER-WITH(FRONT SEAT),BLACK,TRIM2#

main71910-48C80-E4×2supersedes 71910-48830-E2i201908

KOREA SPEC&"VERSION L"*(L)&REAR NO.1 SEAT-BENCH SEAT&SEAT COVER MATERIAL-NATURAL LEATHER(SEMIANILIN)&SEAT HEATER-WITH(FRONT SEAT & REAR NO.1 SEAT),NOBLE BROWN,TRIM4

main71910-48C80-E5×2supersedes 71910-48830-F2i201908

KOREA SPEC&"VERSION L"*(L)&SEAT COVER MATERIAL-NATURAL LEATHER(SEMIANILIN)&SEAT HEATER-WITH(FRONT SEAT & REAR NO.1 SEAT),OCHER,TRIM5#

71931SUPPORT, FRONT SEAT HEADREST

main71930-47020-A4×2i201712-201908

W(LOCK),IVORY,TRIM0#

main71930-47020-C4×2i201712-201908

W(LOCK),BLACK,TRIM2#,4#

main71930-47020-L1×2i201712-201908

W(LOCK),NOBLE BROWN,TRIM5#

main71930-47020-P2×2i201712-201908

W(LOCK),MOON STONE,TRIM1#

main71931-47020-A4×2supersedes 71931-47020-A4i201712-201908

W/O(LOCK),IVORY,TRIM0#

main71931-47020-C4×2supersedes 71931-47020-C4i201712-201908

W/O(LOCK),BLACK,TRIM2#,4#

main71931-47020-L1×2i201712-201908

W/O(LOCK),NOBLE BROWN,TRIM5#

main71931-47020-P2×2i201712-201908

W/O(LOCK),MOON STONE,TRIM1#

72020ADJUSTER ASSY, FRONT SEAT, LH

main72020-48241supersedes 72020-48280i201908

KOREA SPEC&"VERSION L"*(L)&REAR NO.1 SEAT-BENCH SEAT&SEAT COVER MATERIAL-NATURAL LEATHER(SEMIANILIN)&SEAT HEATER-WITH(FRONT SEAT & REAR NO.1 SEAT)

72124COVER, SEAT TRACK BRACKET, OUTER FRONT LH

main72124-48120-C0i202007

BLACK,TRIM0#,1#,2#,4#,5#,7#

main72124-48120-E0i201908-202007

NOBLE BROWN,TRIM00,02,04

72128ACOVER, SEAT TRACK BRACKET, INNER FRONT LH

main72128-48090-C0i202007

BLACK,TRIM0#,1#,2#,4#,5#,7#

main72128-48090-E0i201908-202007

NOBLE BROWN,TRIM00,02,04

72138JCOVER, FRONT SEAT TRACK, LH REAR OUTER

main72138-48120-C0i202007

BLACK,TRIM0#,1#,2#,4#,5#,7#

main72138-48120-E0i201712-201908

NOBLE BROWN,TRIM0#,5#,6#

72158COVER, SEAT TRACK BRACKET, INNER LH

main72158-48120-C0i202007

BLACK,TRIM0#,1#,2#,4#,5#,7#

main72158-48120-E0i201908-202007

NOBLE BROWN,TRIM00,02,04

72760DADJUSTER ASSY, LUMBAR SUPPORT, LH

main72750-48050supersedes 72750-48060i201712-201908

"VERSION L"*(L)&SEAT HEATER-WITH(FRONT SEAT & REAR NO.1 SEAT)

73920AAIRBAG ASSY, FRONT SEAT, LH

main73920-48050i201712-201908

79977HFELT, FRONT SEATBACK, LH

main79977-78010i201908

8202

8401

8421

85860BBLOWER ASSY, SEAT CUSHION CLIMATE CONTROL, LH

main85860-48020i201712-201908

PREMIUM PACKAGE&SEAT HEATER-WITH(FRONT SEAT & REAR NO.1 SEAT)

85866DUCT, SEAT CUSHION CLIMATE CONTROL, RH

main85866-48010i201712-201908

"VERSION L"*(L)&SEAT HEATER-WITH(FRONT SEAT & REAR NO.1 SEAT)

85866ADUCT, SEAT CUSHION CLIMATE CONTROL, LH

main85866-48010i201908

PREMIUM PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH)&SEAT HEATER-WITH(FRONTSEAT)

85867BLOWER, SEATBACK CLIMATE CONTROL, RH

main85867-48030i201908

PREMIUM PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH)&SEAT HEATER-WITH(FRONTSEAT)

85867ABLOWER, SEATBACK CLIMATE CONTROL, LH

main85867-48040i201712-201908

PREMIUM PACKAGE&SEAT HEATER-WITH(FRONT SEAT & REAR NO.1 SEAT)

85868BRACKET, SEAT CUSHION CLIMATE CONTROL, RH

main85868-48010i201712-201908

PREMIUM PACKAGE&SEAT HEATER-WITH(FRONT SEAT & REAR NO.1 SEAT)

85868ABRACKET, SEAT CUSHION CLIMATE CONTROL, LH

main85868-48010i201712-201908

PREMIUM PACKAGE&SEAT HEATER-WITH(FRONT SEAT & REAR NO.1 SEAT)

87501BCONTROL SUB-ASSY, SEAT HEATER, LH

main87501-48030i201908

PREMIUM PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH)&SEAT HEATER-WITH(FRONTSEAT)

87510LHEATER ASSY, FRONT SEAT CUSHION, LH

main87510-48200i201712-201807

"VERSION L"*(L)&SEAT HEATER-WITH(FRONT SEAT & REAR NO.1 SEAT)

main87510-48201i201908

PREMIUM PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH)&SEAT HEATER-WITH(FRONTSEAT)

87510NHEATER ASSY, FRONT SEATBACK, LH

main87530-48070i202007

"VERSION L"*(L)&SEAT COVER MATERIAL-NATURAL LEATHER(SEMIANILIN)&SEAT HEATER-WITH(FRONT SEAT)

9008016099

main90080-16099

9011910601

main90119-10601

9011910927

main90119-10927

9354114006

main93541-14006

9356855016

main93568-55016

9417060600

main94170-60600

9418560600

main94185-60600

53 parts on this diagram · 9 diagrams in section
