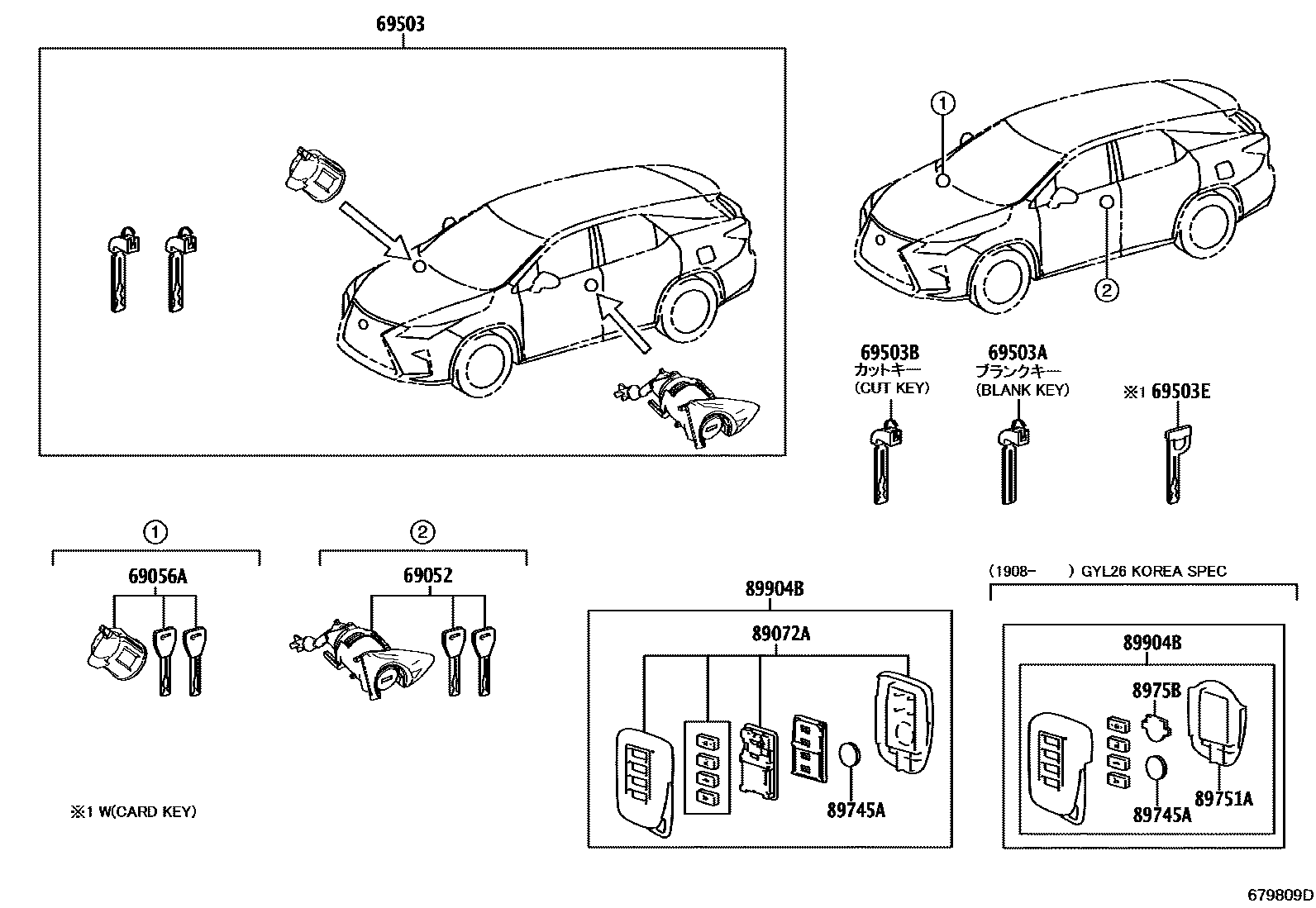

LOCK CYLINDER SET

69052CYLINDER & KEY SET, DOOR LOCK, LH

main69052-48100iGGL2#,GYL26201712-201908

main69052-48101iGGL2#,GYL26201908

69056ACYLINDER & KEY SET, GLOVE COMPARTMENT LOCK

main69056-50160iGGL2#,GYL26201712-201908

69503CYLINDER SET, LOCK

main69005-48570iGGL2#,GYL26201712-201908

main69005-48571iGGL2#,GYL26201908

69503AKEY, BLANK

main69515-30380iGGL2#,GYL26201712-201908

MASTER KEY,W(*68)

69503BKEY, CUT

main69515-30370×2iGGL2#,GYL26201712-201908

MASTER KEY,W(*68)

69503EKEY, BLANK(CARD KEY)

main69515-30350iGGL2#,GYL26201908

MASTER KEY

89072AHOUSING SET, DOOR CONTROL TRANSMITTER

main89072-48550×2iGGL2#201712-201908

main89072-48560×2iGYL26201712-201908

main89072-48F90×2iGGL2#202007

main89072-48J60×2iGYL26202007

89745ABATTERY, TRANSMITTER

main89745-45010iGGL2#,GYL26201712-201908

CR2032

main89745-50020iGGL2#,GYL26201908

CR2032

89751ACOVER, TRANSMITTER HOUSING

main89751-48370×2iGYL26201908

KOREA SPEC

8975BCOVER, TRANSMITTER BATTERY HOUSING

main8975B-33010×2iGYL26201908

KOREA SPEC

89904BTRANSMITTER SUB-ASSY, ELECTRICAL KEY

main89904-48C30×2iGGL2#201908-202007

main89904-48V80×2iGGL2#202007-202107

main89904-48Z40×2iGYL26202007-202107

main8990H-48100×2iGGL2#202107

main8990H-48110×2supersedes 89904-48L90iGYL26202107

main89904-48L10×2supersedes 89904-48L90iGYL26201908-202007

KOREA SPEC

main89904-48U70×2iGYL26202007

KOREA SPEC

11 parts on this diagram · 1 diagram in section
