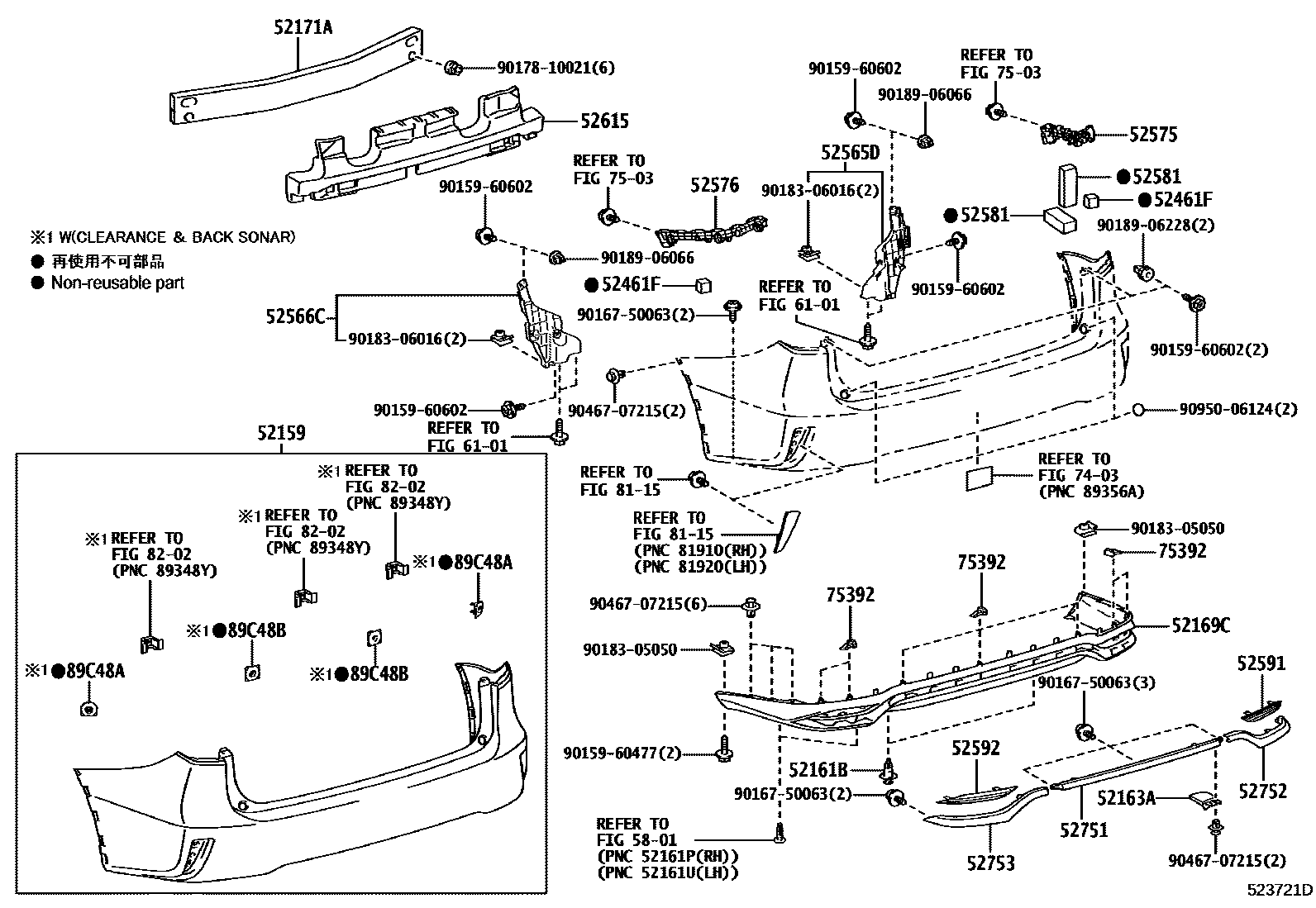

REAR BUMPER & BUMPER STAY
52159COVER, REAR BUMPER
PAINT REQ.,CLEARANCE & BACK SONAR-WITH(*ICS & *RCTB); PAINT REQ.,CLEARANCE & BACK SONAR-WITH(INTELLIGENT CLEARANCE SONAR)
PAINT REQ.,CLEARANCE & BACK SONAR-WITH(*ICS & *RCTB); PAINT REQ.,CLEARANCE & BACK SONAR-WITH(INTELLIGENT CLEARANCE SONAR)
PAINT REQ.,PARKING SUPPORT ALART/BRAKE-WITH(CLEARANCE & BACK SONAR),W(*HPBD)
52161BPIECE, REAR BUMPER
52163APLATE, REAR BUMPER, RH
52169CCOVER, REAR BUMPER, LOWER
NO PAINT REQ.
NO PAINT REQ.
52171AREINFORCEMENT, REAR BUMPER, NO.1
52461FPAD, REAR BUMPER
52565DRETAINER, REAR BUMPER, LOWER RH
52566CRETAINER, REAR BUMPER, LOWER LH
52575RETAINER, REAR BUMPER SIDE, RH
52576RETAINER, REAR BUMPER SIDE, LH
52581PROTECTOR, REAR BUMPER, RH
52591SEAL, REAR BUMPER SIDE, RH
52592SEAL, REAR BUMPER SIDE, LH
52615ABSORBER, REAR BUMPER ENERGY
KOREA SPEC
52751MOULDING, REAR BUMPER
PLATED
52752MOULDING, REAR BUMPER SIDE, RH
PLATED
52753MOULDING, REAR BUMPER SIDE, LH
PLATED
5801FLOOR PAN & LOWER BACK PANEL
6101SIDE MEMBER
7403CAUTION PLATE (EXTERIOR & INTERIOR)
7503SIDE MOULDING
75392RETAINER, OUTSIDE MOULDING
8115REFLEX REFLECTOR
8202WIRING & CLAMP
89C48ARETAINER, ULTRASONIC SENSOR, REAR CORNER
CLEARANCE & BACK SONAR-WITH(*ICS & *RCTB); CLEARANCE & BACK SONAR-WITH(INTELLIGENT CLEARANCE SONAR)
PARKING SUPPORT ALART/BRAKE-WITH(CLEARANCE & BACK SONAR)&LANE CHANGE ASSIST-WITH(*BSM & REAR CROSS TRAFFIC ALERT)
89C48BRETAINER, ULTRASONIC SENSOR, REAR CENTER
CLEARANCE & BACK SONAR-WITH(*ICS & *RCTB); CLEARANCE & BACK SONAR-WITH(INTELLIGENT CLEARANCE SONAR)
PARKING SUPPORT ALART/BRAKE-WITH(CLEARANCE & BACK SONAR)&LANE CHANGE ASSIST-WITH(*BSM & REAR CROSS TRAFFIC ALERT)
9015960477
main90159-60477
9015960602
main90159-60602
9016750063
main90167-50063
9017810021
main90178-10021
9018305050
main90183-05050
9018306016
main90183-06016
9018906066
main90189-06066
9018906228
main90189-06228
9046707215
main90467-07215
9095006124
main90950-06124
36 parts on this diagram · 2 diagrams in section
