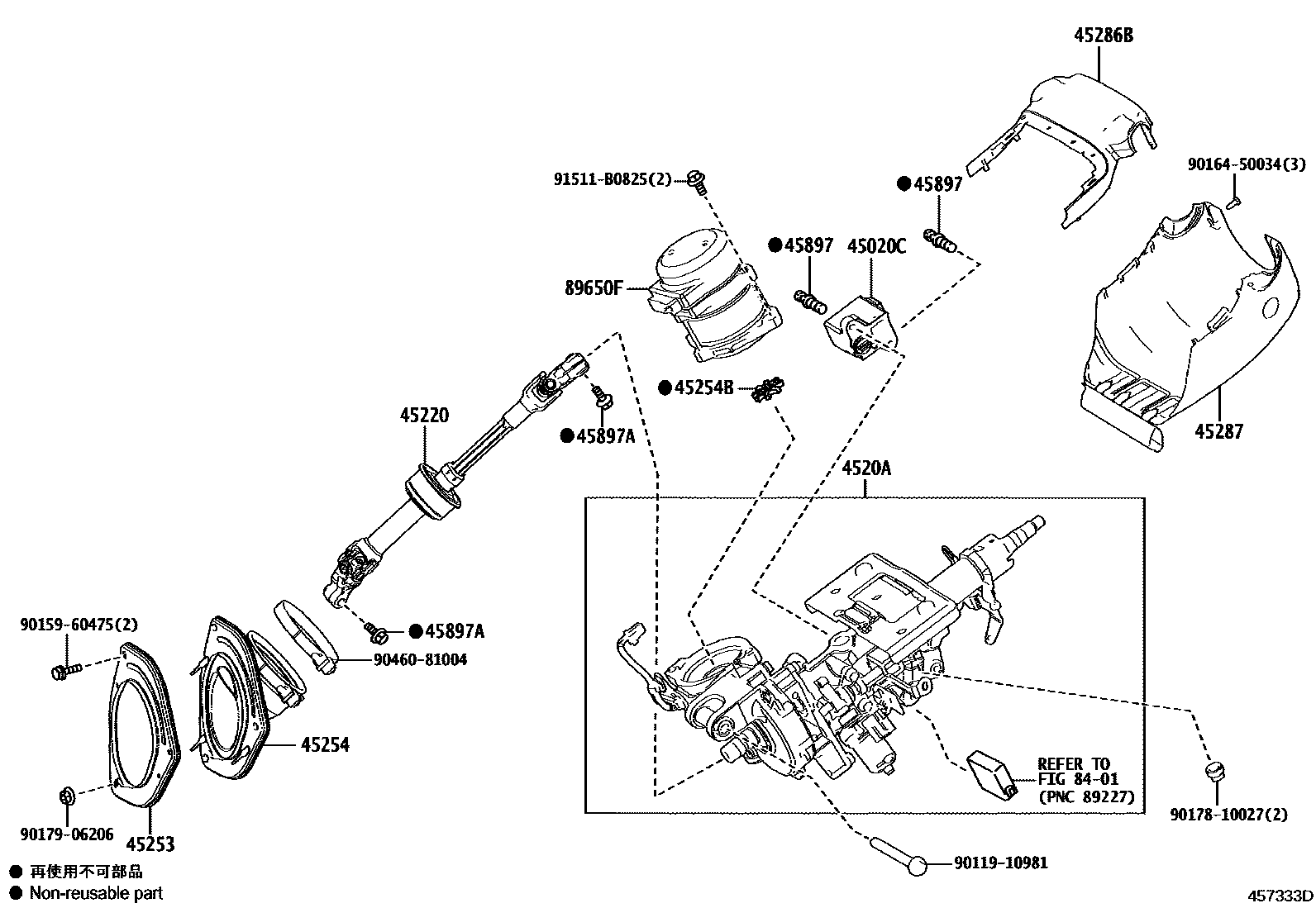

STEERING COLUMN & SHAFT

45020CACTUATOR ASSY, STEERING LOCK(W/ECU)

main45020-48090iGGL2#,GYL26201908

4520ACOLUMN SUB-ASSY, ELECTRIC POWER STEERING

main4520A-48080iGGL2#,GYL26201712-201908

45220SHAFT ASSY, STEERING INTERMEDIATE

main45220-48250iGGL2#,GYL26201712-201908

45253COVER, STEERING COLUMN HOLE

main45253-48050iGGL2#,GYL26201712-201908

45254SHIELD, STEERING COLUMN HOLE

main45254-48090iGGL2#,GYL26201712-201908

45254BDAMPER, ELECTRIC POWER STEERING MOTOR SHAFT

main45254-28040iGGL2#,GYL26201712-201908

45286BCOVER, STEERING COLUMN, UPR

main45286-33270-C0iGGL2#,GYL26201908-202007

BLACK,TRIM00,02,04,1#,2#,4#,5#,7#

main45286-33270-E1iGGL2#,GYL26201908-202007

NOBLE BROWN,TRIM00,02,04

45287COVER, STEERING COLUMN, LWR

main45024-62011-C0iGGL2#,GYL26201908-202007

BLACK,TRIM00,02,04,1#,2#,4#,5#,7#

main45024-62011-E0iGGL2#,GYL26201908-202007

NOBLE BROWN,TRIM00,02,04

main45287-33360-C0iGGL2#,GYL26201712-201908

BLACK,TRIM1#,2#,4#

main45287-33360-E1iGGL2#,GYL26201712-201908

NOBLE BROWN,TRIM0#,5#,6#

45897BOLT, STEERING LOCK SET

main45897-12020×2iGGL2#,GYL26201908

45897ABOLT, TILT STEERING PAWL SET

main90119-10985×2iGGL2#,GYL26201712-201908

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

89650FCOMPUTER ASSY, POWER STEERING W/MOTOR

main89650-48310iGGL2#,GYL26201712-201908

main89650-48A50iGGL2#201908

main89650-48A60iGYL26201908

9011910981

main90119-10981

9015960475

main90159-60475

9016450034

main90164-50034

9017810027

main90178-10027

9017906206

main90179-06206

9046081004

main90460-81004

91511B0825

main91511-B0825

19 parts on this diagram · 1 diagram in section
