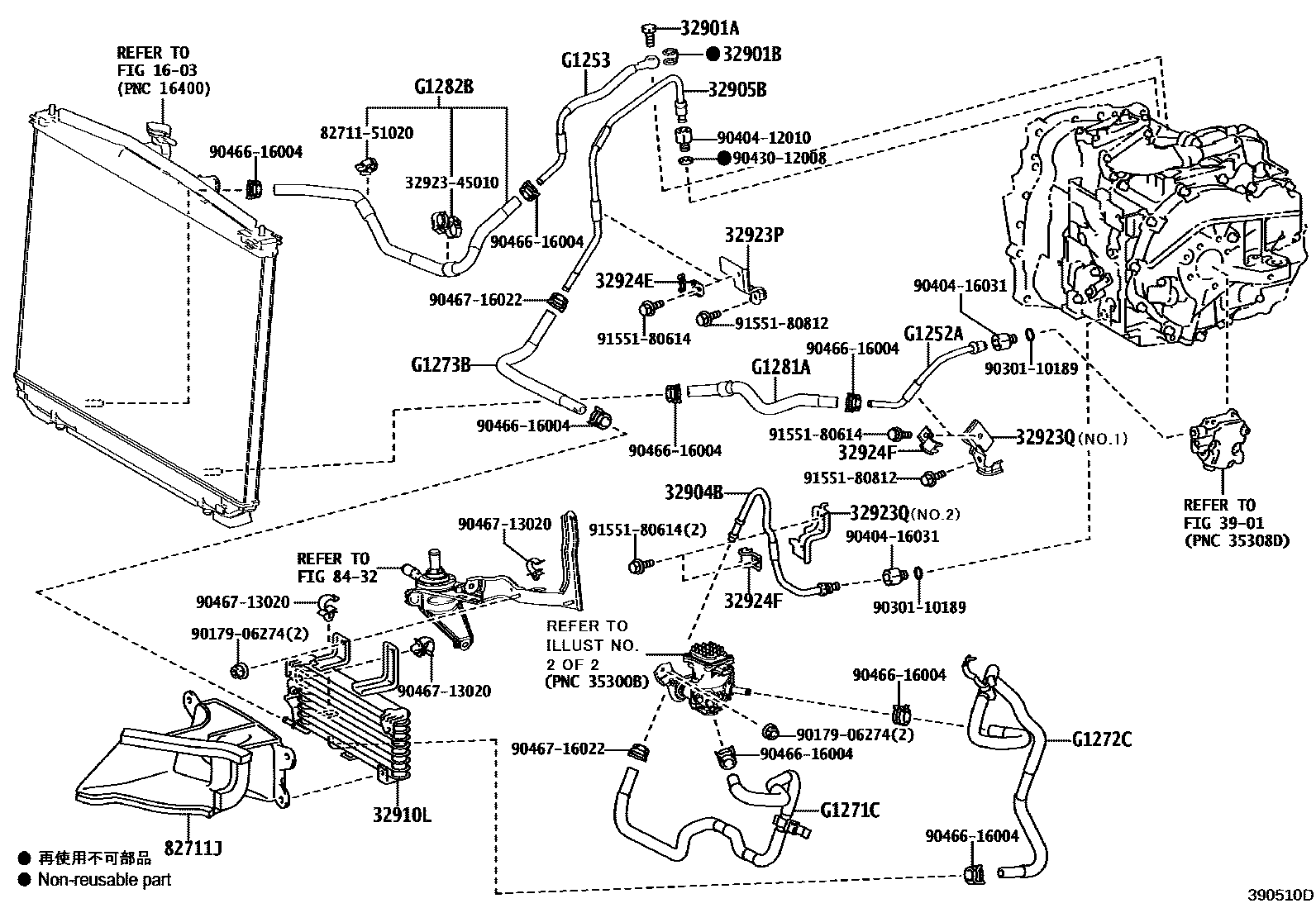

OIL COOLER & TUBE (HEV OR BEV OR FCEV)

0001 1 0002 1 0003 1

1603RADIATOR & WATER OUTLET

→ Go to FIG 16-03

32901ABOLT, UNION(FOR OIL COOLER)

main90401-12039iGYL26201712-201908

32901BGASKET(FOR OIL COOLER UNION)

main90430-12037iGYL26201712-201908

32904BTUBE SUB-ASSY, OIL COOLER INLET

main32904-48160iGYL26201712-201908

32905BTUBE SUB-ASSY, OIL COOLER OUTLET

main32905-48230iGYL26201712-201908

32910LCOOLER ASSY, OIL

main32910-48210iGYL26201712-201908

main32910-48220iGYL26201908

32923PCLAMP, OIL COOLER TUBE, NO.1

main32923-48060iGYL26201712-201908

32923QCLAMP, OIL COOLER TUBE

main32923-48050iGYL26201712-201908

NO.2

main32923-48070iGYL26201712-201908

NO.1

32924ECLAMP, OIL COOLER TUBE, NO.2

main32929-30170iGYL26201712-201908

32924FCLAMP, OIL COOLER TUBE, NO.2

main32924-48010iGYL26201712-201908

3901TRANSAXLE ASSY(HEV OR BEV OR FCEV)

→ Go to FIG 39-01

82711JDUCT, AIR

main32917-48060iGYL26201712-201908

main32917-48080iGYL26201908

8432INVERTER COOLING

→ Go to FIG 84-32

G1252APIPE, MOTOR COOLING, NO.2

mainG125248010iGYL26201712-201908

G1253PIPE, MOTOR COOLING, NO.3

mainG125348010iGYL26201712-201908

G1271CHOSE, MOTOR COOLING, NO.1

mainG127148060iGYL26201712-201908

mainG127148090iGYL26201908

G1272CHOSE, MOTOR COOLING, NO.2

mainG127248060iGYL26201712-201908

mainG127248080iGYL26201908

G1273BHOSE, MOTOR COOLING, NO.3

mainG127348050iGYL26201712-201908

mainG127348060iGYL26201908

G1281AHOSE, MOTOR INLET

mainG128148010iGYL26201712-201908

G1282BHOSE, MOTOR OUTLET

mainG128248010iGYL26201712-201908

3292345010CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE

main32923-45010

8271151020WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-51020

9017906274

main90179-06274

9030110189

main90301-10189

9040412010

main90404-12010

9040416031

main90404-16031

9043012008

main90430-12008

9046616004

main90466-16004

9046713020

main90467-13020

9046716022

main90467-16022

9155180614

main91551-80614

9155180812

main91551-80812

32 parts on this diagram · 3 diagrams in section
