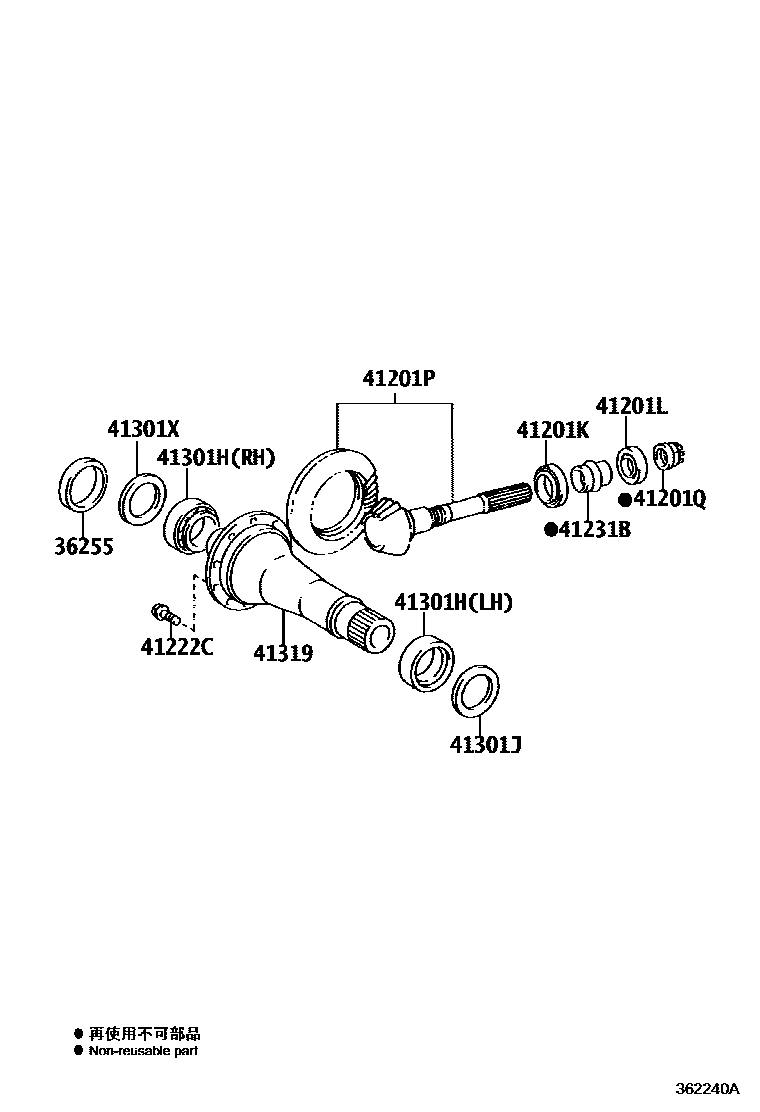

TRANSFER GEAR
36255SPACER, TRANSFER OUTPUT SHAFT, NO.1
41201KBEARING (FOR TRANSFER DRIVEN PINION FRONT)
41201LBEARING (FOR TRANSFER DRIVEN PINION REAR)
41201PGEAR KIT, TRANSFER
41201QNUT (FOR TRANSFER GEAR)
41222CBOLT (FOR TRANSFER RING GEAR)
41231BSPACER, TRANSFER PINION BEARING
41301HBEARING(FOR RING GEAR MOUNTING CASE)
RH
LH
41301JWASHER, PLATE(FOR RING GEAR MOUNTING CASE)
T=1.95
T=1.97
T=1.99
T=2.01
T=2.03
T=2.05
T=2.07
T=2.09
T=2.11
T=2.13
T=2.15
T=2.17
T=2.19
T=2.21
T=2.23
T=2.25
T=2.27
T=2.29
T=2.31
T=2.33
T=2.35
T=2.37
T=2.39
T=2.41
T=2.43
T=2.45
T=2.47
T=2.49
T=2.51
T=2.53
T=2.55
T=2.57
T=2.59
T=2.61
T=2.63
T=2.65
T=2.67
T=2.69
T=2.71
T=2.73
T=2.75
T=2.77
T=2.79
T=2.81
T=2.83
T=2.85
T=2.87
T=2.89
T=2.91
T=2.93
T=2.95
T=2.97
T=2.99
T=3.01
T=3.03
T=3.05
T=3.07
T=3.09
T=3.11
T=3.13
T=3.15
T=3.17
T=3.19
T=3.21
T=3.23
T=3.25
T=3.27
T=3.29
T=3.31
T=3.33
T=3.35
T=3.37
41301XWASHER, TRANSFER RING GEAR MOUNTING CASE, NO.2
T=2.47,MARK G7
T=2.49,MARK G8
T=2.51,MARK G9
T=2.53,MARK H0
T=2.55,MARK H1
T=2.57,MARK H2
T=2.59,MARK H3
T=2.61,MARK H4
T=2.63,MARK H5
T=2.65,MARK H6
T=2.67,MARK H7
T=2.69,MARK H8
T=2.71,MARK H9
T=2.73,MARK J0
T=2.75,MARK J1
T=2.77,MARK J2
T=2.79,MARK J3
T=2.81,MARK J4
T=2.83,MARK J5
T=2.85,MARK J6
T=2.87,MARK J7
T=2.89,MARK J8
T=2.91,MARK J9
T=2.93,MARK K0
T=2.95,MARK K1
T=2.97,MARK K2
T=2.99,MARK K3
T=3.01,MARK K4
T=3.03,MARK K5
T=3.05,MARK K6
T=3.07,MARK K7
T=3.09,MARK K8
T=3.11,MARK K9
T=3.13,MARK L0
T=3.15,MARK L1
T=3.17,MARK L2
T=3.19,MARK L3
T=3.21,MARK L4
T=3.23,MARK L5
T=3.25,MARK L6
T=3.27,MARK L7
T=3.29,MARK L8
T=3.31,MARK L9
T=3.33,MARK M0
T=3.35,MARK M1
T=3.37,MARK M2
T=3.39,MARK M3
T=3.41,MARK M4
T=3.43,MARK M5
T=3.45,MARK M6
T=3.47,MARK M7
T=3.49,MARK M8
T=3.51,MARK M9
T=3.53,MARK N0
T=3.55,MARK N1
T=3.57,MARK N2
T=3.59,MARK N3
T=3.61,MARK N4
T=3.63,MARK N5
T=3.65,MARK N6
T=3.67,MARK N7
T=3.69,MARK N8
T=3.71,MARK N9
T=3.73,MARK P0
T=3.75,MARK P1
T=3.77,MARK P2
T=3.79,MARK P3
T=3.81,MARK P4
T=3.83,MARK P5
T=3.85,MARK P6
T=3.87,MARK P7
T=3.89,MARK P8
T=3.91,MARK P9
T=3.93,MARK Q0
T=3.95,MARK Q1
T=3.97,MARK Q2
T=3.99,MARK Q3
T=4.01,MARK Q4
T=4.03,MARK Q5
T=4.05,MARK Q6
T=4.07,MARK Q7
T=4.09,MARK Q8
T=4.11,MARK Q9
T=4.13,MARK R0
T=4.15,MARK R1
T=4.17,MARK R2
T=4.19,MARK R3
T=4.21 MARK R4
T=4.23 MARK R5
T=4.25 MARK R6
T=4.27 MARK R7
T=4.29 MARK R8
T=4.31 MARK R9
T=4.33 MARK S0
T=4.35 MARK S1
T=4.37 MARK S2
T=4.39 MARK S3
T=4.41 MARK S4
T=4.43 MARK S5
T=4.45 MARK S6
41319CASE, TRANSFER RING GEAR MOUNTING
11 parts on this diagram · 1 diagram in section
