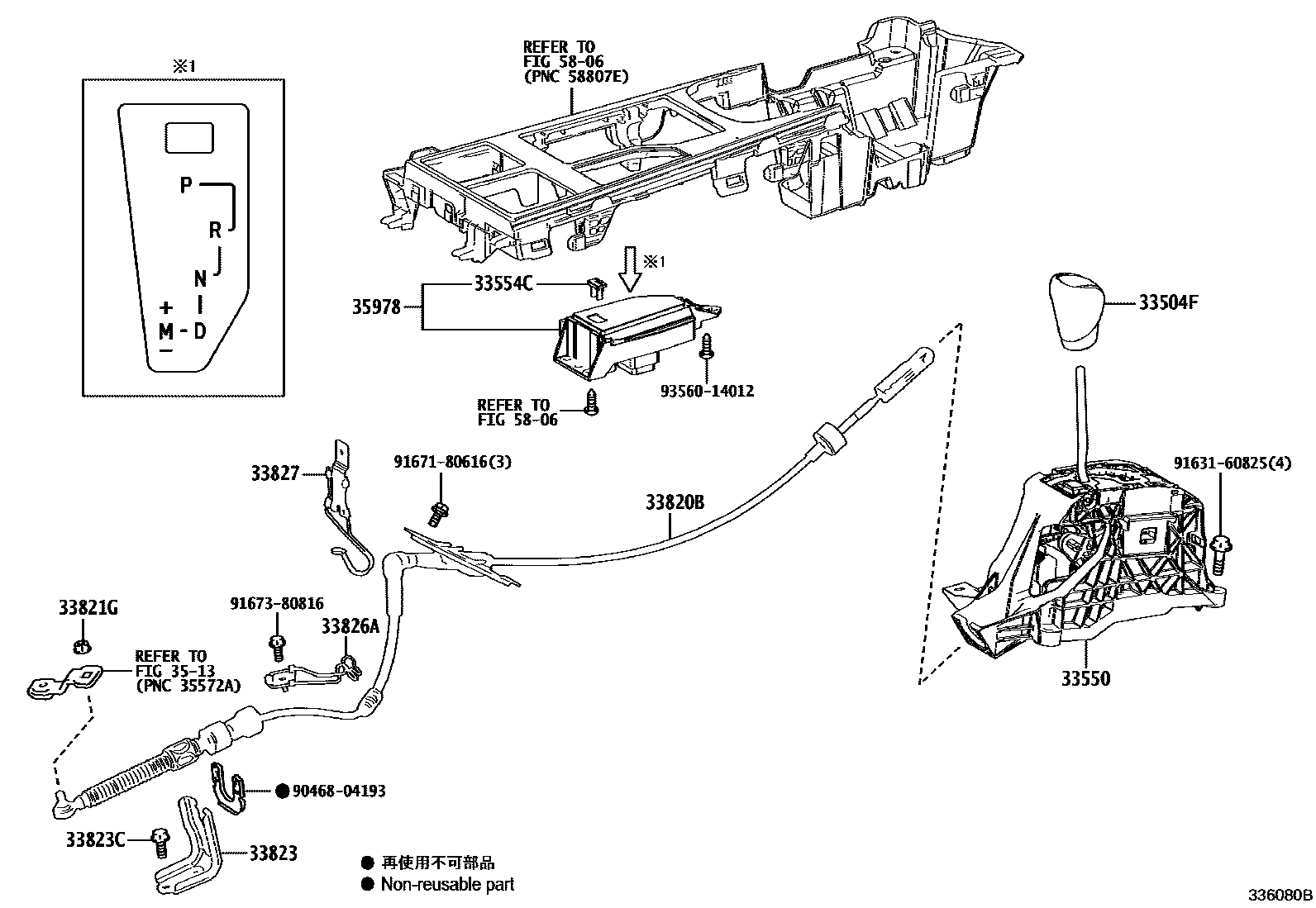

SHIFT LEVER & RETAINER

0001 1 0002 1

33504FKNOB SUB-ASSY, SHIFT LEVER

main33504-48110-C0iGGL2#,GYL26201712-201908

BLACK,TRIM1#,2#,4#

main33504-48110-E0iGGL2#,GYL26201908-202007

NOBLE BROWN,TRIM00,02,04

33550FLOOR SHIFT ASSY, TRANSMISSION

main33550-48531iGGL2#,GYL26201712-201908

33554CCOVER, SHIFT LOCK RELEASE BUTTON

main33554-48090iGGL2#,GYL26201712-201908

33820BCABLE ASSY, TRANSMISSION CONTROL

main33820-48310iGGL2#201712-201908

main33820-48380iGYL26201712-201908

33821GNUT (FOR TRANSMISSION CONTROL CABLE)

main94151-80800iGGL2#,GYL26201712-201908

33823BRACKET, TRANSMISSION CONTROL CABLE, NO.1

main33823-48100iGYL26201712-201908

main33823-48120iGGL2#201908

33823CBOLT (FOR TRANSMISSION CONTROL CABLE BRACKET)

main91671-80816×2iGGL2#,GYL26201712-201908

33826ABRACKET, TRANSMISSION CONTROL CABLE, NO.2

main33826-48110iGGL2#201712-201908

33827BRACKET, TRANSMISSION CONTROL CABLE, NO.3

main33827-48020iGGL2#,GYL26201908

3513THROTTLE LINK & VALVE LEVER (ATM)

→ Go to FIG 35-13

35978INDICATOR, SHIFT POSITION

main35978-48010iGGL2#201908

main35978-48030iGYL26201712-201908

main35978-48050iGGL2#201712-201908

5806CONSOLE BOX & BRACKET

→ Go to FIG 58-06

9046804193

main90468-04193

9163160825

main91631-60825

9167180616

main91671-80616

9167380816

main91673-80816

9356014012

main93560-14012

17 parts on this diagram · 2 diagrams in section
