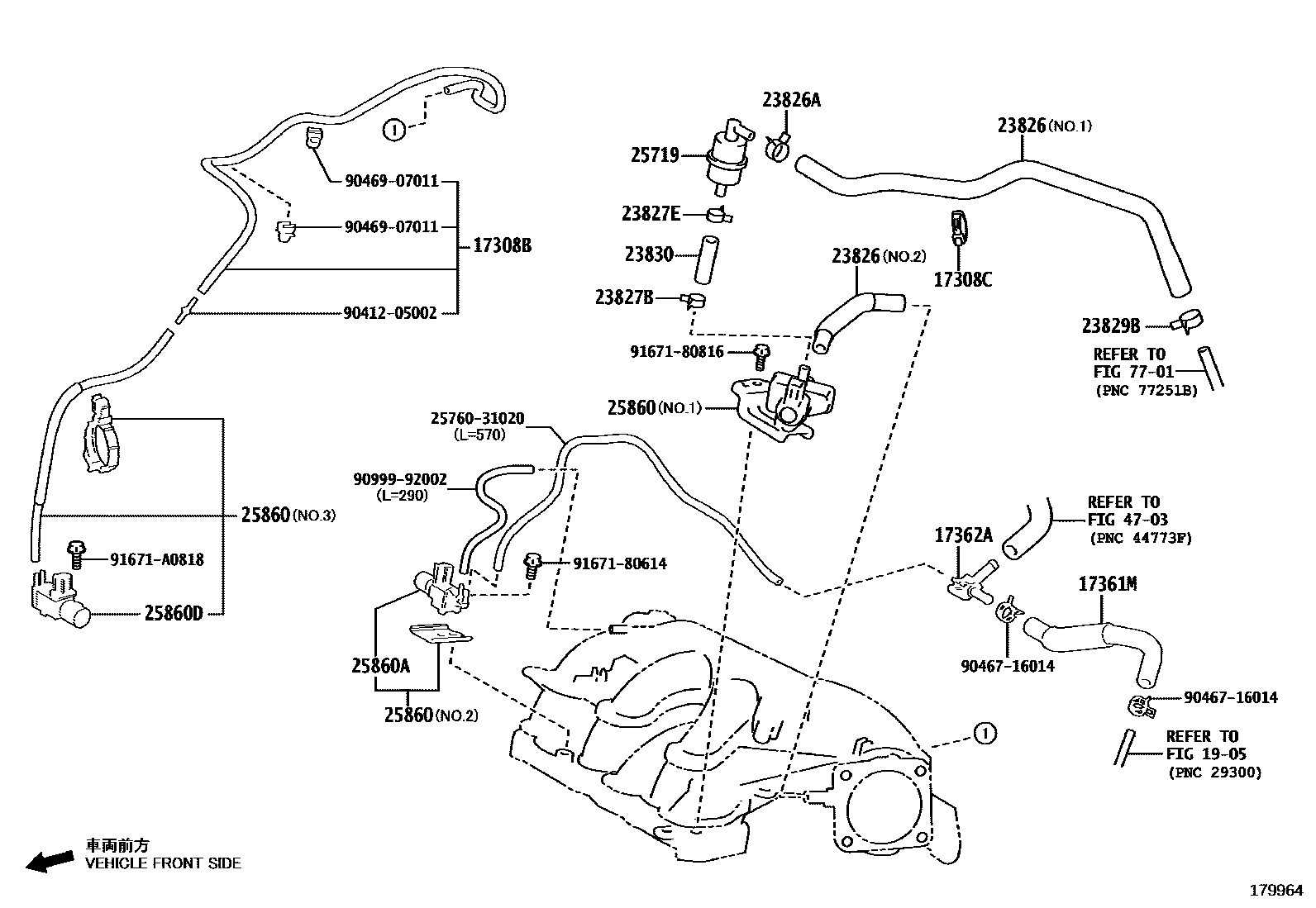

VACUUM PIPING

0001 1 0002 1

17308BHOSE SUB-ASSY, VACUUM

main17308-31090i2GRFKS..GGL2#201712-201908

17308CCLAMP(FOR VACUUM HOSE)

main44753-48360i2GRFKS..GGL2#201712-201908

17361MTUBE, AIR

main17361-31040i2GRFKS..GGL2#201712-201908

17362ATUBE, AIR, NO.2

main17362-31040i2GRFKS..GGL2#201712-201908

1905VACUUM PUMP

→ Go to FIG 19-05

23826HOSE, FUEL VAPOR FEED, NO.1

main23826-31410i2GRFXS..GYL26201712-201908

main23826-31470i2GRFKS..GGL2#201712-201908

NO.1

main23826-31480i2GRFKS..GGL2#201712-201908

NO.2

23826ACLIP(FOR FUEL VAPOR FEED HOSE, NO.1)

main90467-16014i2GRFKS..GGL2#201712-201908

23827BCLIP(FOR FUEL VAPOR FEED HOSE, NO.2)

main96133-41501i2GRFKS..GGL2#201712-201908

23827ECLIP(FOR FUEL VAPOR FEED HOSE, NO.2)

main90467-16014i2GRFKS..GGL2#201712-201908

23829BCLIP(FOR FUEL VAPOR FEED HOSE)

main90466-13005i2GRFXS..GYL26201712-201908

NO.2

main96132-51100i2GRFXS..GYL26201712-201908

NO.1

main96136-41901i2GRFKS..GGL2#201712-201908

23830HOSE ASSY, FUEL VAPOR FEED, NO.2

main23827-31180i2GRFKS..GGL2#201712-201908

25719TANK, VACUUM SURGE

main25719-31070i2GRFKS..GGL2#201712-201908

25860VALVE ASSY, VACUUM SWITCHING, NO.1

main25860-31120i2GRFKS..GGL2#201712-201908

NO.2

main25860-31130i2GRFKS..GGL2#201712-201908

NO.3

main25860-31160i2GRFXS..GYL26201712-201908

NO.1

main25860-31190i2GRFKS..GGL2#201712-201908

NO.1

25860AVALVE, VACUUM SWITCHING, NO.1

main25860-46010i2GRFKS..GGL2#201712-201908

25860DVALVE ASSY, VACUUM SWITCHING, NO.2

main90910-12132i2GRFKS..GGL2#201712-201908

4703BRAKE BOOSTER & VACUUM TUBE

→ Go to FIG 47-03

7701FUEL TANK & TUBE

→ Go to FIG 77-01

2576031020HOSE ASSY, VACUUM TRANSMITTING

main25760-31020

9041205002

main90412-05002

9046716014

main90467-16014

9046907011

main90469-07011

9099992002

main90999-92002

9167180614

main91671-80614

9167180816

main91671-80816

91671A0818

main91671-A0818

25 parts on this diagram · 2 diagrams in section
