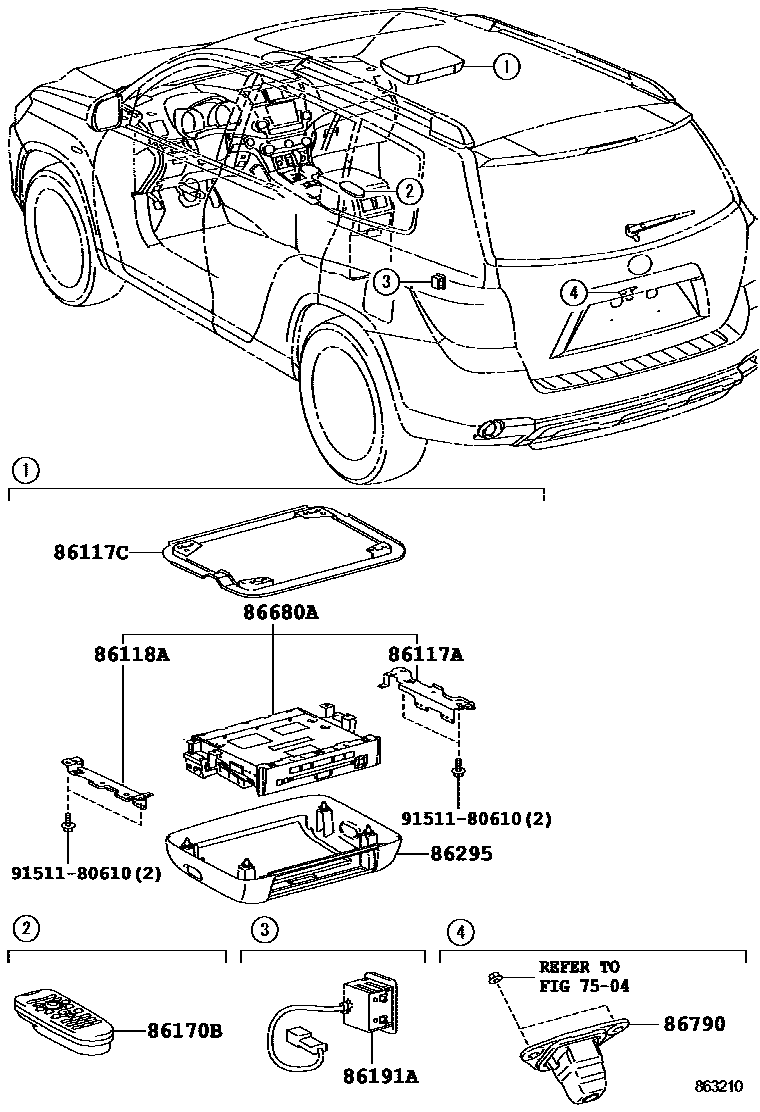

CAMERA & REAR MONITOR DISPLAY

7504REAR MOULDING

→ Go to FIG 75-04

86117ABRACKET, TELEVISION DISPLAY, A

main86117-48100iGVU48201008

TELEVISION & DVD PLAYER-WITH

86117CBRACKET, MULTI-DISPLAY CONTROLLER, NO.2

main86117-48110iGSU4#,MHU48..LIMD,SPO200705-201001

TELEVISION & VTR-WITH

main86117-48111iGSU4#,MHU48..LIMD,SPO201002-201008

TELEVISION & VTR-WITH

86118ABRACKET, TELEVISION DISPLAY, B

main86118-48080iGSU4#,MHU48..LIMD,SPO200705-201008

TELEVISION & VTR-WITH

86170BSWITCH & VOLUME ASSY, TELEVISION

main86170-45020iGSU4#,MHU48..LIMD,SPO200705-201008

TELEVISION & VTR-WITH

86191ATERMINAL, VIDEO(VIDEO ADAPTER)

main86191-48040-C0iGSU4#..LIMD,SPO200705-201007

TELEVISION & VTR-WITH,BLACK,TRIM2#

86295BASE, TELEVISION

main86295-48040-B0iMHU48..LIMD200708-201008

TELEVISION & VTR-WITH,GRAY,TRIM1#

main86295-48040-E0iGSU4#,MHU48..LIMD,SPO200705-201008

TELEVISION & VTR-WITH,SAND BEIGE,TRIM4#

86680ADISPLAY ASSY, TELEVISION

main86680-48050-B0iGVU48201008-201402

MATSUSHITA,TELEVISION & DVD PLAYER-WITH,GRAY,TRIM1#,2#

main86680-48050-E0iGVU48201008-201402

MATSUSHITA,TELEVISION & DVD PLAYER-WITH,SAND BEIGE,TRIM4#

86790CAMERA ASSY, TELEVISION

main86790-48070iMHU48;GSU4#..GD,LIMD,SPO200705-200907

main86790-48130iMHU48;GSU4#..GD,LIMD,SPO200908-201008

9151180610

main91511-80610

10 parts on this diagram · 1 diagram in section
