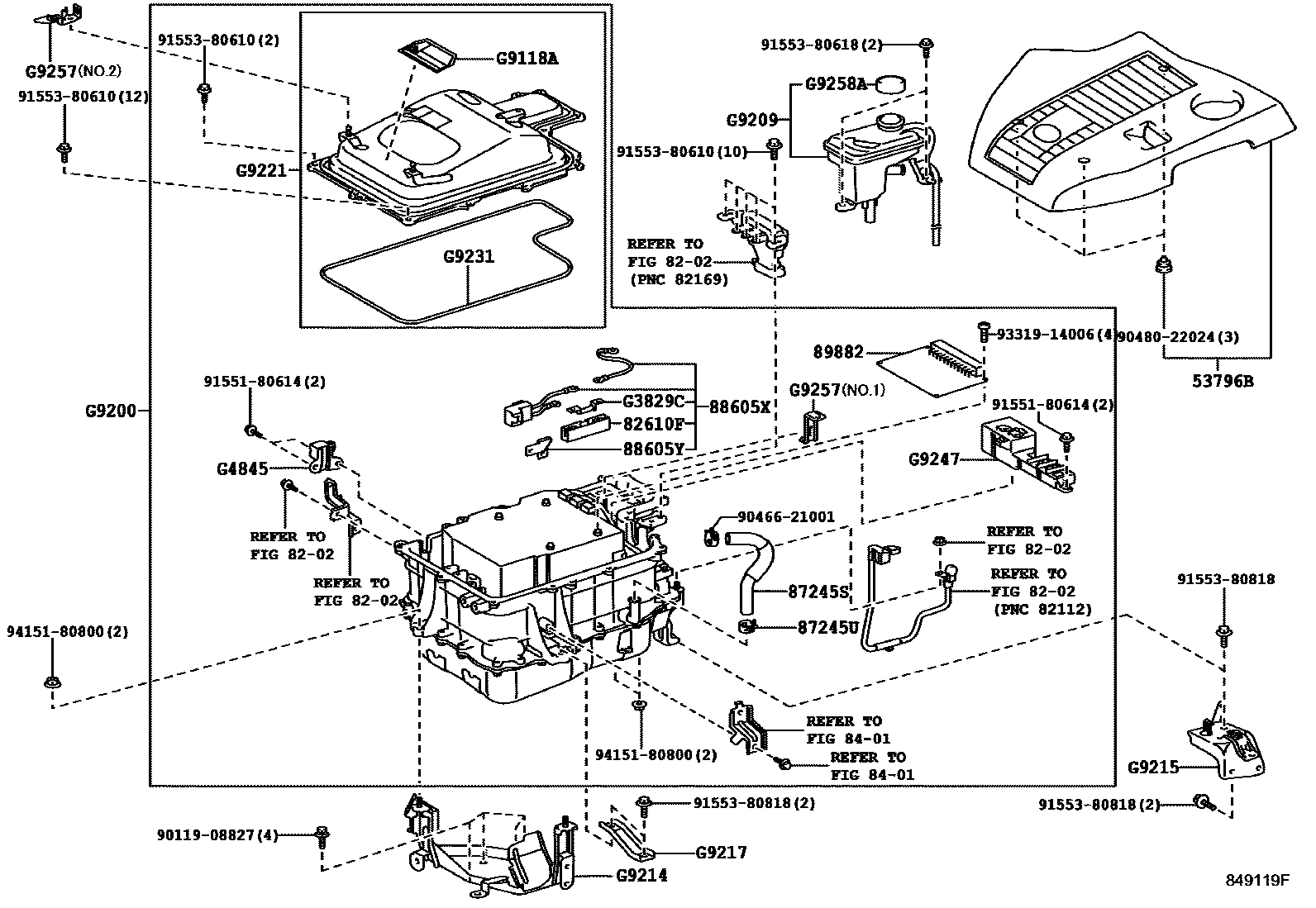

HEV INVERTER

0001 1INVERTER ASSY 0002 1KIT PARTS 0003 1 0004 1 0005 1 0006 1

53796BCOVER, ENGINE ROOM SIDE, LH NO.2

main53796-48060iMHU48200708-201008

8202WIRING & CLAMP

→ Go to FIG 82-02

82610FBLOCK ASSY, FUSE

main82610-48010iMHU48200708-201008

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

87245SHOSE, INVERTER WATER, NO.1

main87245-48700iMHU48200708-201008

87245UCLAMP OR CLIP (FOR WATER HOSE)

main90467-21010iMHU48200708-201008

88605XHARNESS SUB-ASSY, WIRING AIR CONDITIONER

main88605-48011iMHU48200708-201008

88605YBRACKET, COOLER

main88688-48141iMHU48200708-201008

89882COMPUTER, MOTOR GENERATOR CONTROL

main89882-48030iGVU48201008-201402

main89882-48051iMHU48200708-201008

G3829CFUSE, ELECTRIC VEHICLE

mainG382948010iMHU48200708-201008

G4845SENSOR, CIRCUIT BREAKER, NO.1

mainG484548010iMHU48200708-201008

G9118ALABEL, HV MOTOR CONTROL INVERTER CAUTION

mainG911830020iMHU48200708-201008

G9200INVERTER ASSY, W/CONVERTER

mainG92A048100iMHU48200708-201008

mainG92A048110iGVU48201008-201105

mainG92A048111iGVU48201106-201402

G9209TANK SUB-ASSY, INVERTER RESERVE

mainG920948010iMHU48200708-201008

G9214BRACKET, INVERTER, NO.1

mainG921448012iMHU48200708-201008

G9215BRACKET, INVERTER, NO.2

mainG921548010iMHU48200708-201008

G9217BRACKET, INVERTER, NO.4

mainG901748010iGVU48201008

mainG921748010iMHU48200708-201008

G9221COVER, INVERTER

mainG902248020iMHU48200708-201008

G9231GASKET, INVERTER COVER

mainG923148010iMHU48200708-201008

G9247SENSOR, INVERTER CURRENT, NO.1

mainG924748011iMHU48200708-201008

G9257BRACKET, INVERTER, NO.5

mainG925748010iMHU48200708-201008

NO.1

mainG925748050iMHU48200708-201008

NO.2

G9258ACAP, INVERTER RESERVE TANK

mainG925847011iMHU48200708-201008

9011908827

main90119-08827

9046621001

main90466-21001

9048022024

main90480-22024

9155180614

main91551-80614

9155380610

main91553-80610

9155380618

main91553-80618

9155380818

main91553-80818

9331914006

main93319-14006

9415180800

main94151-80800

31 parts on this diagram · 6 diagrams in section
