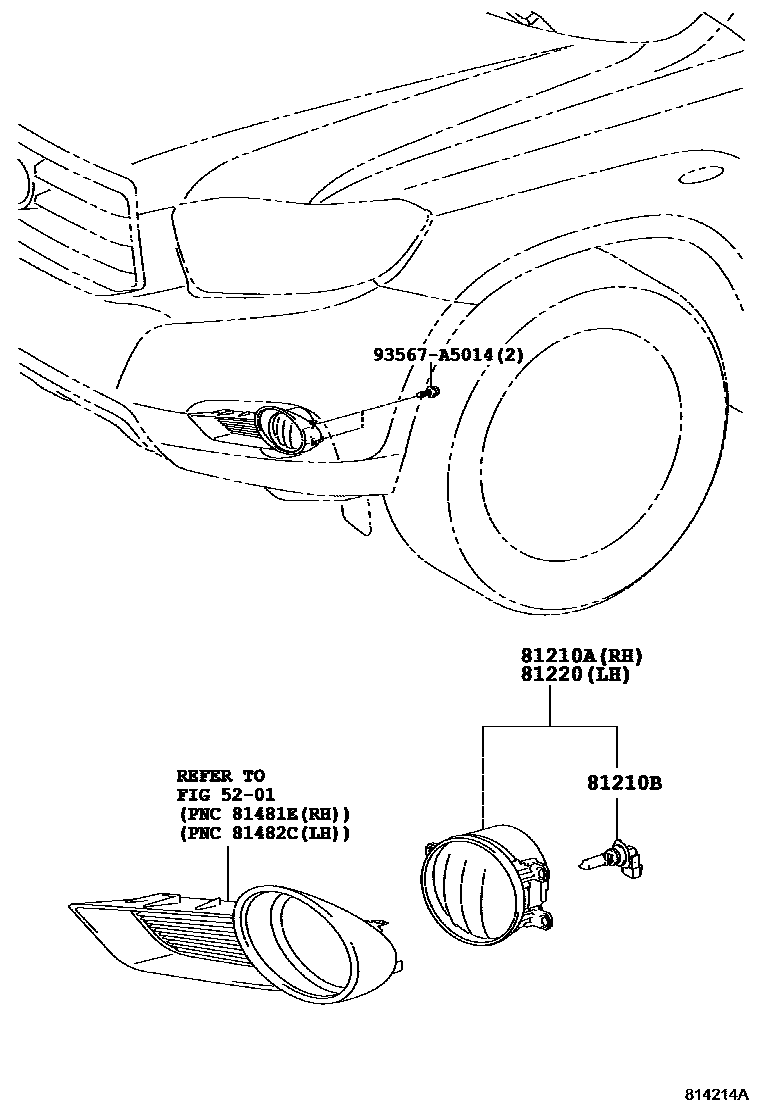

FOG LAMP

0001 1 0002 1

5201FRONT BUMPER & BUMPER STAY

→ Go to FIG 52-01

81210ALAMP ASSY, FOG, RH

main81210-0D041iASU40,GSU4#..STD; GSU4#,MHU48..GD,LIMD,SPO200705-201004

FOG LAMP-WITH

main81210-0D042iGSU4#,MHU48..GD,LIMD,SPO; MHU48..STD201005-201008

APPEARANCE PACKAGE

main81210-0E020iGVU48201008-201011

main81210-0E021iGVU48201012-201111

main81210-0E022iGVU48201111-201402

81210BBULB, FOG LAMP

main90981-13075×2iGSU4#,MHU48..GD,LIMD,SPO200705-201008

12V 55W,HALOGEN,PHILIPS

main90981-13081×2iGSU4#,MHU48..GD,LIMD,SPO200705-201008

12V 55W,HALOGEN,OSRAM

main90981-AD011×2iGVU48201008

12V 26W

81220LAMP ASSY, FOG, LH

main81210-0E020iGVU48201008-201011

main81210-0E021iGVU48201012-201111

main81210-0E022iGVU48201111-201402

main81220-0D041iASU40,GSU4#..STD; GSU4#,MHU48..GD,LIMD,SPO200705-201004

FOG LAMP-WITH

main81220-0D042iGSU4#,MHU48..GD,LIMD,SPO; MHU48..STD201005-201008

APPEARANCE PACKAGE

93567A5014

main93567-A5014

5 parts on this diagram · 2 diagrams in section
