EPC Data

FRONT SEAT & SEAT TRACK

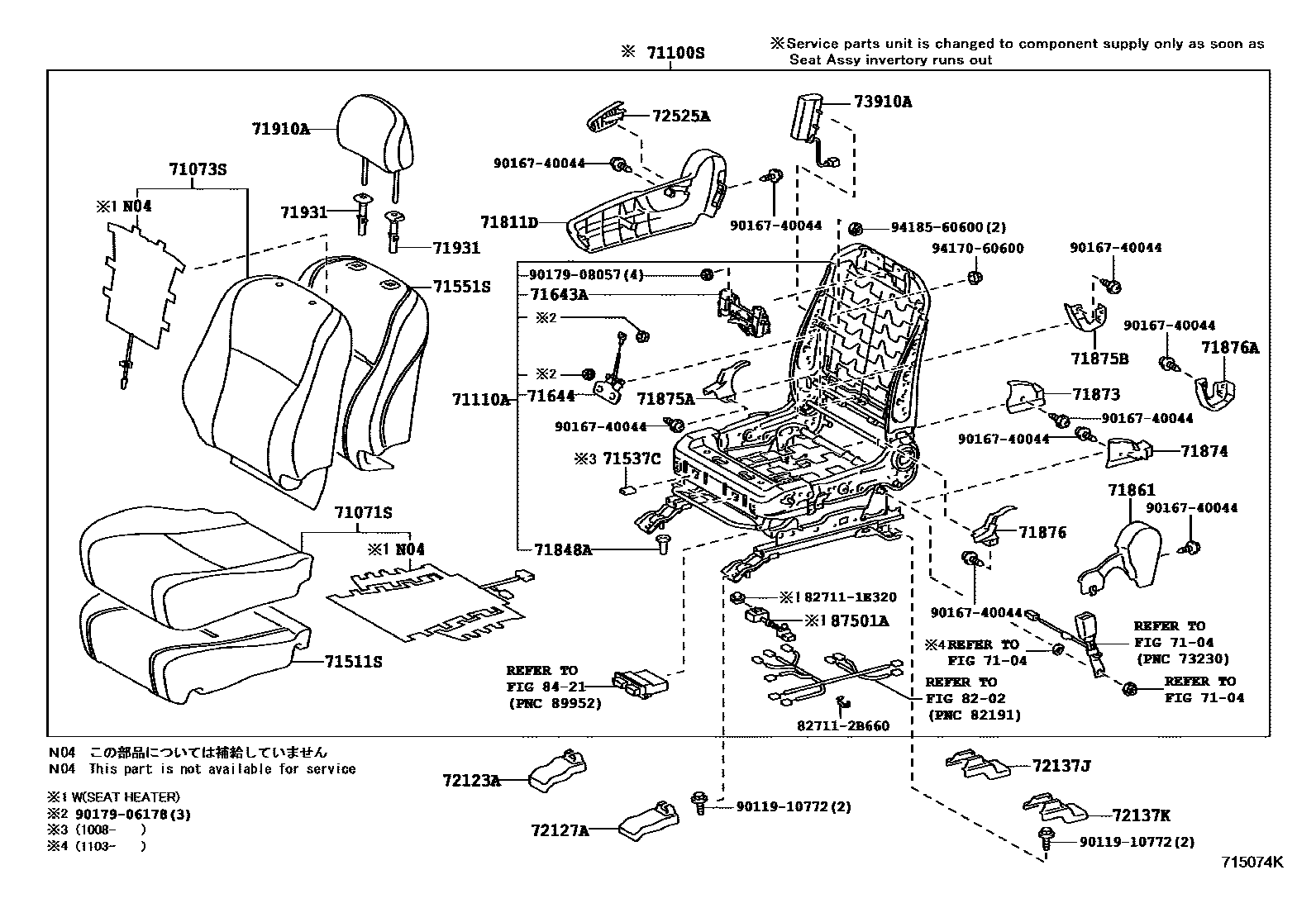

Parts diagram
7104
71071SCOVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
main71071-48510-B0i200705-201007
GRAY,TRIM1#
main71071-48510-E0i200705-201007
SAND BEIGE,TRIM4#
main71071-48520-B0i200705-201008
GRAY,TRIM1#
sub71071-48522
main71071-48520-C0i200705-201007
BLACK,TRIM2#
sub71071-48522
main71071-48520-E0i200705-201008
SAND BEIGE,TRIM4#
sub71071-48522
main71071-48670-B2i201008-201402
GRAY,TRIM1#
sub71071-48671
main71071-48670-C2i201008-201402
BLACK,TRIM2#
sub71071-48671
main71071-48670-E2i201008-201402
SAND BEIGE,TRIM4#
sub71071-48671
main71071-48500-B0supersedes 71071-48760-B0i201008-201402
SEAT COVER MATERIAL-FABRIC,GRAY,TRIM1#
sub71071-48501
main71071-48500-E0supersedes 71071-48760-E0i201008-201402
SEAT COVER MATERIAL-FABRIC,SAND BEIGE,TRIM4#
sub71071-48501
main71071-48540-B0i200705-201007
SEAT COVER MATERIAL-LEATHER,GRAY,TRIM1#
sub71071-48541
main71071-48540-B1supersedes 71071-48760-B0i201008-201402
SEAT COVER MATERIAL-LEATHER,GRAY,TRIM1#
sub71071-48541
main71071-48540-C0i200705-201007
SEAT COVER MATERIAL-LEATHER,BLACK,TRIM2#
sub71071-48541
main71071-48540-C1i201008-201402
SEAT COVER MATERIAL-LEATHER,BLACK,TRIM2#
sub71071-48541
main71071-48540-E0i200705-201007
SEAT COVER MATERIAL-LEATHER,SAND BEIGE,TRIM4#
sub71071-48541
main71071-48540-E1supersedes 71071-48760-E0i201008-201402
SEAT COVER MATERIAL-LEATHER,SAND BEIGE,TRIM4#
sub71071-48541
main71071-48560-B0supersedes 71071-48550-B0i200708-201008
LUXURY PACKAGE&SEAT COVER MATERIAL-LEATHER&FRONT SEAT ADJUSTER-DRIVER:8WAY POWER/PASSENGER:4WAY POWER,GRAY,TRIM1#
main71071-48560-C0supersedes 71071-48550-C0i200705-201007
SEAT HEATER-WITH(TEMPERATURE CONTROL TYPE),BLACK,TRIM2#
main71071-48560-E0supersedes 71071-48550-E0i200705-201007
SEAT HEATER-WITH(TEMPERATURE CONTROL TYPE),SAND BEIGE,TRIM4#
71073SCOVER, FRONT SEATBACK, RH(FOR SEPARATE TYPE)
main71073-48620-B0i200705-201001
GRAY,TRIM1#
sub71073-48A50
main71073-48620-E0i200705-201001
SAND BEIGE,TRIM4#
sub71073-48A50
main71073-48621-B0i201001-201007
GRAY,TRIM1#
sub71073-48A50
main71073-48621-E0i201001-201007
SAND BEIGE,TRIM4#
sub71073-48A50
main71073-48630-B0i200705-201001
GRAY,TRIM1#
sub71073-48632
main71073-48630-C0i200705-201001
BLACK,TRIM2#
sub71073-48632
main71073-48630-E0i200705-201001
SAND BEIGE,TRIM4#
sub71073-48632
main71073-48631-B0i201001-201008
GRAY,TRIM1#
sub71073-48D00
main71073-48631-C0i201001-201007
BLACK,TRIM2#
sub71073-48D00
main71073-48631-E0i201001-201008
SAND BEIGE,TRIM4#
sub71073-48D00
main71073-48891-B2i201008-201402
GRAY,TRIM1#
sub71073-48892
main71073-48891-C2i201008-201402
BLACK,TRIM2#
sub71073-48892
main71073-48891-E2i201008-201402
SAND BEIGE,TRIM4#
sub71073-48892
main71073-48650-B1i200705-201001
SEAT COVER MATERIAL-LEATHER,GRAY,TRIM1#
main71073-48650-C1i200705-201001
SEAT COVER MATERIAL-LEATHER,BLACK,TRIM2#
main71073-48650-E1i200705-201001
SEAT COVER MATERIAL-LEATHER,SAND BEIGE,TRIM4#
main71073-48651-B1i201001-201007
SEAT COVER MATERIAL-LEATHER,GRAY,TRIM1#
main71073-48651-C1i201001-201007
SEAT COVER MATERIAL-LEATHER,BLACK,TRIM2#
main71073-48651-E1i201001-201007
SEAT COVER MATERIAL-LEATHER,SAND BEIGE,TRIM4#
main71073-48670-B1i200708-201001
LUXURY PACKAGE&SEAT COVER MATERIAL-LEATHER&FRONT SEAT ADJUSTER-DRIVER:8WAY POWER/PASSENGER:4WAY POWER,GRAY,TRIM1#
sub71073-48A70
main71073-48670-C1supersedes 71073-48661-C1i200705-201001
SEAT HEATER-WITH(TEMPERATURE CONTROL TYPE),BLACK,TRIM2#
sub71073-48A70
main71073-48670-E1i200708-201001
LUXURY PACKAGE&SEAT COVER MATERIAL-LEATHER&FRONT SEAT ADJUSTER-DRIVER:8WAY POWER/PASSENGER:4WAY POWER,SAND BEIGE,TRIM4#
sub71073-48A70
main71073-48671-B1supersedes 71073-48661-B1i201001-201007
SEAT HEATER-WITH(TEMPERATURE CONTROL TYPE),GRAY,TRIM1#
sub71073-48A70
main71073-48671-C1supersedes 71073-48661-C1i201001-201007
SEAT HEATER-WITH(TEMPERATURE CONTROL TYPE),BLACK,TRIM2#
sub71073-48A70
main71073-48671-E1supersedes 71073-48661-E1i201001-201007
SEAT HEATER-WITH(TEMPERATURE CONTROL TYPE),SAND BEIGE,TRIM4#
sub71073-48A70
main71073-48851-B0supersedes 71073-48861-B0i201008-201402
SEAT COVER MATERIAL-FABRIC,GRAY,TRIM1#
sub71073-48852
main71073-48851-E0supersedes 71073-48861-E0i201008-201402
SEAT COVER MATERIAL-FABRIC,SAND BEIGE,TRIM4#
sub71073-48852
main71073-48871-B1supersedes 71073-48861-B0i201008-201402
SEAT COVER MATERIAL-LEATHER,GRAY,TRIM1#
sub71073-48872
main71073-48871-C0i201008-201402
SEAT COVER MATERIAL-LEATHER,BLACK,TRIM2#
sub71073-48872
main71073-48871-E0supersedes 71073-48861-E0i201008-201402
SEAT COVER MATERIAL-LEATHER,SAND BEIGE,TRIM4#
sub71073-48872
71100SSEAT ASSY, FRONT RH
main71100-48E50-B0i200705-201001
GRAY,TRIM1#
main71100-48E50-E0i200705-201001
SAND BEIGE,TRIM4#
main71100-48E51-B0i201001-201007
GLAY,TRIM1#
main71100-48E51-E0i201001-201007
SAND BEIGE,TRIM4#
main71100-48E60-B0i200705-201001
GRAY,TRIM1#
main71100-48E60-C0i200705-201001
BLACK,TRIM2#
main71100-48E60-E0i200705-201001
SAND BEIGE,TRIM4#
main71100-48E61-B0i201001-201008
GRAY,TRIM1#
sub71100-48S50
main71100-48E61-C0i201001-201007
BLACK,TRIM2#
sub71100-48S50
main71100-48E61-E0i201001-201008
SAND BEIGE,TRIM4#
sub71100-48S50
main71100-48L80-B1i201008-201402
GRAY,TRIM1#
sub71100-48L81
main71100-48L80-C1i201008-201402
BLACK,TRIM2#
sub71100-48L81
main71100-48L80-E1i201008-201402
SAND BEIGE,TRIM4#
sub71100-48L81
main71100-48E20-B1supersedes 71100-48N00-B0i201008-201402
SEAT COVER MATERIAL-LEATHER,GRAY,TRIM1#
sub71100-48E21
main71100-48E20-C0i201008-201402
SEAT COVER MATERIAL-LEATHER,BLACK,TRIM2#
sub71100-48E21
main71100-48E20-E0supersedes 71100-48N00-E0i201008-201402
SEAT COVER MATERIAL-LEATHER,SAND BEIGE,TRIM4#
sub71100-48E21
main71100-48E70-B3i200705-201001
SEAT COVER MATERIAL-LEATHER,GRAY,TRIM1#
main71100-48E70-C3i200705-201001
SEAT COVER MATERIAL-LEATHER,BLACK,TRIM2#
main71100-48E70-E3i200705-201001
SEAT COVER MATERIAL-LEATHER,SAND BEIGE,TRIM4#
main71100-48E71-B0i201001-201007
SEAT COVER MATERIAL-LEATHER,GRAY,TRIM1#
main71100-48E71-C0i201001-201007
SEAT COVER MATERIAL-LEATHER,BLACK,TRIM2#
main71100-48E71-E0i201001-201007
SEAT COVER MATERIAL-LEATHER,SAND BEIGE,TRIM4#
main71100-48E80-B3i200708-201001
LUXURY PACKAGE&SEAT COVER MATERIAL-LEATHER&FRONT SEAT ADJUSTER-DRIVER:8WAY POWER/PASSENGER:4WAY POWER,GRAY,TRIM1#
main71100-48E80-C3supersedes 71100-48E91-C0i200705-201001
SEAT HEATER-WITH(TEMPERATURE CONTROL TYPE),BLACK,TRIM2#
main71100-48E80-E3i200708-201001
LUXURY PACKAGE&SEAT COVER MATERIAL-LEATHER&FRONT SEAT ADJUSTER-DRIVER:8WAY POWER/PASSENGER:4WAY POWER,SAND BEIGE,TRIM4#
main71100-48E81-B0supersedes 71100-48E91-B0i201001-201008
LUXURY PACKAGE&SEAT COVER MATERIAL-LEATHER&FRONT SEAT ADJUSTER-DRIVER:8WAY POWER/PASSENGER:4WAY POWER,GRAY,TRIM1#
main71100-48E81-C0supersedes 71100-48E91-C0i201001-201007
SEAT HEATER-WITH(TEMPERATURE CONTROL TYPE),BLACK,TRIM2#
main71100-48E81-E0supersedes 71100-48E91-E0i201001-201007
SEAT HEATER-WITH(TEMPERATURE CONTROL TYPE),SAND BEIGE,TRIM4#
main71100-48L70-B0supersedes 71100-48N00-B0i201008-201402
SEAT COVER MATERIAL-FABRIC,GRAY,TRIM1#
sub71100-48L71
main71100-48L70-E0supersedes 71100-48N00-E0i201008-201402
SEAT COVER MATERIAL-FABRIC,SAND BEIGE,TRIM4#
sub71100-48L71
71110AFRAME ASSY, FRONT SEAT W/ADJUSTER, RH
main71110-48130i200705-201008
main71110-48131i201103-201402
main71110-48140i201008-201103
main71110-48141i201103-201402
71511SPAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
main71511-48120i201008
main71511-48180i200705-201008
main71511-48190supersedes 71511-48180i200705-201008
WITHOUT(REAR NO.2 SEAT)&SEAT COVER MATERIAL-LEATHER
71537CPROTECTOR, FRONT SEAT CUSHION EDGE, RH
main71537-26010×2i201008
71551SPAD, FRONT SEATBACK, RH(FOR SEPARATE TYPE)
main71551-48090i200705-201008
main71551-48160i201008
71643AUNIT, ACTIVE HEADREST, UPR
main71643-12011×2i200705-201008
71644UNIT, ACTIVE HEADREST, LWR
main71644-12030×2i200705-201008
71811DSHIELD, FRONT SEAT CUSHION, RH
main71811-48130-B0i201008-201402
GRAY,TRIM1#
main71811-48130-C0i200705-201007
BLACK,TRIM2#
main71811-48130-E0i201008-201402
SAND BEIGE,TRIM4#
main71811-48140-B0i201008-201402
GRAY,TRIM1#
main71811-48140-C0i200705-201007
BLACK,TRIM2#
main71811-48140-E0i200705-201007
SAND BEIGE,TRIM4#
71848ACAP, SEAT ADJUSTER COVER, RH
main71848-33010i201008
71861SHIELD, FRONT SEAT CUSHION, INNER RH
main71861-33070-B1i200705-201007
GRAY,TRIM1#
main71861-33070-C0i201008-201402
BLACK,TRIM2#
main71861-33070-E1i200705-201007
SAND BEIGE,TRIM4#
main71861-48070-B0i200705-201008
GRAY,TRIM1#
main71861-48070-C0i200705-201007
BLACK,TRIM2#
main71861-48070-E0i200705-201008
SAND BEIGE,TRIM4#
71873SHIELD, FRONT SEAT CUSHION, LOWER RH
main71873-48100i201008
main71873-48140i200705-201008
71874SHIELD, FRONT SEAT CUSHION, LOWER LH
main71873-48150i200705-201008
main71874-48160i200705-201008
71875ACOVER, RECLINING ADJUSTER INSIDE, RH
main71875-58030-B5i200705-201007
GRAY,TRIM1#
main71875-58030-C0i201008-201402
BLACK,TRIM2#
main71875-58030-E2i200705-201007
SAND BEIGE,TRIM4#
main71875-58040-B6i201008-201402
GRAY,TRIM1#
main71875-58040-C0i200705-201007
BLACK,TRIM2#
main71875-58040-E3i201008-201402
SAND BEIGE,TRIM4#
71875BCOVER, RECLINING ADJUSTER INSIDE, RH
main71875-58050i200705-201008
main71875-58060i200705-201008
71876COVER, RECLINING ADJUSTER INSIDE, LH
main71875-60150-B5i200705-201007
GRAY,TRIM1#
main71875-60150-C0i200705-201007
BLACK,TRIM2#
main71875-60150-E4i200705-201007
SAND BEIGE,TRIM4#
main71876-58040-B6i200705-201008
GRAY,TRIM1#
main71876-58040-C0i200705-201007
BLACK,TRIM2#
main71876-58040-E3i201008-201402
SAND BEIGE,TRIM4#
71876ACOVER, RECLINING ADJUSTER INSIDE, LH
main71876-58050i200705-201008
main71876-58060i200705-201008
71910AHEADREST ASSY, FRONT SEAT
main71910-48350-B0×2i200705-200902
GRAY,TRIM1#
sub71910-48352
main71910-48350-E0×2i200705-200902
SAND BEIGE,TRIM4#
sub71910-48352
main71910-48351-B0×2i200902-201007
GRAY,TRIM1#
sub71910-48A30
main71910-48351-E0×2i200902-201007
SAND BEIGE,TRIM4#
sub71910-48A30
main71910-48360-B0×2i200705-200712
GRAY,TRIM1#
main71910-48360-C0×2i200705-200712
BLACK,TRIM2#
main71910-48360-E0×2i200705-200712
SAND BEIGE,TRIM4#
main71910-48361-B0×2i200801-200902
GRAY,TRIM1#
sub71910-48364
main71910-48361-C0×2i200801-200902
BLACK,TRIM2#
sub71910-48364
main71910-48361-E0×2i200801-200902
SAND BEIGE,TRIM4#
sub71910-48364
main71910-48362-B0×2i200902-201008
GRAY,TRIM1#
sub71910-48A40
main71910-48362-C0×2i200902-201007
BLACK,TRIM2#
sub71910-48A40
main71910-48362-E0×2i200902-201008
SAND BEIGE,TRIM4#
sub71910-48A40
main71910-48370-B0×2i200705-200712
GRAY,TRIM1#
main71910-48370-C0×2i200705-200712
SEAT COVER MATERIAL-LEATHER,BLACK,TRIM2#
main71910-48370-E0×2i200705-200712
SAND BEIGE,TRIM4#
main71910-48371-B0×2i200801-200902
GRAY,TRIM1#
sub71910-48373
main71910-48371-C0×2i200801-200902
SEAT COVER MATERIAL-LEATHER,BLACK,TRIM2#
sub71910-48373
main71910-48371-E0×2i200801-200902
SAND BEIGE,TRIM4#
sub71910-48373
main71910-48372-B0×2i200902-201007
GRAY,TRIM1#
sub71910-48374
main71910-48372-B3×2i201008-201402
GRAY,TRIM1#
sub71910-48374
main71910-48372-C0×2i200902-201007
SEAT COVER MATERIAL-LEATHER,BLACK,TRIM2#
sub71910-48374
main71910-48372-C1×2i201008-201402
SEAT COVER MATERIAL-LEATHER,BLACK,TRIM2#
sub71910-48374
main71910-48372-E0×2i200902-201007
SAND BEIGE,TRIM4#
sub71910-48374
main71910-48372-E2×2i201008-201402
SAND BEIGE,TRIM4#
sub71910-48374
main71910-48560-B0×2supersedes 71910-48362-B1i201008-201402
SEAT COVER MATERIAL-FABRIC,GRAY,TRIM1#
sub71910-48561
main71910-48560-E0×2supersedes 71910-48362-E1i201008-201402
SEAT COVER MATERIAL-FABRIC,SAND BEIGE,TRIM4#
sub71910-48561
71931SUPPORT, FRONT SEAT HEADREST
main71930-44020-B2×2i201008-201402
W(LOCK),GRAY,TRIM1#
sub71930-02370
main71930-44020-C0×2i200705-201007
W(LOCK),BLACK,TRIM2#
sub71930-02370
main71930-44020-E2×2i201008-201402
W(LOCK),SAND BEIGE,TRIM4#
sub71930-02370
main71930-48010-B4×2i200705-200902
W(LOCK)&W/O(BUTTON),GRAY,TRIM1#
main71930-48010-C0×2i200705-200902
W(LOCK)&W/O(BUTTON),BLACK,TRIM2#
main71930-48010-E0×2i200705-200902
W(LOCK)&W/O(BUTTON),SAND BEIGE,TRIM4#
main71931-47010-C0×2i200902-201007
W/O(LOCK),BLACK,TRIM2#
sub71931-42020
main71931-47010-E8×2i200902-201008
W/O(LOCK),SAND BEIGE,TRIM4#
sub71931-42020
main71931-47010-P4×2i200902-201008
W/O(LOCK),GRAY,TRIM1#
sub71931-42020
72123ACOVER, SEAT TRACK BRACKET, OUTER FRONT RH
main72123-48100-B0i200705-201008
GRAY,TRIM1#
main72123-48100-C0i200705-201007
BLACK,TRIM2#
main72123-48100-E0i200705-201008
SAND BEIGE,TRIM4#
main72123-48110-B0i200705-201007
GRAY,TRIM1#
main72123-48110-C0i200705-201007
BLACK,TRIM2#
main72123-48110-E0i200705-201007
SAND BEIGE,TRIM4#
72127ACOVER, SEAT TRACK BRACKET, INNER FRONT RH
main72127-48050-B0i200705-201008
GRAY,TRIM1#
main72127-48050-C0i201008-201402
BLACK,TRIM1#,2#,4#
main72127-48050-E0i200705-201008
SAND BEIGE,TRIM4#
main72128-48050-B0i200705-201007
GRAY,TRIM1#
main72128-48050-C0i201008-201402
BLACK,TRIM1#,2#,4#
main72128-48050-E0i200705-201007
SAND BEIGE,TRIM4#
72137JCOVER, FRONT SEAT TRACK, RH REAR OUTER
main72137-48120-B0i200705-201007
GRAY,TRIM1#
main72137-48120-C0i200705-201007
BLACK,TRIM2#
main72137-48120-E0i200705-201007
SAND BEIGE,TRIM4#
main72137-48150-B0i200705-201008
GRAY,TRIM1#
main72137-48150-C0i201008-201402
BLACK,TRIM1#,2#,4#
main72137-48150-E0i200705-201008
SAND BEIGE,TRIM4#
72137KCOVER, FRONT SEAT TRACK, RH REAR INNER
main72137-48150-B0i200705-201008
GRAY,TRIM1#
main72137-48150-C0i200705-201007
BLACK,TRIM2#
main72137-48150-E0i200705-201008
SAND BEIGE,TRIM4#
main72138-48080-B0i200705-201007
GRAY,TRIM1#
main72138-48080-C0i201008-201402
BLACK,TRIM1#,2#,4#
main72138-48080-E0i200705-201007
SAND BEIGE,TRIM4#
72525AHANDLE, RECLINING ADJUSTER RELEASE, RH
main72525-42010-B1i201008-201402
GRAY,TRIM1#
main72525-42010-C0i201008-201402
BLACK,TRIM2#
main72525-42010-E2i200705-201008
SAND BEIGE,TRIM4#
73910AAIRBAG ASSY, FRONT SEAT, RH
main73910-48030i200705-201008
main73910-48070i201008-201302
main73910-48071i201302
8202
8421
87501ACONTROL SUB-ASSY, SEAT HEATER, RH
main87501-60010i201008-201205
SEAT COVER MATERIAL-LEATHER
main87501-60060i201206
SEAT COVER MATERIAL-LEATHER
sub87501-48020
827111E320WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-1E320
827112B660WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-2B660
9011910772
main90119-10772
9016740044
main90167-40044
9017906178
main90179-06178
9017908057
main90179-08057
9417060600
main94170-60600
9418560600
main94185-60600

38 parts on this diagram · 5 diagrams in section

FRONT SEAT & SEAT TRACK — Toyota Parts Diagram with OEM Numbers & Prices | EPC Data
