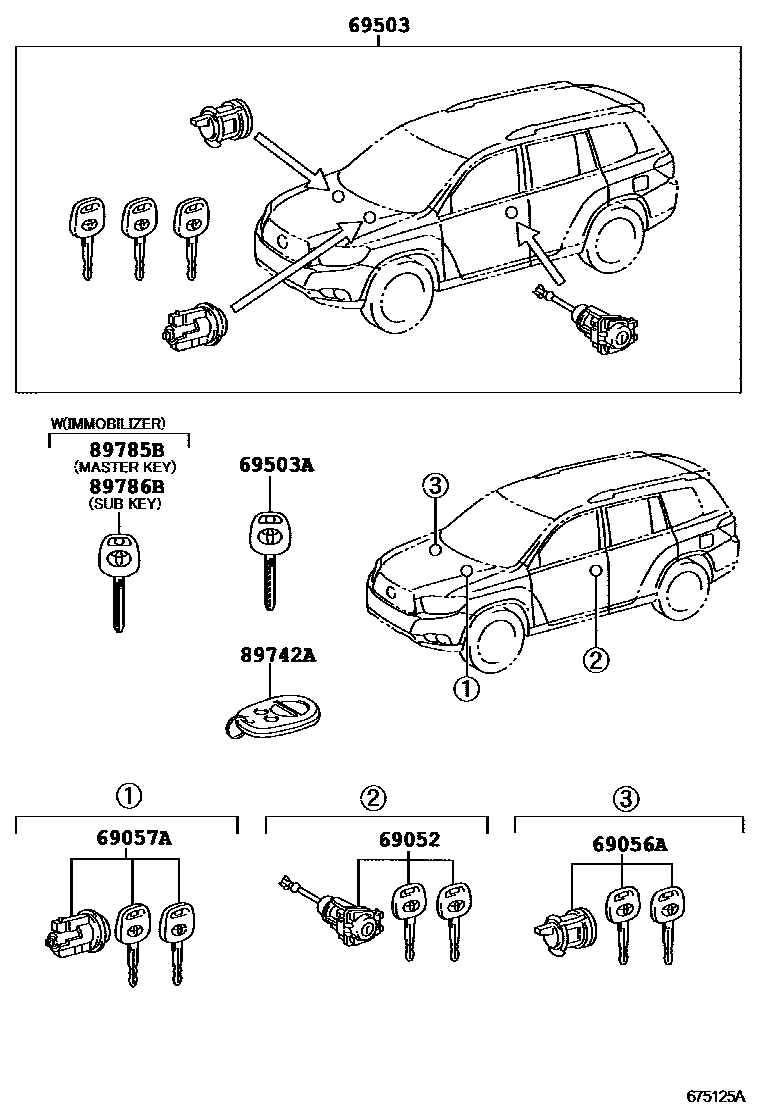

Toyota HIGHLANDER (JPP)522 — LOCK CYLINDER SET
69056ACYLINDER & KEY SET, GLOVE COMPARTMENT LOCK
69057ACYLINDER & KEY SET, IGNITION SWITCH LOCK
69503CYLINDER SET, LOCK
69503AKEY, BLANK
89742ATRANSMITTER, DOOR CONTROL
89785BTRANSMITTER, TRANSPONDER KEY MASTER
89786BTRANSMITTER, TRANSPONDER KEY SUB
8 parts on this diagram · 2 diagrams in section
LOCK CYLINDER SET for Toyota HIGHLANDER (JPP)522
This section contains 11 genuine Toyota parts for the LOCK CYLINDER SET system of the Toyota HIGHLANDER (JPP)522. Key components include: CYLINDER & KEY SET, DOOR LOCK, LH, CYLINDER & KEY SET, GLOVE COMPARTMENT LOCK, CYLINDER & KEY SET, IGNITION SWITCH LOCK, CYLINDER SET, LOCK, KEY, BLANK.
