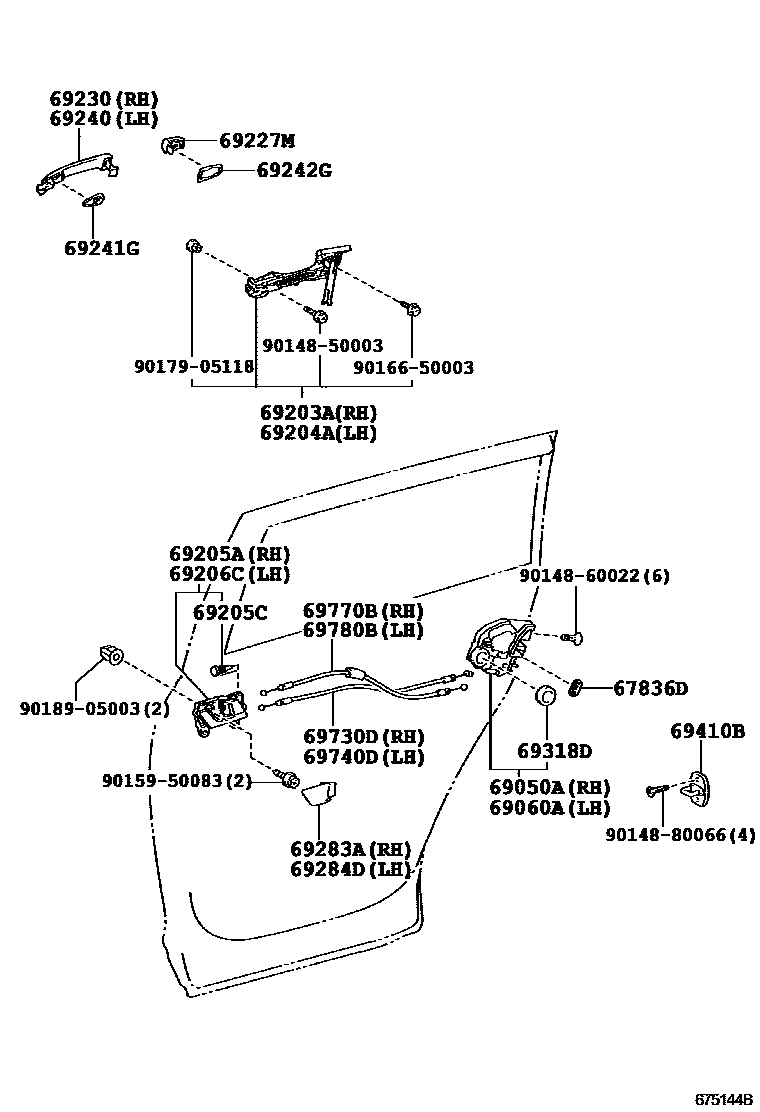

REAR DOOR LOCK & HANDLE
67836DCOVER, REAR DOOR LOCK CHILD PROTECTION
69050ALOCK ASSY, REAR DOOR W/MOTOR, RH
69060ALOCK ASSY, REAR DOOR W/MOTOR, LH
69203AFRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, RH
69204AFRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, LH
69205AHANDLE SUB-ASSY, REAR DOOR INSIDE, RH
BLACK,TRIM1#,2#
DK. BROWN,TRIM4#
BLACK,TRIM1#
DK. BROWN,TRIM4#
BLACK,TRIM1#,2#
DK. BROWN,TRIM4#
69205CCUSHION(FOR REAR DOOR INSIDE HANDLE)
69206CHANDLE SUB-ASSY, REAR DOOR INSIDE, LH
BLACK,TRIM1#,2#,4#; WIRELESS DOOR LOCK-WITH(SMART ENTRY),BLACK,TRIM1#,2#,4#
DK. BROWN,TRIM4#
BLACK,TRIM1#
DK. BROWN,TRIM4#
BLACK,TRIM1#,2#
DK. BROWN,TRIM4#
69227MCOVER, REAR DOOR OUTSIDE HANDLE
WHITE PEARL CS.,070
SILVER ME.,1F7; WIRELESS DOOR LOCK-WITH(SMART ENTRY),SILVER ME.,1F7
GRAY ME.,1G3
BLACK,202; WIRELESS DOOR LOCK-WITH(SMART ENTRY),BLACK,202
BLACKISH RED MC.,3R0; WIRELESS DOOR LOCK-WITH(SMART ENTRY),BLACKISH RED MC.,3R0
DK. RED M.M.,3Q3
BEIGE ME.,4T8
OLIVE M.M.,6T7
LT.BLUE ME.,8S7
BLUE ME.,8T7
AMETHIST GRAY M.M.,9AG
GRAY M.M.,1H1; WIRELESS DOOR LOCK-WITH(SMART ENTRY),GRAY M.M.,1H1
GRAYISH BLUE M.M.,8V5; WIRELESS DOOR LOCK-WITH(SMART ENTRY),GRAYISH BLUE M.M.,8V5
WHITE PEARL CS.,070
GRAY ME.,1G3
BLACK,202
DK. RED M.M.,3Q3
OLIVE M.M.,6T7
BEIGE ME.,4T8
SILVER ME.,1F7
LT.BLUE M.M.,8S7
BLUE ME.,8T7
69230HANDLE ASSY, REAR DOOR OUTSIDE, RH
WHITE PEARL CS.,070; WIRELESS DOOR LOCK-WITH(SMART ENTRY),WHITE PEARL CS.,070
SILVER ME.,1F7; WIRELESS DOOR LOCK-WITH(SMART ENTRY),SILVER ME.,1F7
GRAY ME.,1G3
BLACK,202
DK. RED M.M.,3Q3
BLACKISH RED MC.,3R0; WIRELESS DOOR LOCK-WITH(SMART ENTRY),BLACKISH RED MC.,3R0
BEIGE ME.,4T8
OLIVE M.M.,6T7
LT.BLUE M.M.,8S7
BLUE ME.,8T7
AMETHIST GRAY M.M.,9AG
GRAY M.M.,1H1; WIRELESS DOOR LOCK-WITH(SMART ENTRY),GRAY M.M.,1H1
GRAYISH BLUE M.M.,8V5; WIRELESS DOOR LOCK-WITH(SMART ENTRY),GRAYISH BLUE M.M.,8V5
WHITE PEARL CS.,070
BLACK,202
DK. RED M.M.,3Q3
OLIVE M.M.,6T7
BEIGE ME.,4T8
SILVER ME.,1F7
GRAY ME.,1G3
LT.BLUE M.M.,8S7
BLUE ME.,8T7
69240HANDLE ASSY, REAR DOOR OUTSIDE, LH
WHITE PEARL CS.,070; WIRELESS DOOR LOCK-WITH(SMART ENTRY),WHITE PEARL CS.,070
SILVER ME.,1F7
GRAY ME.,1G3
BLACK,202
DK. RED M.M.,3Q3
BLACKISH RED MC.,3R0; WIRELESS DOOR LOCK-WITH(SMART ENTRY),BLACKISH RED MC.,3R0
BEIGE ME.,4T8
OLIVE M.M.,6T7
LT.BLUE M.M.,8S7
BLUE ME.,8T7
AMETHIST GRAY M.M.,9AG
GRAY M.M.,1H1; WIRELESS DOOR LOCK-WITH(SMART ENTRY),GRAY M.M.,1H1
GRAYISH BLUE M.M.,8V5; WIRELESS DOOR LOCK-WITH(SMART ENTRY),GRAYISH BLUE M.M.,8V5
WHITE PEARL CS.,070
BLACK,202
DK. RED M.M.,3Q3
OLIVE M.M.,6T7
BEIGE ME.,4T8
SILVER ME.,1F7
GRAY ME.,1G3
LT.BLUE M.M.,8S7
BLUE ME.,8T7
69241GPAD, REAR DOOR OUTSIDE HANDLE, FRONT
69242GPAD, REAR DOOR OUTSIDE HANDLE, REAR
69283APLUG, REAR DOOR INSIDE HANDLE BEZEL, RH
BLACK
69284DPLUG, REAR DOOR INSIDE HANDLE BEZEL, LH
BLACK
69318DSEAL, DOOR LOCK WIRING HARNESS
69410BPLATE ASSY, REAR DOOR LOCK STRIKER
69730DCABLE ASSY, REAR DOOR LOCK REMOTE CONTROL, RH
69740DCABLE ASSY, REAR DOOR LOCK REMOTE CONTROL LH
69770BCABLE ASSY, REAR DOOR INSIDE LOCKING, RH
69780BCABLE ASSY, REAR DOOR INSIDE LOCKING, LH
9014850003
main90148-50003
9014860022
main90148-60022
9014880066
main90148-80066
9015950083
main90159-50083
9016650003
main90166-50003
9017905118
main90179-05118
9018905003
main90189-05003
28 parts on this diagram · 1 diagram in section
