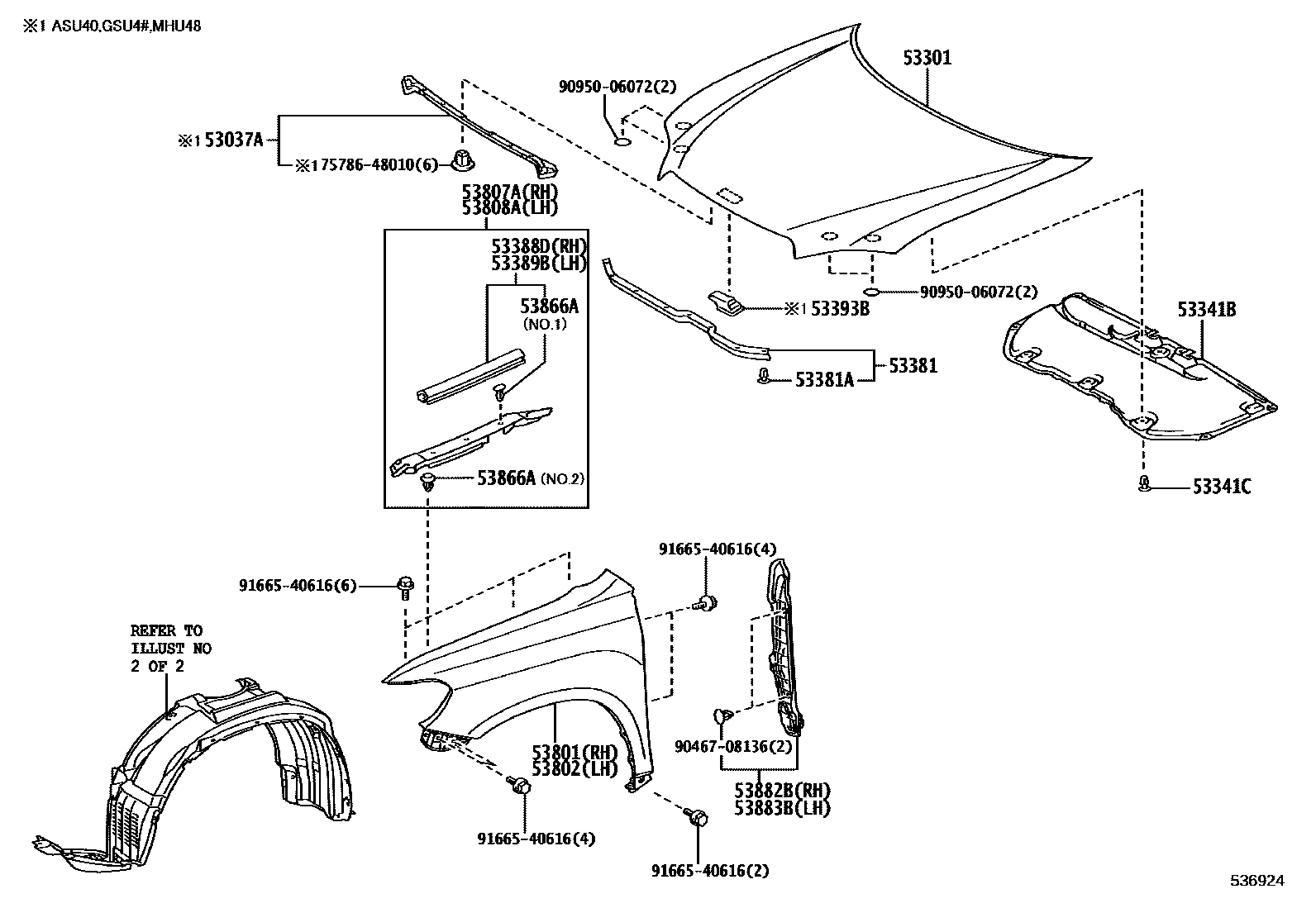

HOOD & FRONT FENDER

0001 1 0002 1FENDER LINER

53037ASEAL SUB-ASSY, RADIATOR

main53037-48010iASU40,GSU4#,MHU48200705-201008

53301HOOD SUB-ASSY

main53301-48120iASU40,GSU4#,MHU48200705-201008

main53301-48160iGVU48201008-201402

CANADA SPEC

53341BINSULATOR, HOOD

main53341-48070iASU40,GSU4#,MHU48200705-201001

main53341-48071iASU40,GSU4#,MHU48201002-201008

53341CCLIP(FOR HOOD INSULATOR)

main90467-09050×8iASU40,GSU4#,MHU48200705-201008

53381SEAL, HOOD TO RADIATOR SUPPORT

main53381-48060iASU40,GSU4#,MHU48200705-201008

53381ACLIP(FOR HOOD TO RADIATOR SUPPORT SEAL)

main90467-08011×8iASU40,GSU4#,MHU48200705-201008

53388DSEAL, HOOD TO FRONT FENDER, RH

main53388-48030iASU40,GSU4#,MHU48200705-201008

53389BSEAL, HOOD TO FRONT FENDER, LH

main53389-48030iASU40,GSU4#,MHU48200705-201008

53393BPROTECTOR, HOOD, FRONT

main53393-48040iASU40,GSU4#,MHU48200705-201008

53801FENDER SUB-ASSY, FRONT RH

main53801-48040iMHU48;GSU4#..GD,LIMD,SPO200705-201008

main53801-48060iASU40,GSU4#..STD200705-201007

main53801-48110iGVU48201008

CANADA SPEC

53802FENDER SUB-ASSY, FRONT LH

main53802-48100iASU40,GSU4#,MHU48200705-201008

main53802-48130iGVU48201008

CANADA SPEC

53807ASHIELD SUB-ASSY, FENDER SPLASH, REAR RH

main53807-48010iASU40,GSU4#,MHU48200705-201008

main53807-48040iGVU48201008

53808ASHIELD SUB-ASSY, FENDER SPLASH, REAR LH

main53808-48010iASU40,GSU4#,MHU48200705-201008

main53808-48040iGVU48201008-201106

main53808-48041iGVU48201107

53866ACLIP(FOR FRONT FENDER TO COWL SIDE SEAL)

main90467-08108×6iASU40,GSU4#,MHU48200705-201008

NO.1:REFER ILLUST.

main90467-10161×6iASU40,GSU4#,MHU48200705-201008

NO.2:REFER ILLUST.

53882BSEAL, FRONT FENDER, RH

main53882-48030iASU40,GSU4#,MHU48200705-201008

53883BSEAL, FRONT FENDER, LH

main53883-48030iASU40,GSU4#,MHU48200705-201008

7578648010MOULDING, QUARTER WINDOW, FRONT LH

main75786-48010

9046708136

main90467-08136

9095006072

main90950-06072

9166540616

main91665-40616

20 parts on this diagram · 2 diagrams in section
