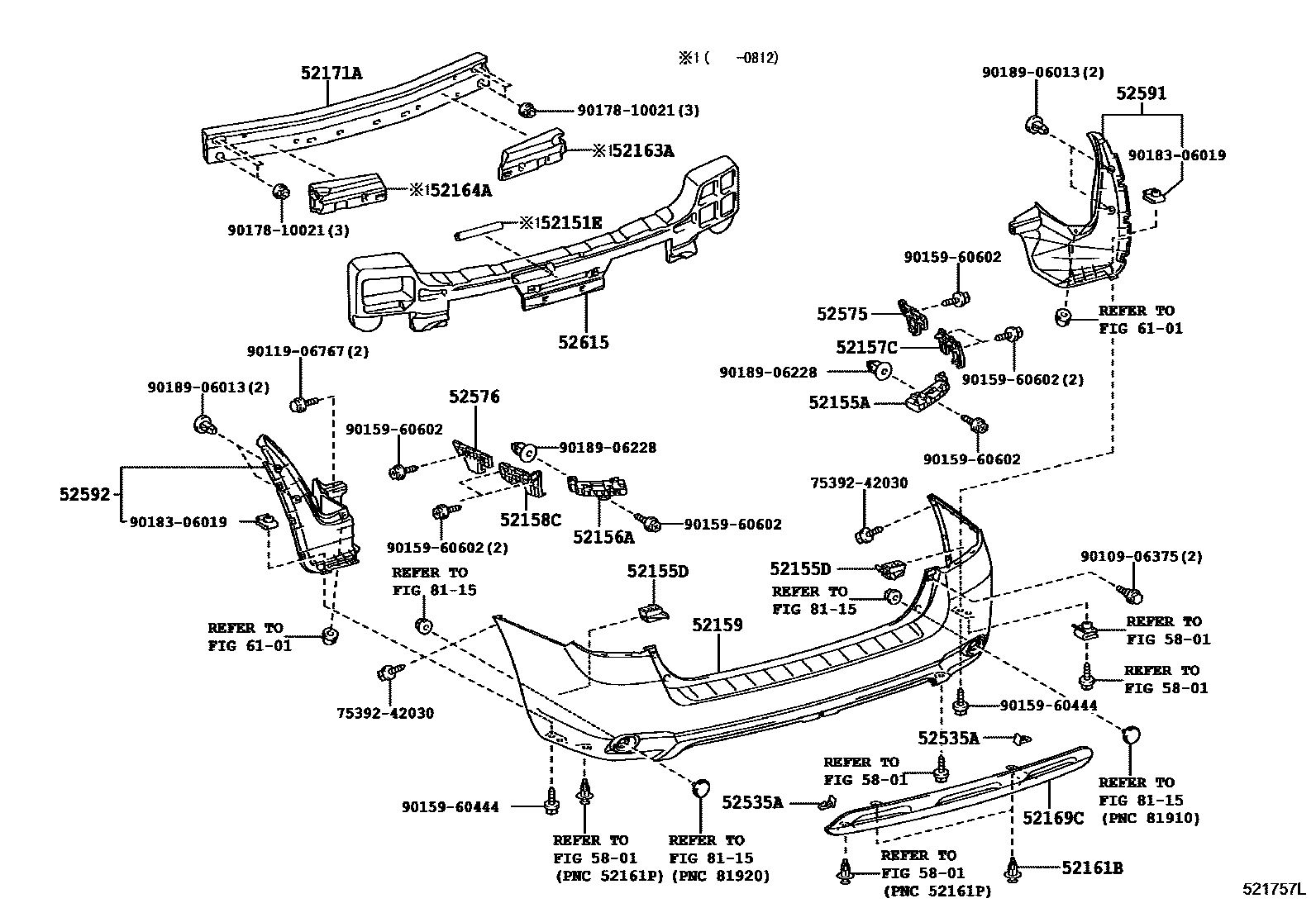

REAR BUMPER & BUMPER STAY

0001 1 0002 1

52151EBAR, REAR BUMPER

main52151-48030iASU40,GSU4#,MHU48200705-200812

NO PAINT REQ.

52155ASUPPORT, REAR BUMPER SIDE, RH

main52155-48020iASU40,GSU4#,MHU48200705-201008

main52155-48040iGVU48201008

52155DSUPPORT, REAR BUMPER SIDE

main52154-48010iASU40,GSU4#,MHU48200705-201007

52156ASUPPORT, REAR BUMPER SIDE, LH

main52156-48020iASU40,GSU4#,MHU48200705-201008

main52156-48040iGVU48201008

52157CSUPPORT, REAR BUMPER SIDE, NO.2 RH

main52157-48010iASU40,GSU4#,MHU48200705-201008

52158CSUPPORT, REAR BUMPER SIDE, NO.2 LH

main52158-48010iASU40,GSU4#,MHU48200705-201008

52159COVER, REAR BUMPER

main52159-48912iASU40,GSU4#,MHU48200705-201008

PAINT REQ.

main52159-48917iGVU48201008

PAINT REQ.

52161BPIECE, REAR BUMPER

main52161-16010iASU40,GSU4#,MHU48200705-201008

52163APLATE, REAR BUMPER, RH

main52163-48010iASU40,GSU4#,MHU48200705-200812

52164APLATE, REAR BUMPER, LH

main52164-48010iASU40,GSU4#,MHU48200705-200812

52169CCOVER, REAR BUMPER, LOWER

main52169-48010iGSU4#..LIMD,SPO200705-201007

PAINT REQ.

main52169-48010iGSU4#..LIMD,SPO200705-201007

NO PAINT REQ.

main52169-48030iMHU48200708-201008

NO PAINT REQ.

main52169-48040iGVU48201008-201402

PAINT REQ.

52171AREINFORCEMENT, REAR BUMPER, NO.1

main52171-48150iASU40,GSU4#,MHU48200705-200902

CANADA SPEC

main52171-48150iASU40,GSU4#,MHU48200705-200902

MEXICO SPEC

main52171-48151iASU40,GSU4#,MHU48200902-201003

CANADA SPEC

main52171-48151iASU40,GSU4#,MHU48200902-201003

MEXICO SPEC

main52171-48152iASU40,GSU4#,MHU48201004-201402

CANADA SPEC

52535ARETAINER, REAR BUMPER SIDE, RH

main52535-28020iASU40,GSU4#,MHU48200705-201008

52575RETAINER, REAR BUMPER SIDE, RH

main52575-48030iASU40,GSU4#,MHU48200705-201006

main52575-48031iMHU48201007-201008

52576RETAINER, REAR BUMPER SIDE, LH

main52576-48030iASU40,GSU4#,MHU48200705-201006

main52576-48031iMHU48201007-201008

52591SEAL, REAR BUMPER SIDE, RH

main52591-48080iASU40,GSU4#,MHU48200705-201008

main52591-48090iGVU48201008

52592SEAL, REAR BUMPER SIDE, LH

main52592-48010iASU40,GSU4#,MHU48200705-201008

main52592-48020iGVU48201008

52615ABSORBER, REAR BUMPER ENERGY

main52615-48110iASU40,GSU4#,MHU48200705-201008

main52615-48160iGVU48201008

5801FLOOR PAN & LOWER BACK PANEL

→ Go to FIG 58-01

6101SIDE MEMBER

→ Go to FIG 61-01

8115REFLEX REFLECTOR

→ Go to FIG 81-15

7539242030RETAINER, OUTSIDE MOULDING

main75392-42030

9010906375

main90109-06375

9011906767

main90119-06767

9015960444

main90159-60444

9015960602

main90159-60602

9017810021

main90178-10021

9018306019

main90183-06019

9018906013

main90189-06013

9018906228

main90189-06228

30 parts on this diagram · 2 diagrams in section
