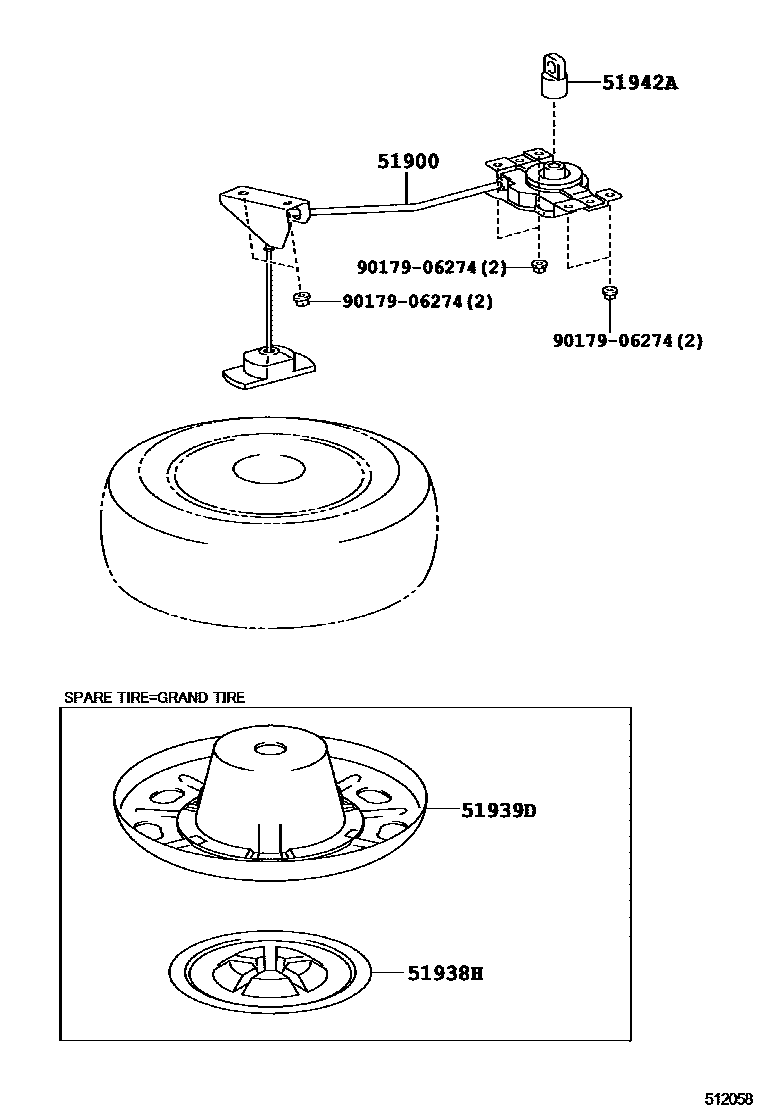

SPARE WHEEL CARRIER

51900CARRIER ASSY, SPARE WHEEL

main51900-48030i201008-201102

main51900-48031i201103-201106

main51900-48032i201106-201208

51938HCOVER, SPARE WHEEL CARRIER HINGE, LWR

main51938-48010i200705-201008

MEXICO SPEC&SPARE TIRE-GRAND TIRE(245/55R19),ALUMINUM; MEXICO SPEC&SPARE TIRE-GRAND TIRE(245/65R17),ALUMINUM

51939DCOVER, SPARE WHEEL CARRIER LOCK

main51939-48020i200705-201008

MEXICO SPEC&SPARE TIRE-GRAND TIRE(245/55R19),ALUMINUM; MEXICO SPEC&SPARE TIRE-GRAND TIRE(245/65R17),ALUMINUM

51942AHANDLE, SPARE WHEEL CARRIER BOLT

main51942-28010i200901-201008

main51942-48010i200705-200812

9017906274

5 parts on this diagram · 1 diagram in section
