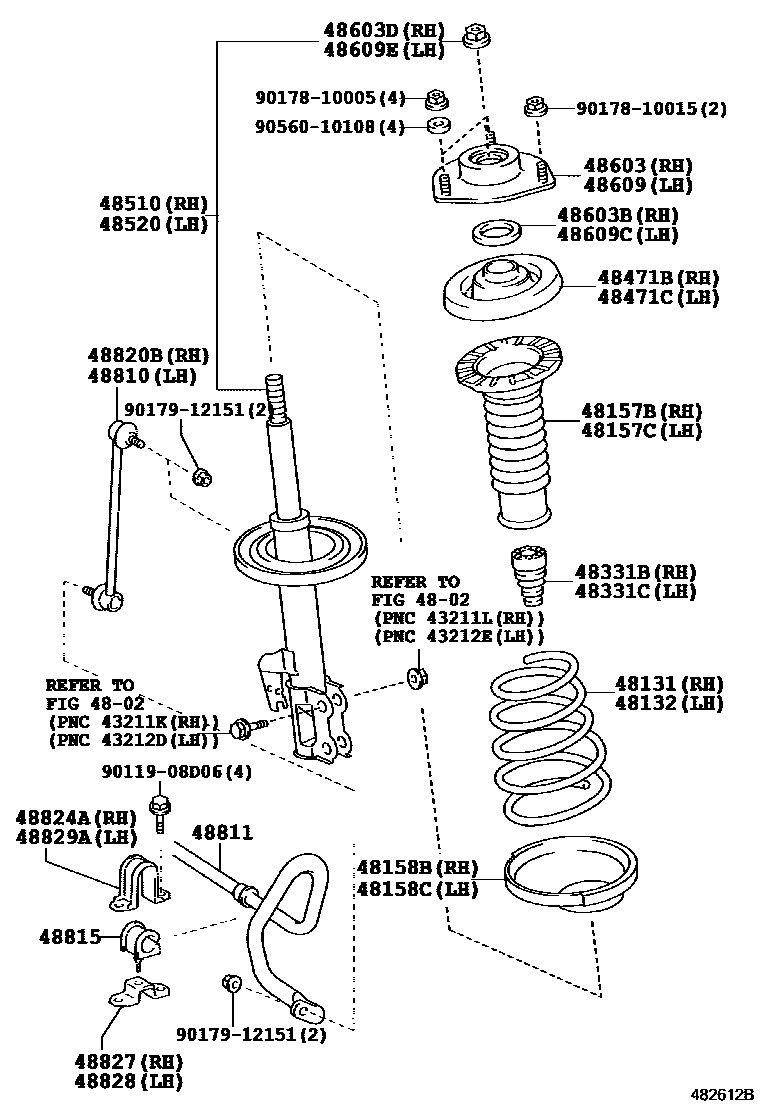

FRONT SPRING & SHOCK ABSORBER
4802
48131SPRING, FRONT COIL, RH
MEXICO SPEC
48132SPRING, FRONT COIL, LH
MEXICO SPEC
48157BINSULATOR, FRONT COIL SPRING, UPPER RH
48157CINSULATOR, FRONT COIL SPRING, UPPER LH
48158BINSULATOR, FRONT COIL SPRING, LOWER RH
48158CINSULATOR, FRONT COIL SPRING, LOWER LH
48331BBUMPER, FRONT SPRING, RH
48331CBUMPER, FRONT SPRING, LH
48471BSEAT, FRONT COIL SPRING, UPPER RH
48471CSEAT, FRONT COIL SPRING, UPPER LH
48510ABSORBER ASSY, SHOCK, FRONT RH
MARK 48510-48220
MARK 48510-48230
MARK 48510-48250
MARK 48510-48221,MEXICO SPEC
MARK 48510-48231
MARK 48510-48241
MARK 48510-48251
MARK 48510-48330
48520ABSORBER ASSY, SHOCK, FRONT LH
MARK 48520-48220
MARK 48520-48230
MARK 48520-48250
MARK 48520-48221
MARK 48520-48231
MARK 48520-48241
MARK 48520-48251
MARK 48520-48330
MARK 48520-48331
48603SUPPORT SUB-ASSY, FRONT SUSPENSION, RH
48603BBEARING(FOR FRONT SUSPENSION SUPPORT RH)
48603DNUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER RH)
48609SUPPORT SUB-ASSY, FRONT SUSPENSION, LH
48609CBEARING(FOR FRONT SUSPENSION SUPPORT LH)
48609ENUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER LH)
48810LINK ASSY, FRONT STABILIZER, LH
48815BUSH, FRONT STABILIZER BAR, NO.1
48820BLINK ASSY, FRONT STABILIZER, RH
48824ABRACKET, FRONT STABILIZER, NO.1 RH
48827BRACKET, FRONT STABILIZER, NO.2 RH
48828BRACKET, FRONT STABILIZER, NO.2 LH
48829ABRACKET, FRONT STABILIZER, NO.1 LH
9011908D06
main90119-08D06
9017810005
main90178-10005
9017810015
main90178-10015
9017912151
main90179-12151
9056010108
main90560-10108
32 parts on this diagram · 1 diagram in section
