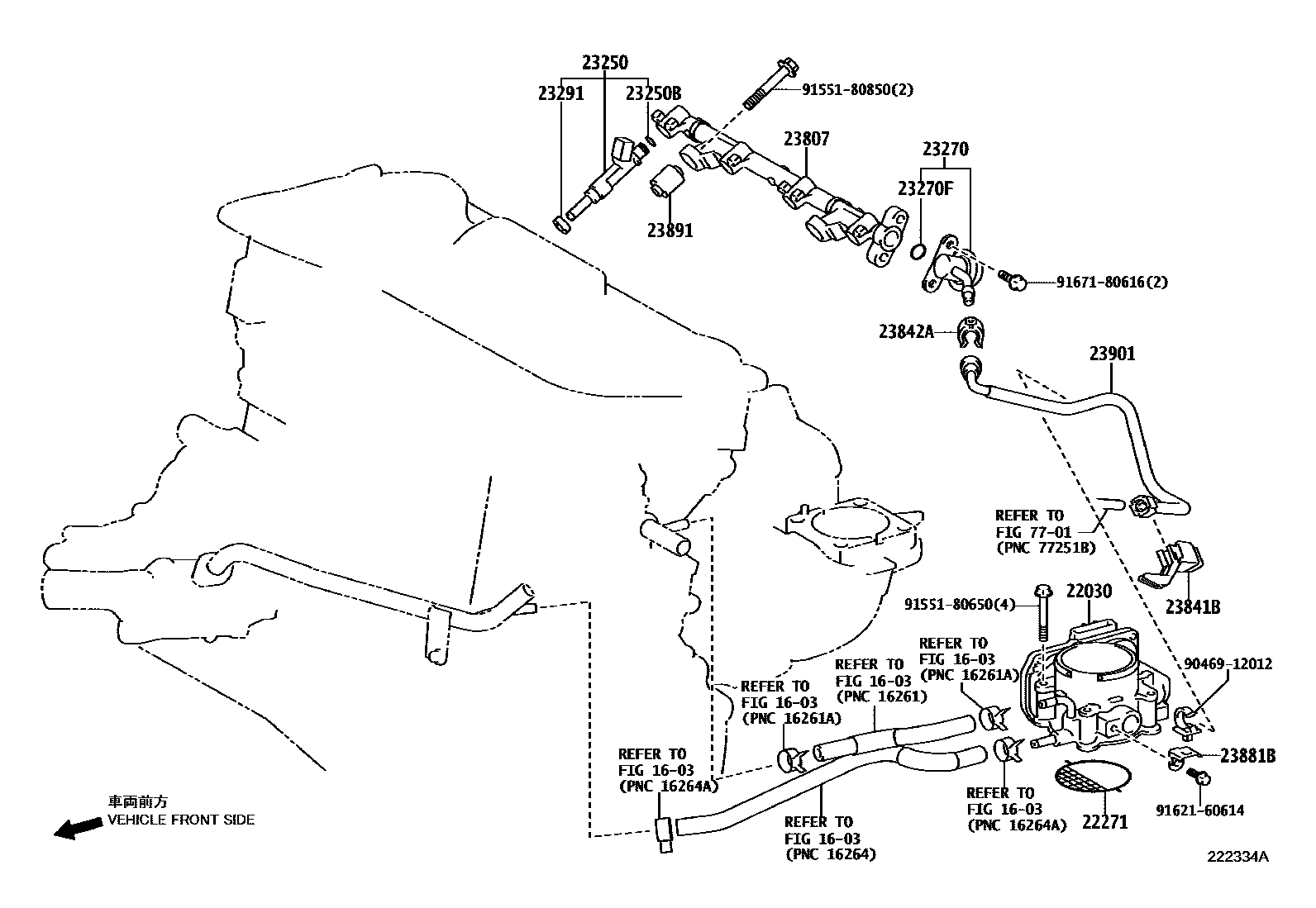

FUEL INJECTION SYSTEM

0001 1 0002 1 0003 1 0004 1

1603RADIATOR & WATER OUTLET

→ Go to FIG 16-03

22030BODY ASSY, THROTTLE W/THROTTLE POSITION SENSOR

main22030-31030i2GRFE..GSU4#200705-201008

main22030-36010i1ARFE..ASU40200811

22271GASKET, THROTTLE BODY

main22271-31040i2GRFXE..GVU48201008

main22271-36010i1ARFE..ASU40200811

23250INJECTOR ASSY, FUEL

main23209-20030×6i3MZFE..MHU48200708-200710

main23209-20040×6i3MZFE..MHU48200710

main23209-31050×6i2GRFE..GSU4#200705-201008

main23209-31090×6i2GRFXE..GVU48201008

main23209-39175×4i1ARFE..ASU40200811

23250BRING, O(FOR FUEL INJECTOR)

main90301-07033×6i2GRFXE..GVU48201008

main90301-07037×4i1ARFE..ASU40200811

23270DAMPER ASSY, FUEL PRESSURE PULSATION

main23207-20010i3MZFE..MHU48200910

main23270-36010i1ARFE..ASU40200811

main23270-62011i3MZFE..MHU48200708-200910

23270FRING, O(FOR PULSATION DAMPER)

main90301-07037i1ARFE..ASU40200811

23291INSULATOR, INJECTOR VIBRATION

main23291-23010×6i2GRFE..GSU4#200705-201008

main23291-28020×4i1ARFE..ASU40200811

23807PIPE SUB-ASSY, FUEL DELIVERY

main23807-31090i2GRFE..GSU4#200705-201008

main23814-20021i3MZFE..MHU48200708

main23814-36010i1ARFE..ASU40200811

main23870-31010i2GRFXE..GVU48201008

23841BCLAMP, FUEL PIPE, NO.1(FOR EFI)

main23841-21050i3MZFE..MHU48200708-201008

23842ACLAMP, FUEL PIPE, NO.2(FOR EFI)

main23842-28010i1ARFE..ASU40200811

main23842-31040i2GRFE..GSU4#200705-201008

23881BBRACKET, FUEL HOSE

main23881-31020i2GRFE..GSU4#200705-201008

main23881-36010i1ARFE..ASU40200811

23891SPACER, FUEL DELIVERY

main23891-37010×2i1ARFE..ASU40200811

23901TUBE SUB-ASSY, FUEL

main23901-31180i2GRFE..GSU4#200705-201007

main23901-31210i2GRFXE..GVU48201008-201402

main23901-36020i1ARFE..ASU40200811-201007

7701FUEL TANK & TUBE

→ Go to FIG 77-01

9046912012

main90469-12012

9155180650

main91551-80650

9155180850

main91551-80850

9162160614

main91621-60614

9167180616

main91671-80616

20 parts on this diagram · 4 diagrams in section
