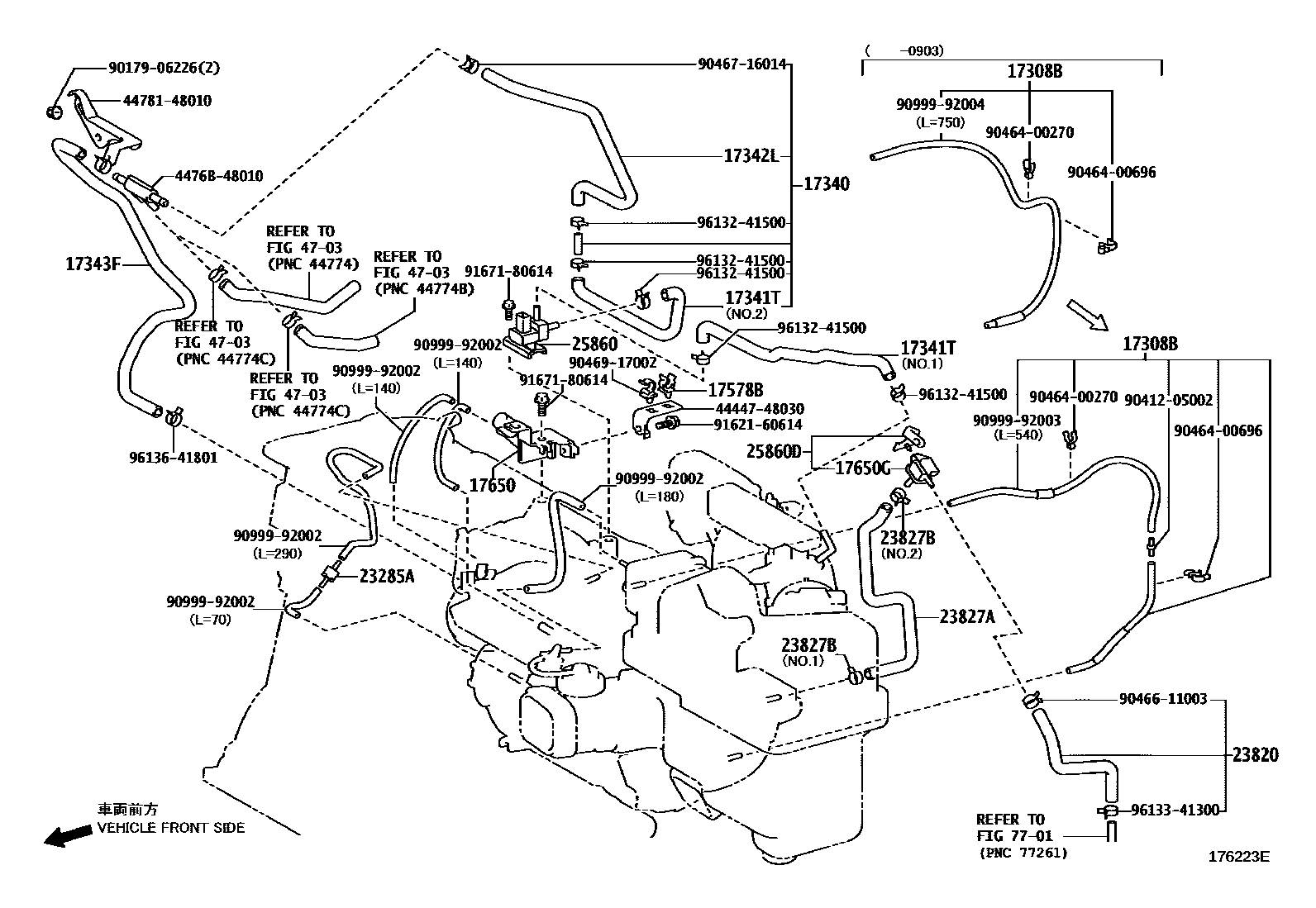

VACUUM PIPING

0001 1 0002 1 0003 1 0004 1

17308HOSE SUB-ASSY, VACUUM(FOR IDLE-UP)

main17308-31040i2GRFE..GSU4#200705-201008

17308BHOSE SUB-ASSY, VACUUM

main17308-31020i2GRFE..GSU4#200705-201008

main17308-36010i1ARFE..ASU40200811

17340HOSE ASSY, VACUUM SWITCHING VALVE

main44770-48070i1ARFE..ASU40200811-201007

17341THOSE, AIR, NO.1

main44726-48010i1ARFE..ASU40200811

NO.1

main44726-48020i1ARFE..ASU40200811

NO.2

17342LHOSE, AIR, NO.2

main44727-48020i1ARFE..ASU40200811

17343FHOSE, AIR, NO.3

main44774-48070i1ARFE..ASU40200811

17578BCLAMP, PIPE

main17578-36010i1ARFE..ASU40200811

17650VALVE ASSY, VACUUM SWITCHING

main25860-36010i1ARFE..ASU40200811

17650GVALVE, DUTY VACUUM SWITCHING

main90910-12204i2GRFE..GSU4#200705-201008

main90910-12259i3MZFE..MHU48200708

MARK 90910-12259

main90910-12272i3MZFE..MHU48200708

MARK 90910-12272

main90910-12276i1ARFE..ASU40200811

23285AVALVE, CHECK, NO.1

main90917-10065i1ARFE..ASU40200811

23820HOSE ASSY, FUEL VAPOR FEED

main23820-20240i3MZFE..MHU48200708-201008

main23820-31150i2GRFE..GSU4#200705-201008

main23820-31230i2GRFXE..GVU48201008-201402

main23820-36010i1ARFE..ASU40200811

23827AHOSE, FUEL VAPOR FEED, NO.2

main23827-20060i3MZFE..MHU48200708

NO.2

main23827-20120i3MZFE..MHU48200708

NO.1

main23827-36030i1ARFE..ASU40200811-201007

23827BCLIP(FOR FUEL VAPOR FEED HOSE, NO.2)

main90466-13004i1ARFE..ASU40200811-201007

NO.1

main96133-41300i1ARFE..ASU40200811-201007

NO.2

25860VALVE ASSY, VACUUM SWITCHING, NO.1

main25860-36020i1ARFE..ASU40200811

25860DVALVE ASSY, VACUUM SWITCHING, NO.2

main25860-36030i1ARFE..ASU40200811

4703BRAKE BOOSTER & VACUUM TUBE

→ Go to FIG 47-03

7701FUEL TANK & TUBE

→ Go to FIG 77-01

4444748030BRACKET, POWER STEERING OIL COOLER TUBE SUPPORT

main44447-48030

4476B48010EJECTOR, BRAKE BOOSTER VACUUM

main4476B-48010

4478148010BRACKET, HOSE

main44781-48010

9017906226

main90179-06226

9041205002

main90412-05002

9046400270

main90464-00270

9046400696

main90464-00696

9046611003

main90466-11003

9046716014

main90467-16014

9046917002

main90469-17002

9099992002

main90999-92002

9099992003

main90999-92003

9099992004

main90999-92004

9162160614

main91621-60614

9167180614

main91671-80614

9613241500

main96132-41500

9613341300

main96133-41300

9613641801

main96136-41801
