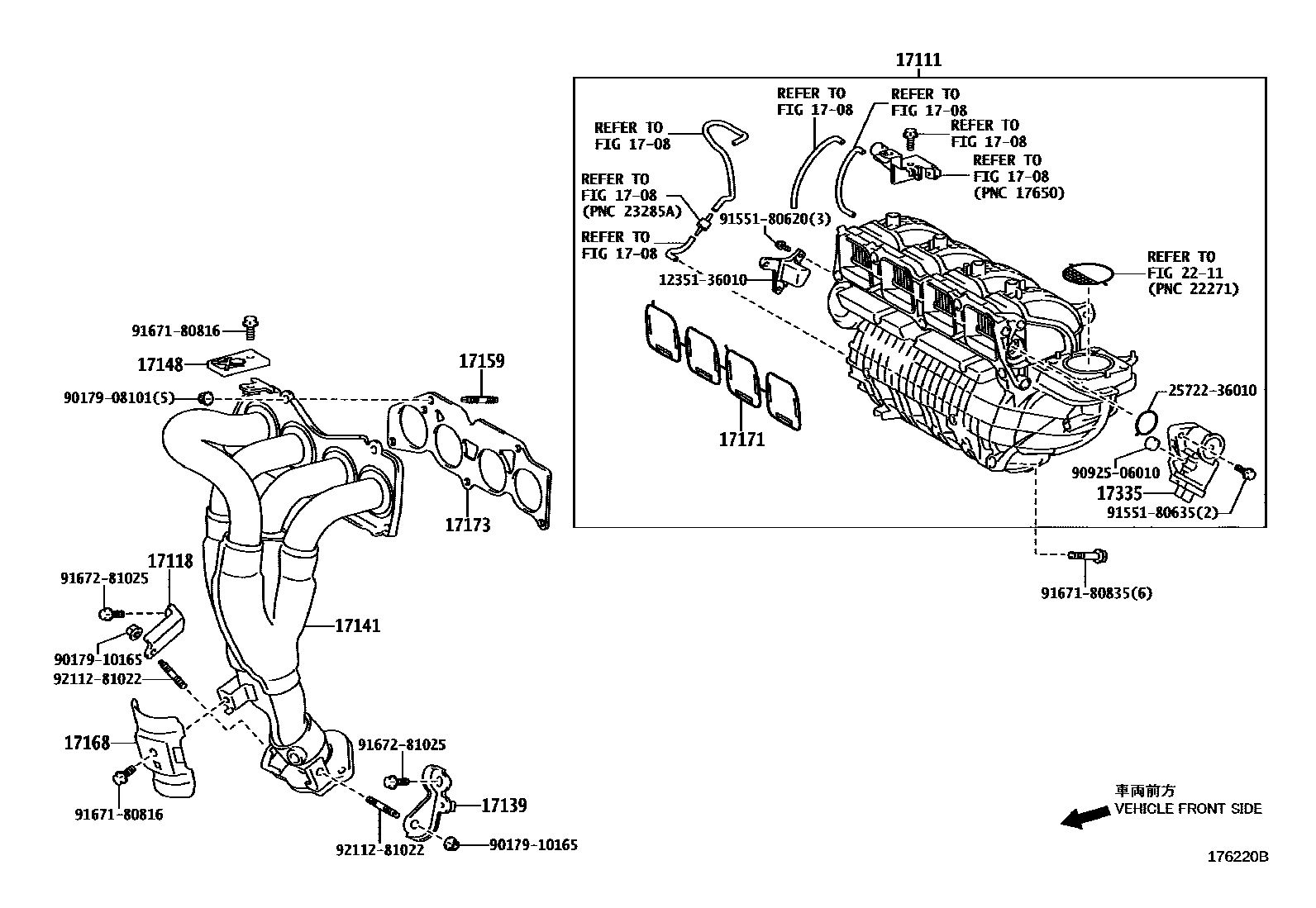

MANIFOLD

0001 1 0002 1 0003 1 0004 1ECUADOR SPEC 0005 1

1708

17111MANIFOLD, INTAKE

main17101-20070i3MZFE..MHU48200708-201008

main17111-31141i2GRFE..GSU4#200705-201008

main17120-36030i1ARFE..ASU40200811

17118STAY, MANIFOLD

main17118-20080i3MZFE..MHU48200708

main17118-31070i2GRFE..GSU4#200705-201008

main17118-31120i2GRFXE..GVU48201008

main17118-36010i1ARFE..ASU40200811

17139STAY, MANIFOLD, NO.2

main17139-20080i3MZFE..MHU48200708

main17139-36030i1ARFE..ASU40200811

17141MANIFOLD, EXHAUST

main17141-36050i1ARFE..ASU40200811

17148PLATE, EXHAUST MANIFOLD(FOR EGR INLET)

main17148-36010i1ARFE..ASU40200811

17159BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)

main90126-08013i3MZFE..MHU48200708-200910

NO.2

main90126-08026i3MZFE..MHU48200910

NO.2

main90126-08037i1ARFE..ASU40200811

main90126-10030i3MZFE..MHU48200708

NO.1

17168INSULATOR, EXHAUST MANIFOLD HEAT, NO.2

main17168-20070i3MZFE..MHU48200708

main17168-31021i2GRFE..GSU4#200705-200811

sub17168-31050

main17168-31050i2GRFXE..GVU48200812-201008

main17168-36020i1ARFE..ASU40200811

17171GASKET, INTAKE TO EXHAUST MANIFOLD

main17171-36010i1ARFE..ASU40200811

17173GASKET, EXHAUST MANIFOLD TO HEAD

main17173-20030i3MZFE..MHU48200708

main17173-31020i2GRFXE..GVU48200705-201008

main17173-36020i1ARFE..ASU40200811

17335ACTUATOR, INTAKE AIR CONTROL VALVE

main17335-36010i1ARFE..ASU40200811

2211

1235136010DAMPER, ENGINE MOUNTING

main12351-36010

2572236010GASKET, ELECTRIC AIR CONTROL VALVE

main25722-36010

9017908101

main90179-08101

9017910165

main90179-10165

9092506010

main90925-06010

9155180620

main91551-80620

9155180635

main91551-80635

9167180816

main91671-80816

9167180835

main91671-80835

9167281025

main91672-81025

9211281022

main92112-81022

23 parts on this diagram · 5 diagrams in section
