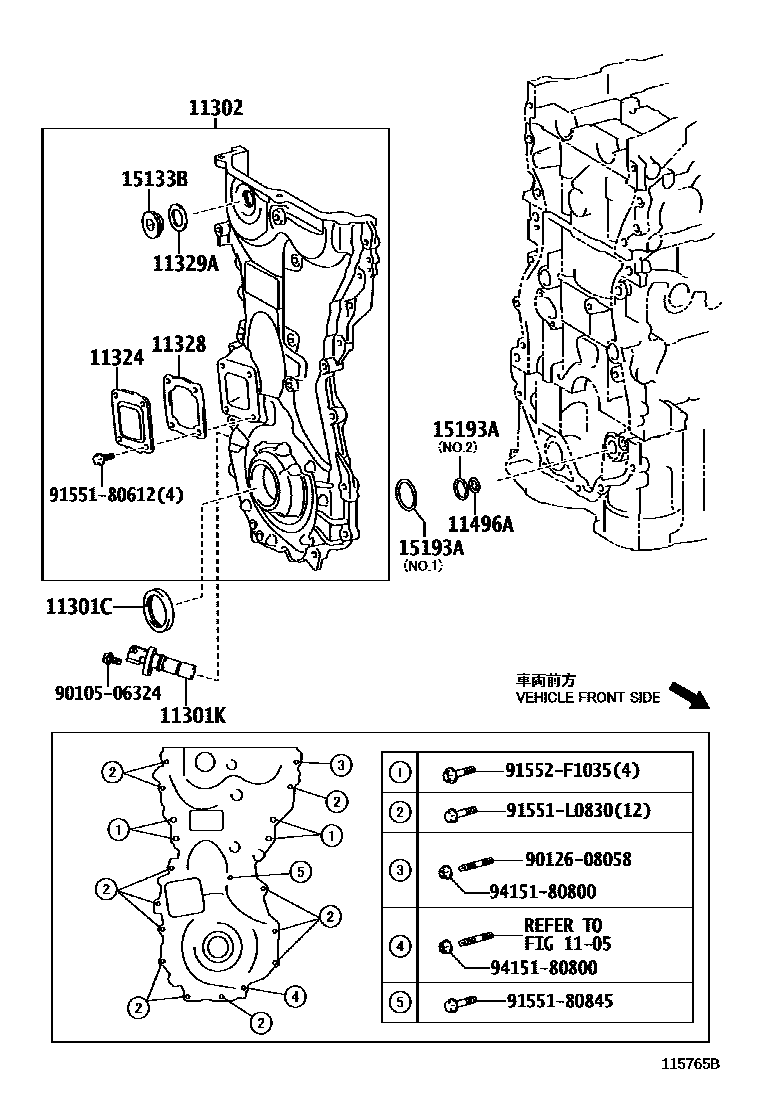

TIMING GEAR COVER & REAR END PLATE

0001 1 0002 1 0003 1

1105CYLINDER BLOCK

→ Go to FIG 11-05

11301CSEAL, OIL(FOR TIMING GEAR CASE OR TIMING CHAIN CASE)

main90311-42037i2GRFE..GSU4#200705-200904

main90311-42043i1ARFE..ASU40200811

main90311-42045i2GRFE..GSU4#200904-201008

11301KSENSOR, CRANK POSITION

main90919-05070i1ARFE..ASU40200811

11302COVER SUB-ASSY, TIMING CHAIN OR BELT

main11310-31020i2GRFE..GSU4#200705-201008

main11310-36020i1ARFE..ASU40200811

11324PLATE, TIMING CHAIN COVER

main11324-31020i2GRFE..GSU4#200705-201008

main11324-36010i1ARFE..ASU40200811

11328GASKET, TIMING GEAR OR CHAIN COVER

main11328-31030i2GRFE..GSU4#200705-201008

main11328-36020i1ARFE..ASU40200811

11329AGASKET, TIMING BELT OR CHAIN COVER, NO.2

main11329-20010i3MZFE..MHU48200708

main11329-36010i1ARFE..ASU40200811

11496AGASKET, OIL HOLE COVER

main11496-36010i1ARFE..ASU40200811

15133BPLUG, OIL PUMP RELIEF VALVE

main15133-36020i1ARFE..ASU40200811

15193AGASKET, OIL PUMP

main15193-36010i1ARFE..ASU40200811

NO.1

main15197-36010i1ARFE..ASU40200811

NO.2

9010506324

main90105-06324

9012608058

main90126-08058

9155180612

main91551-80612

9155180845

main91551-80845

91551L0830

main91551-L0830

91552F1035

main91552-F1035

9415180800

main94151-80800

17 parts on this diagram · 3 diagrams in section
