SHORT BLOCK ASSEMBLY

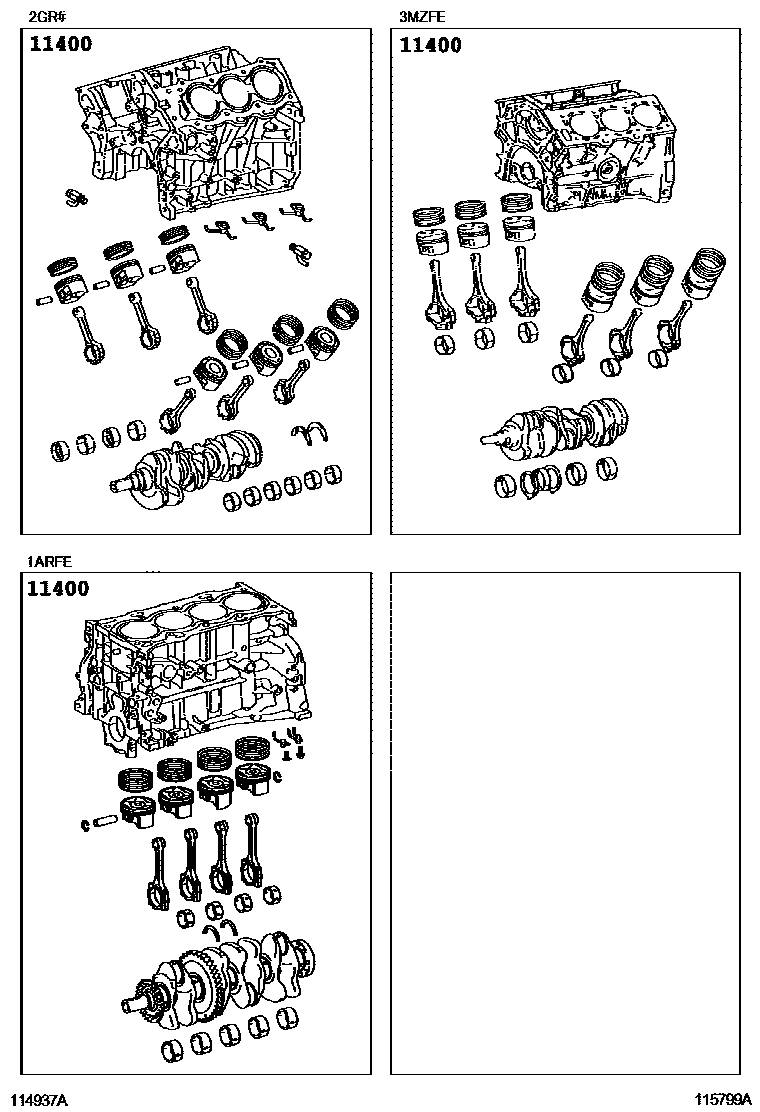

Parts diagram

11400BLOCK ASSY, SHORT

main11400-20260i200708-201008

main11400-31161i200705-200905

main11400-31163i200905-201008

main11400-31270i201008

main11400-36050i200811-201008

1 parts on this diagram · 1 diagram in section
