STANDARD TOOL

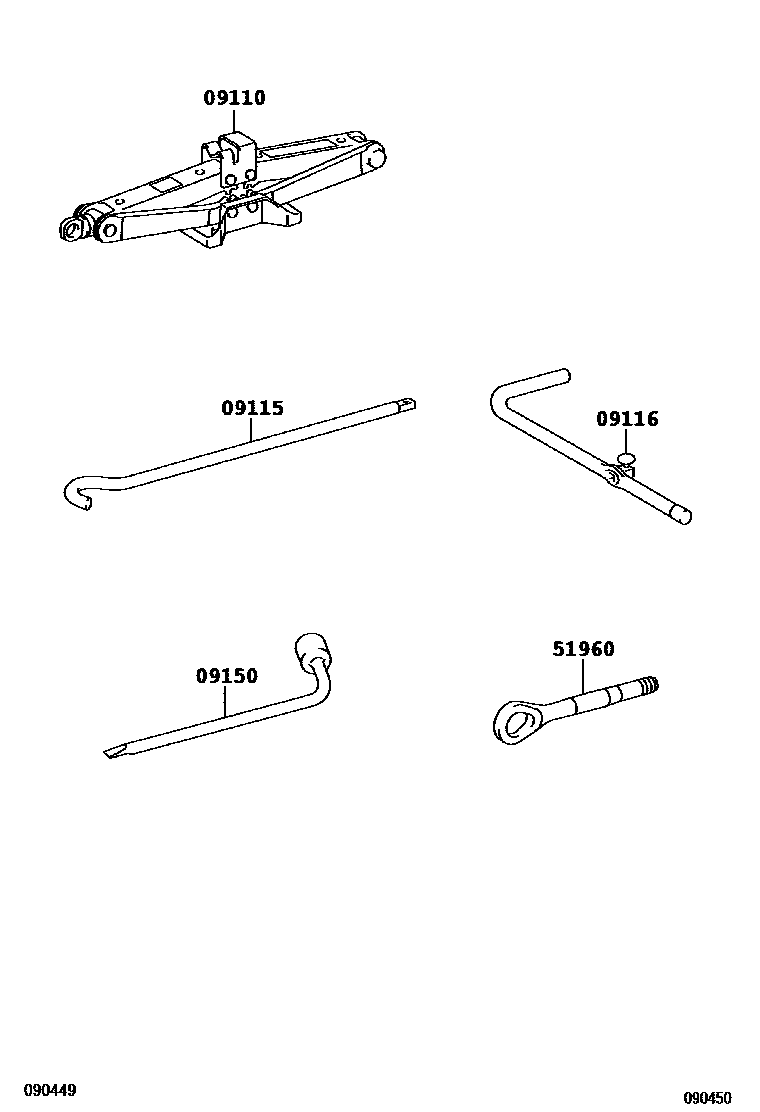

Parts diagram

09110JACK ASSY

main09111-0W110i200705-201008

main09111-0W111i201112-201203

main09111-0W140i201204

09115ROD SUB-ASSY, JACK HANDLE

main09115-48010i200705-201008

09116LEVER, JACK HANDLE

main09116-48010i200705-201008

09150WRENCH, HUB NUT BOX

main09150-26010i200908-201008

main09150-40010i200705-200907

51960HOOK ASSY, FRONT

main51961-30020×2i200705-201008

5 parts on this diagram · 1 diagram in section
