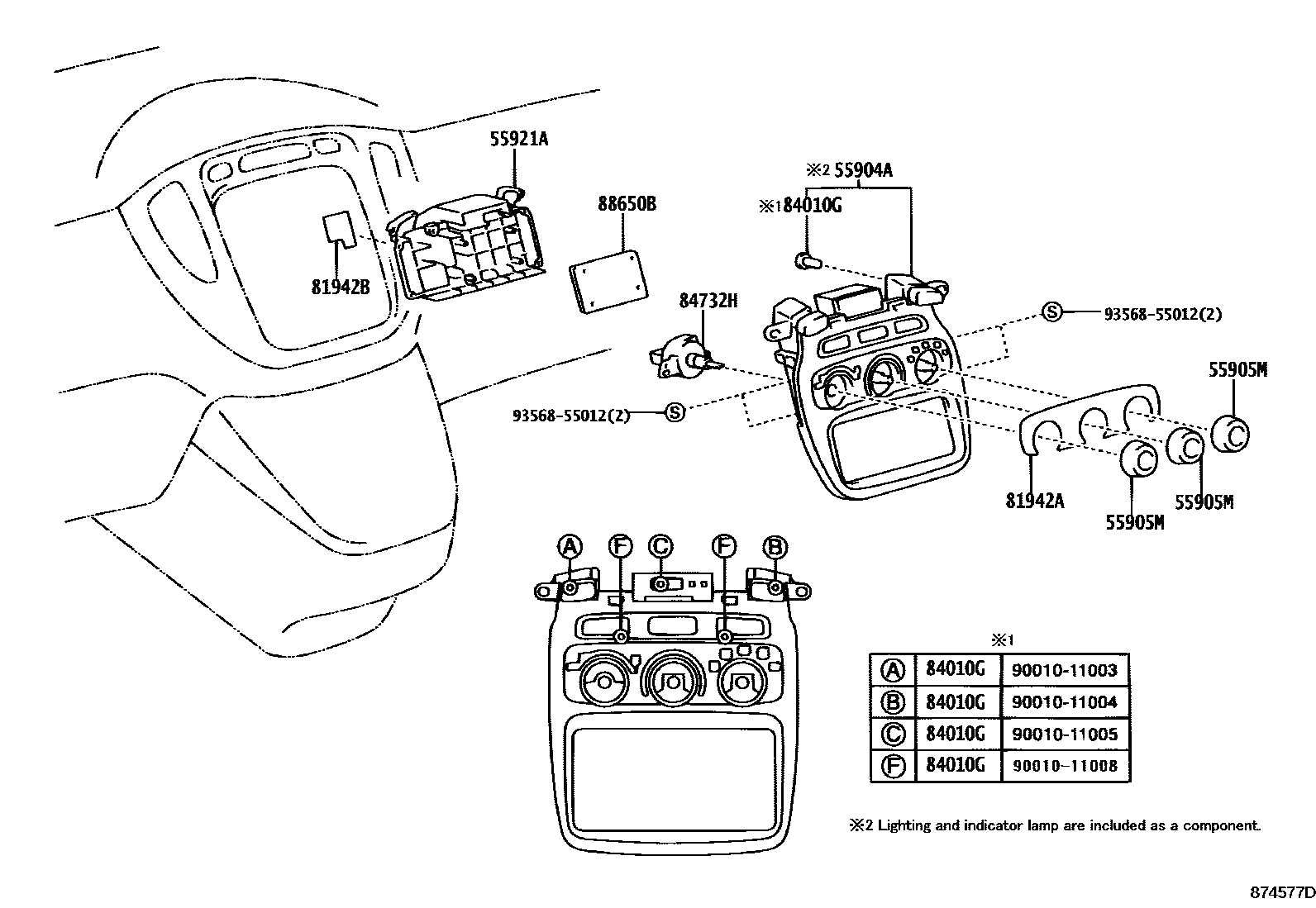

HEATING & AIR CONDITIONING - CONTROL & AIR DUCT
55904AHOUSING SUB-ASSY, HEATER CONTROL
W(AUTO AIR CONDITIONER)
W(AUTO AIR CONDITIONER)
W(AUTO AIR CONDITIONER)
55905MKNOB SUB-ASSY, CONTROL
W(AUTO AIR CONDITIONER)
55921ARETAINER, HEATER CONTROL
W(AUTO AIR CONDITIONER)
W(AUTO AIR CONDITIONER)
81942ASHEET, HEATER CONTROL NAME, NO.1
81942BSHEET, HEATER CONTROL NAME, NO.2
84010GBULB, INTEGRATION CONTROL & PANEL
14V 0.91W,TYPE A:REFER TO ILLUSTRATION
14V 1.4W,TYPE B:REFER TO ILLUSTRATION
8V 1.2W,W(GREEN CAP),TYPE C:REFER TO ILLUSTRATION
14V1.4W,W(GREEN CAP),TYPE D:REFER TO ILLUSTRATION
14V1.4W,W(GREEN CAP),TYPE E:REFER TO ILLUSTRATION
14V1.4W,W(GREEN CAP),TYPE F:REFER TO ILLUSTRATION
84732HSWITCH, HEATER BLOWER
88650BAMPLIFIER ASSY, AIRCONDITIONER
W(AUTO AIR CONDITIONER)
W(AUTO AIR CONDITIONER)
W(AUTO AIR CONDITIONER)
W(AUTO AIR CONDITIONER)
W(ELECTRO MULTI VISION)
W(ELECTRO MULTI VISION)
9356855012
main93568-55012
9 parts on this diagram · 6 diagrams in section
