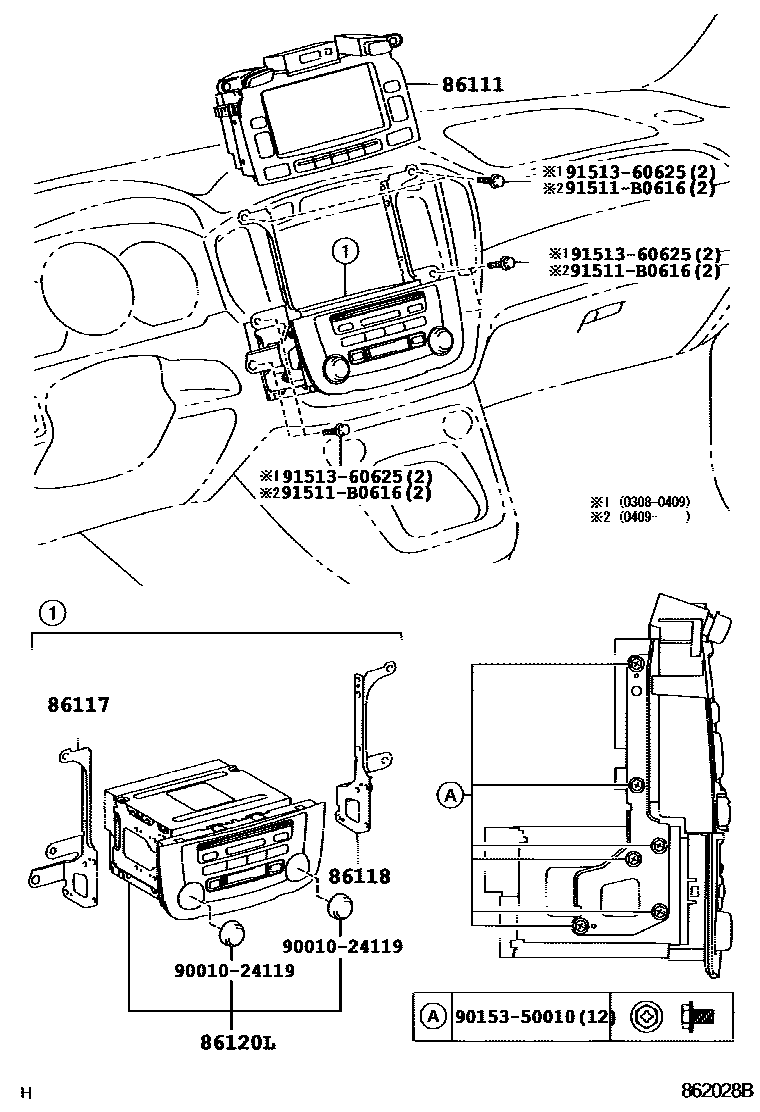

NAVIGATION & FRONT MONITOR DISPLAY

0001 1 0002 1

86111MULTI-DISPLAY

main86111-48060iMCU2#200308-200705

DENSO

86117BRACKET, MULTI-DISPLAY CONTROLLER, A

main86117-48050iMCU2#200308

86118BRACKET, MULTI-DISPLAY CONTROLER, B

main86118-48040iMCU2#200308

86120LRECEIVER ASSY, NAVIGATION

main86120-48480iMCU2#200308

MATSUSHITA,ID=A56833

9001024119

main90010-24119

9015350010

main90153-50010

91511B0616

main91511-B0616

9151360625

main91513-60625

8 parts on this diagram · 2 diagrams in section
