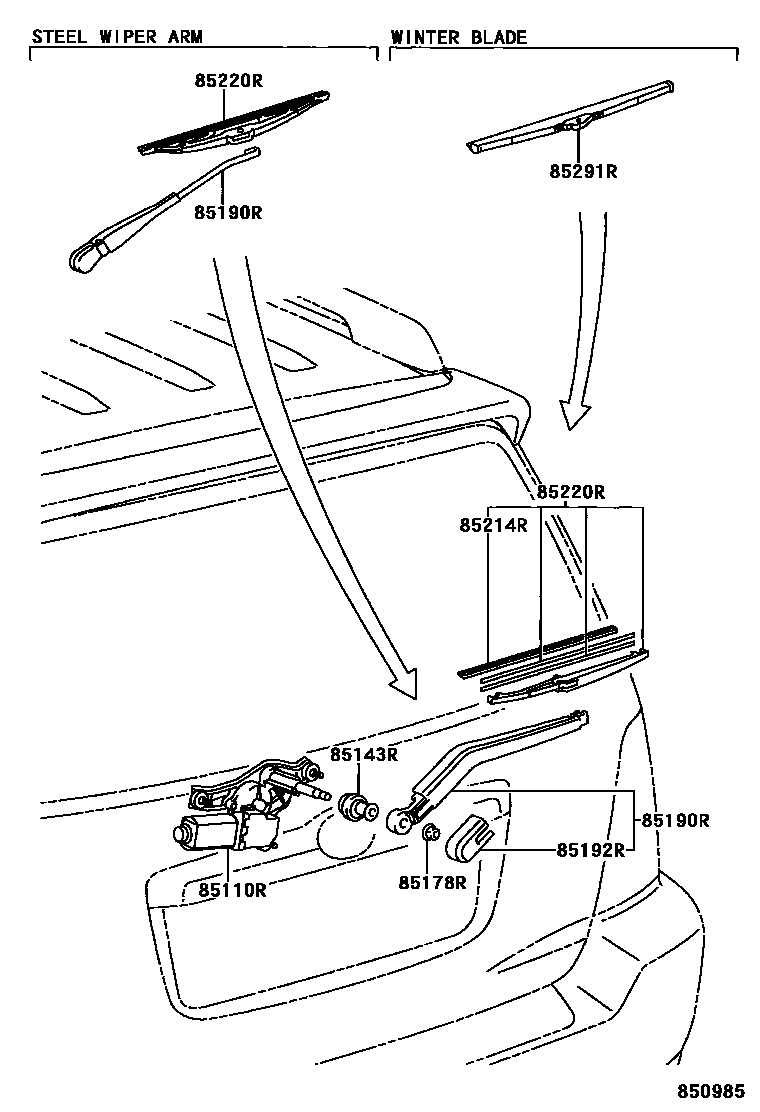

REAR WIPER

0001 1 0002 1

85110RMOTOR ASSY, REAR WIPER

main85130-48020iACU2#,MCU2#200011-200308

85143RGROMMET, REAR WIPER MOTOR

main85143-48010iACU2#,MCU2#200011-200308

85178RNUT (FOR REAR WIPER ARM SETTING)

main90179-06158iACU2#,MCU2#200011-200308

85190RARM ASSY, REAR WIPER

main85241-48020iACU2#,MCU2#200011-200308

main85241-48030iACU2#,MCU2#200107-200308

STEEL WIPER ARM

main85241-48080iACU2#,MCU2#200308

85192RCOVER, REAR WIPER ARM

main85292-28030iACU2#,MCU2#200011-200308

main85292-35010iACU2#,MCU2#200308

85214RRUBBER, REAR WIPER

main85214-31010iACU2#,MCU2#200011-200308

85220RBLADE ASSY, REAR WIPER

main85242-31011iACU2#,MCU2#200107-200308

W(STEEL WIPER ARM)

main85242-48020iACU2#,MCU2#200011-200308

85291RBLADE,REAR WIPER, WINTER

main85291-33020iACU2#,MCU2#200107-200308

W(STEEL WIPER ARM)

main85291-42020iACU2#,MCU2#200011-200308

8 parts on this diagram · 2 diagrams in section
