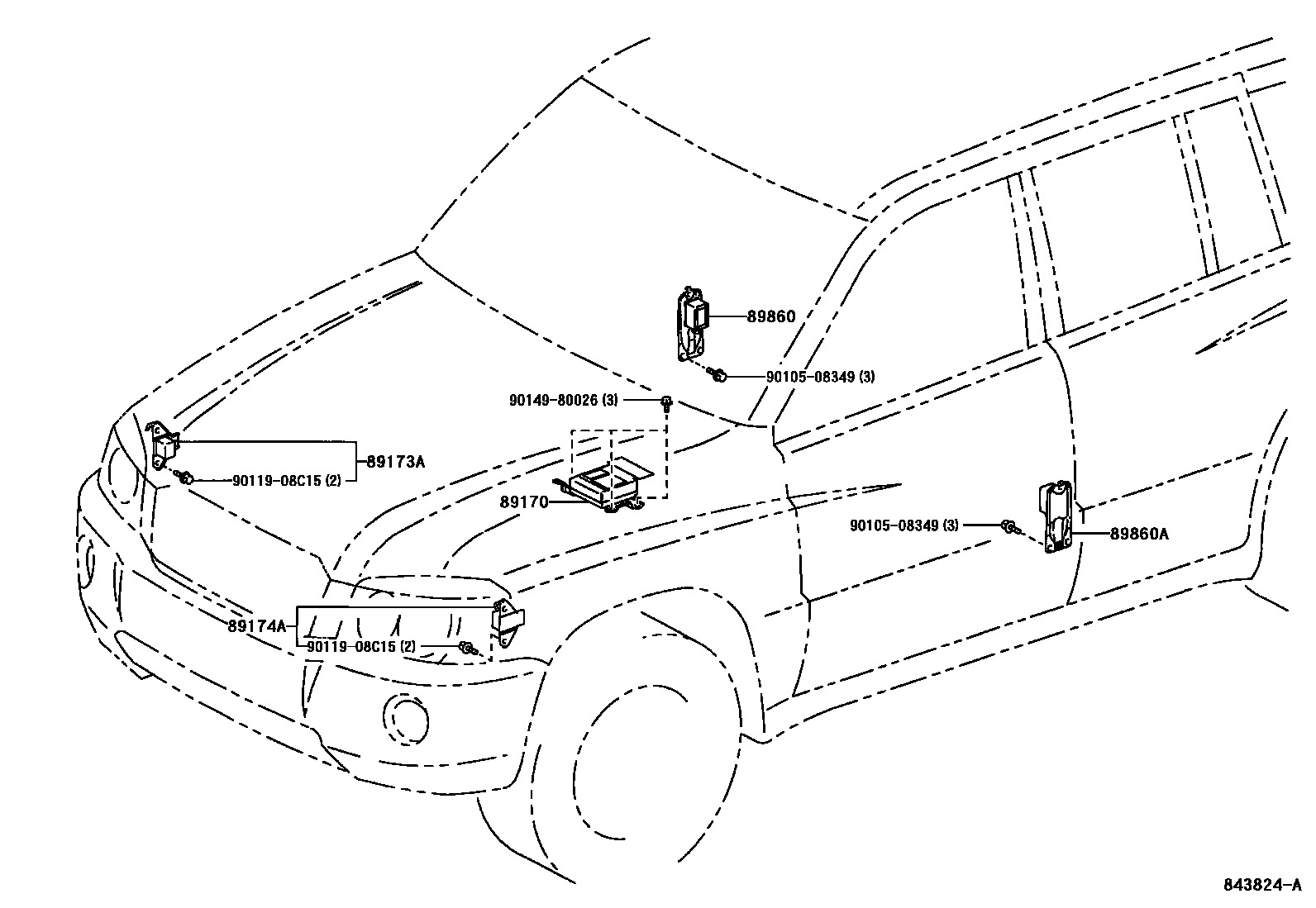

AIR BAG

0001 1 0002 1

89170SENSOR ASSY, AIRBAG

main89170-48010iACU2#,MCU2#200011-200304

W(SRS SIDE AIR BAG)

main89170-48011iACU2#,MCU2#200304-200308

W(SRS SIDE AIR BAG)

main89170-48020iACU2#,MCU2#200011-200308

main89170-48090iACU2#,MCU2#200308-200608

main89170-48110iACU2#,MCU2#200308-200408

W(SRS CURTAIN SHIELD AIR BAG & SRS SIDE AIR BAG)

main89170-48220iACU2#,MCU2#200408-200606

W(SRS CURTAIN SHIELD AIR BAG & SRS SIDE AIR BAG)

main89170-48221iACU2#,MCU2#200607

W(SRS CURTAIN SHIELD AIR BAG & SRS SIDE AIR BAG)

89173ASENSOR, AIRBAG, FRONT RH

main89173-49265iACU2#,MCU2#200011-200308

main89173-49295iACU2#,MCU2#200308

89174ASENSOR, AIRBAG, FRONT LH

main89173-49295iACU2#,MCU2#200308

main89174-49115iACU2#,MCU2#200011-200308

89860SENSOR ASSY, SIDE AIRBAG, RH

main89860-48010iACU2#,MCU2#200011-200308

main89860-48030iACU2#,MCU2#200308

89860ASENSOR ASSY, SIDE AIRBAG, LH

main89860-48010iACU2#,MCU2#200011-200308

main89860-48030iACU2#,MCU2#200308

9010508349

main90105-08349

9011908C15

main90119-08C15

9014980026

main90149-80026

8 parts on this diagram · 2 diagrams in section
