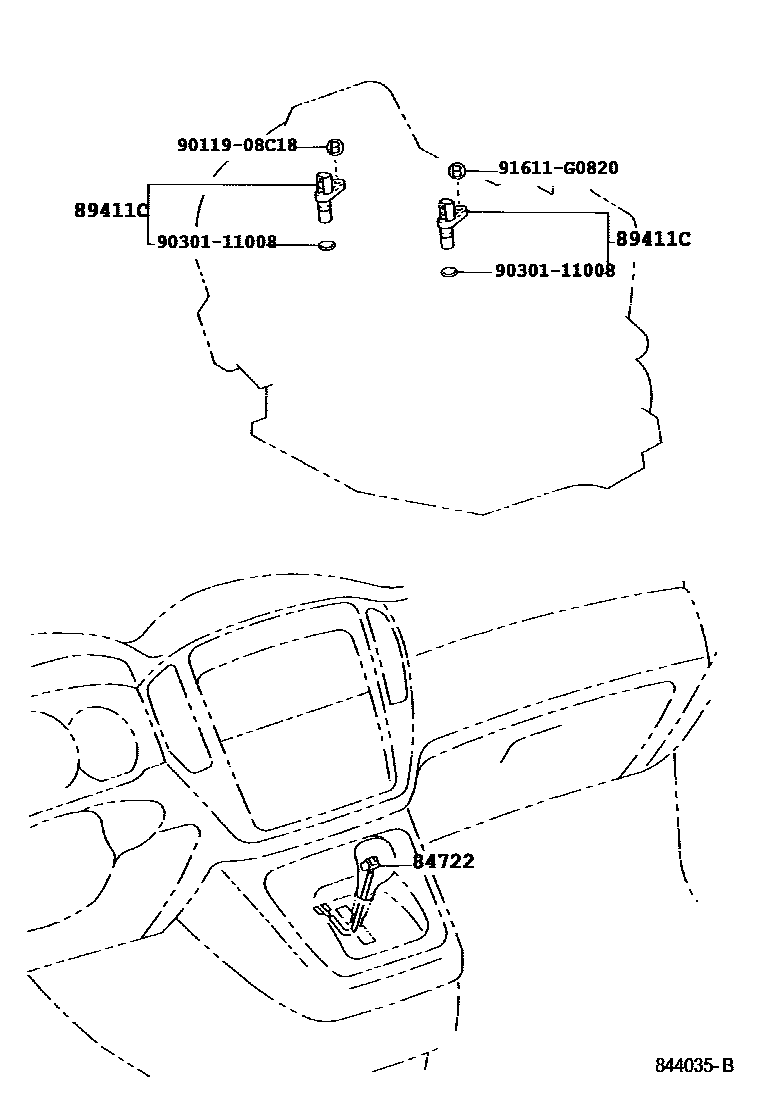

OVERDRIVE & ELECTRONIC CONTROLLED TRANSMISSION

0001 1 0003 1

84722SWITCH, TRANSMISSION CONTROL

main84722-48030-B1iACU2#,MCU2#200011-200308

SADDLE GRAY,TRIM0#,1#

main84722-48070-B0iACU2#,MCU2#200308-200705

SADDLE GRAY,TRIM1#

main84722-48070-E0iACU2#,MCU2#200308-200705

SANDAL WOOD,TRIM0#

89411CSENSOR, SPEED

main89411-33010×2iACU2#200308-200309

TOYOTA

main89413-24010×2iACU2#; MCU2#200308-200705

AISIN

main89413-48010iMCU2#200308-200705

NO.1,TOYOTA

9011908C18

main90119-08C18

9030111008

main90301-11008

91611G0820

main91611-G0820

5 parts on this diagram · 2 diagrams in section
