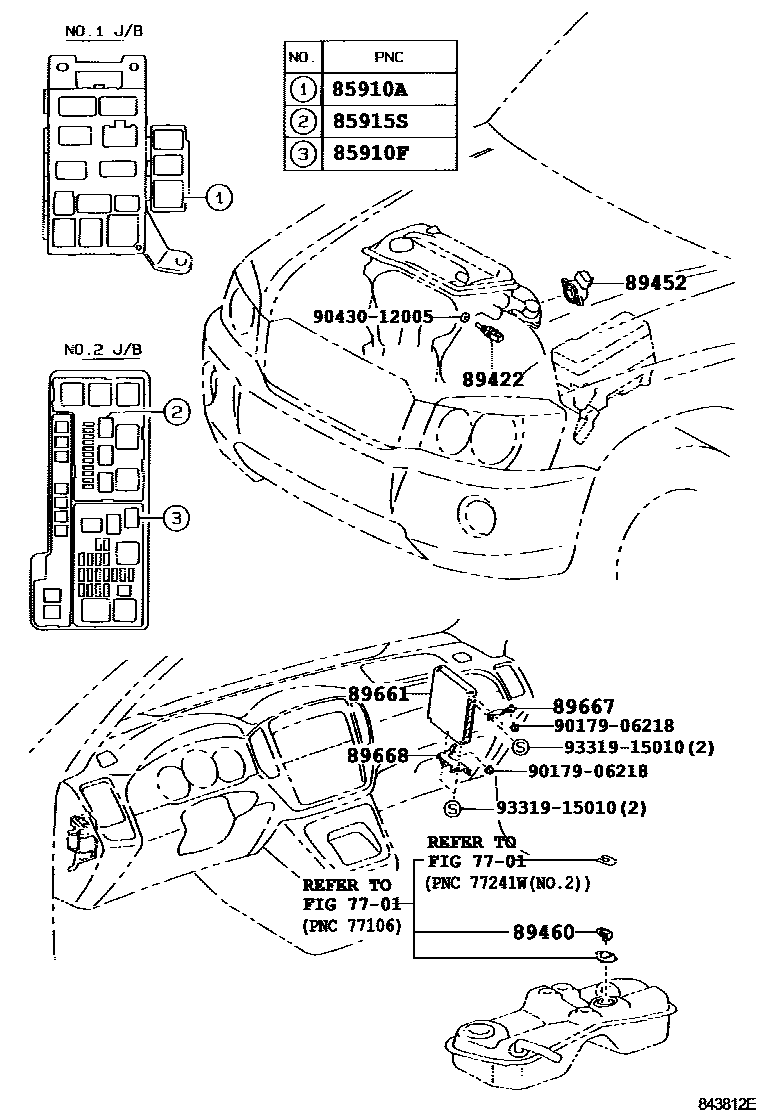

Toyota HIGHLANDER 522 — ELECTRONIC FUEL INJECTION SYSTEM
7701FUEL TANK & TUBE
85910ARELAY ASSY, CIRCUIT OPENING (FOR EFI)
85910FRELAY, COMPUTER (FOR EFI)
85915SRELAY, HEATER (FOR AIR FUEL RATIO SENSOR)
89452SENSOR, THROTTLE POSITION (FOR E.F.I.)
89460SENSOR ASSY, VAPOR PRESSURE
89661COMPUTER, ENGINE CONTROL
89668BRACKET, ENGINE CONTROL COMPUTER, NO.2
9017906218
9043012005
9331915010
13 parts on this diagram · 4 diagrams in section
ELECTRONIC FUEL INJECTION SYSTEM for Toyota HIGHLANDER 522
This section contains 15 genuine Toyota parts for the ELECTRONIC FUEL INJECTION SYSTEM system of the Toyota HIGHLANDER 522. Key components include: FUEL TANK & TUBE, SWITCH & RELAY & COMPUTER, RELAY ASSY, CIRCUIT OPENING (FOR EFI), RELAY, COMPUTER (FOR EFI), RELAY, HEATER (FOR AIR FUEL RATIO SENSOR).
