INTERIOR LAMP

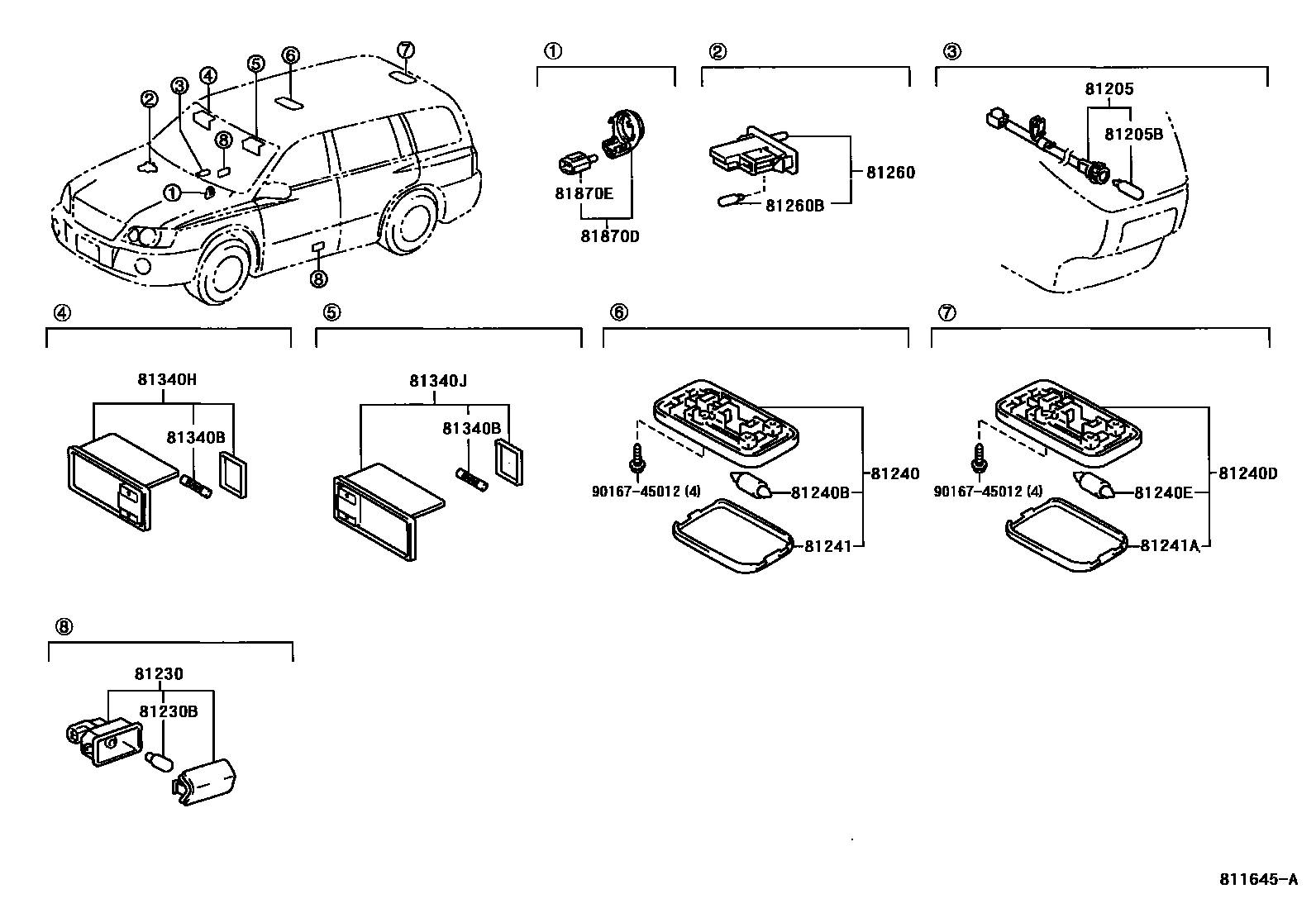

Parts diagram

81205LAMP SUB-ASSY, ASH RECEPTACLE

main81850-48040i200011-200308

81205BBULB, ASH RECEPTACLE LAMP

main90981-11014i200011-200308

14V 1.4W

81230LAMP ASSY, COURTESY

main81230-48010×2i200011-200308

81230BBULB(FOR COURTESY LAMP)

main90981-12010×2i200011-200308

12V 5W

81240LAMP ASSY, ROOM, NO.1

main81240-22120-A1i200011-200308

IVORY,TRIM0#

main81240-22120-B4i200011-200308

MD.CHARCOAL,TRIM1#

main81240-33030-A0i200308-200705

IVORY,TRIM0#

main81240-33030-B3i200308-200705

GRAY,TRIM1#

81240BBULB, ROOM LAMP, NO.1

main90981-14004i200011-200308

12V 8W

main90981-14011i200308

12V 8W

81240DLAMP ASSY, ROOM, NO.2

main81240-22120-A1i200011-200308

IVORY,TRIM0#

main81240-22120-B4i200011-200308

MD.CHARCOAL,TRIM1#

main81240-33030-A0i200308-200705

IVORY,TRIM0#

main81240-33030-B3i200308-200705

GRAY,TRIM1#

81240EBULB, ROOM LAMP, NO.2

main90981-14004i200011-200308

12V 8W

main90981-14011i200308

12V 8W

81241LENS, ROOM LAMP, NO.1

main81241-32031i200011-200308

main81241-33030i200308

81241ALENS, ROOM LAMP, NO.2

main81241-32031i200011-200308

main81241-33030i200308

81260LAMP ASSY, GLOVE BOX

main81260-22160i200011-200212

main81260-33030i200212-200308

main81260-33040i200409

81260BBULB(FOR GLOVE BOX)

main90981-11018i200011-200308

12V 1.2W W/O SOCKET

81340BBULB (FOR VANITY LAMP)

main90981-14003×2i200011-200308

12V 1.5W

81340HLAMP ASSY, VANITY, RH

main81340-33090-A1i200011-200308

IVORY,TRIM0#

main81340-33090-B3i200011-200308

MD.CHARCOAL,TRIM1#

81340JLAMP ASSY, VANITY, LH

main81350-33050-A1i200011-200308

IVORY,TRIM0#

main81350-33050-B2i200011-200308

MD.CHARCOAL,TRIM1#

81870DLAMP ASSY, KEY CYLINDER

main81870-48030i200011-200308

81870EBULB, KEY CYLINDER LAMP

main90010-01056i200011-200308

14V 1.4W

9016745012

main90167-45012

18 parts on this diagram · 2 diagrams in section
