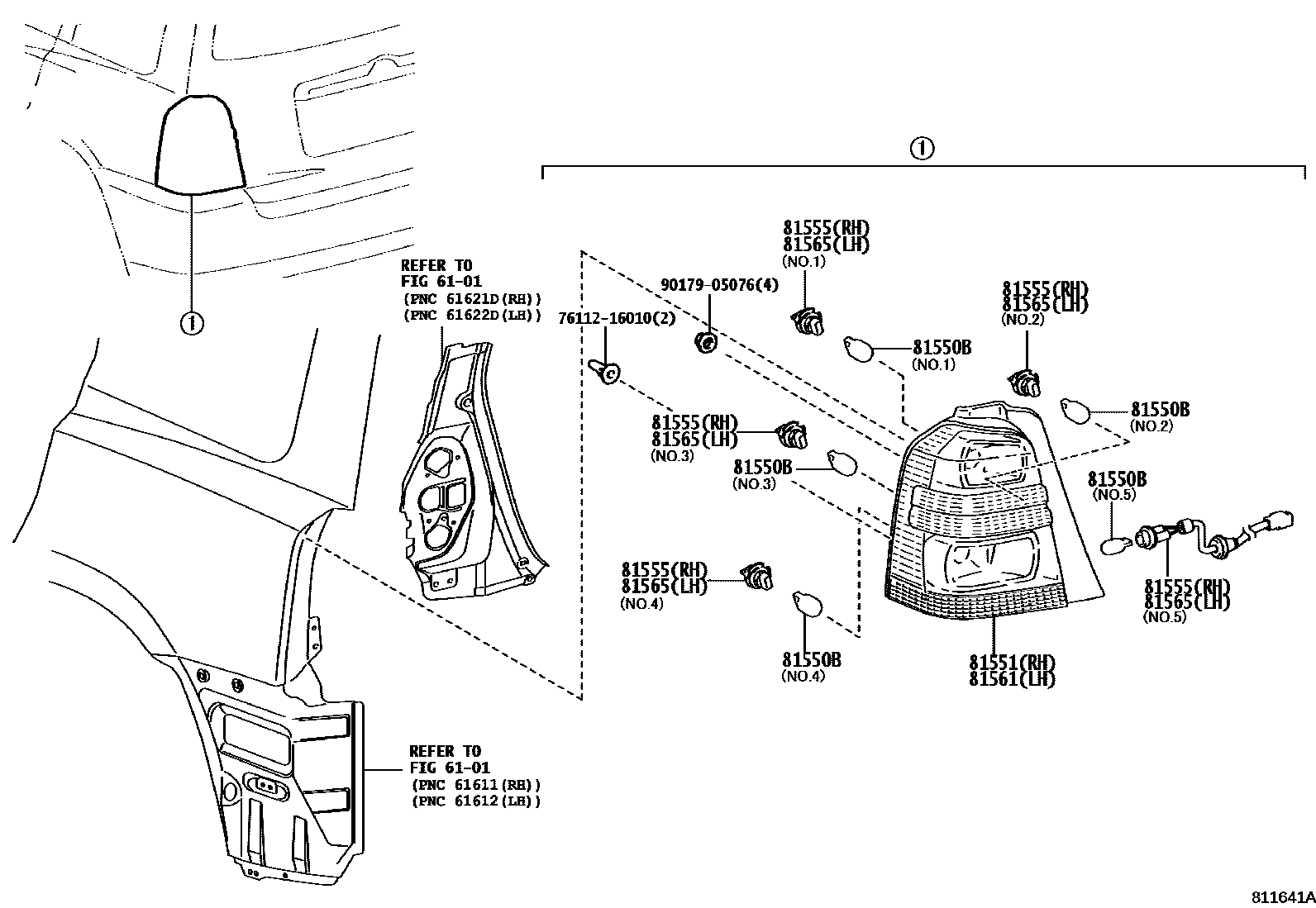

REAR COMBINATION LAMP
6101SIDE MEMBER
81550BBULB(FOR REAR COMBINATION LAMP)
12V 5W,NO.5
12V 21W,NO.2
12V 21/5W,NO.1,4
12V 21W,AMBER,NO.3
81551LENS, REAR COMBINATION LAMP, RH
81555SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH
NO.5
NO.5
NO.1,4
NO.3
NO.2
81561LENS, REAR COMBINATION LAMP, LH
81565SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH
NO.5
NO.1,4
NO.3
NO.2
7611216010
main76112-16010
9017905076
main90179-05076
8 parts on this diagram · 2 diagrams in section
