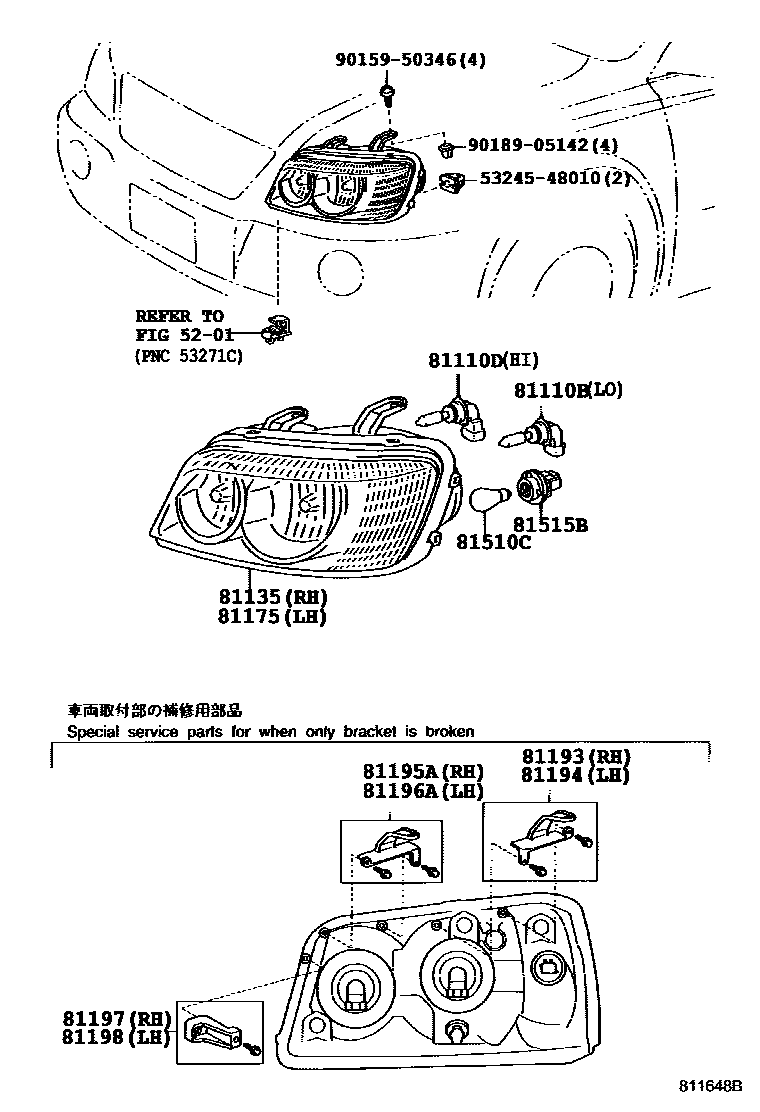

HEADLAMP

0001 1 0002 1

5201FRONT BUMPER & BUMPER STAY

→ Go to FIG 52-01

81110BBULB(FOR HEADLAMP, NO.1)

main90080-81040×2iACU2#,MCU2#200011-200308

12V 51W

main90981-13047×2iACU2#,MCU2#200308

12V 51W,HALOGEN

81110DBULB(FOR HEADLAMP, NO.2)

main90080-81041×2iACU2#,MCU2#200011-200308

12V 65W

main90981-13046×2iACU2#,MCU2#200308-200705

12V65W(SAE),60W(ECE)

81135UNIT ASSY, HEADLAMP, RH

main81130-48150iACU2#,MCU2#200011-200308

main81130-48280iACU2#,MCU2#200308-200608

main81130-48550iACU2#,MCU2#200608

81175UNIT ASSY, HEADLAMP, LH

main81170-48150iACU2#,MCU2#200011-200308

main81170-48280iACU2#,MCU2#200308-200608

main81170-48550iACU2#,MCU2#200608

81193RETAINER, HEADLAMP PROTECTOR, UPPER RH

main81193-48020iACU2#,MCU2#200011-200308

81194RETAINER, HEADLAMP PROTECTOR, UPPER LH

main81194-48020iACU2#,MCU2#200011-200308

81195ARETAINER, HEADLAMP PROTECTOR, LOWER RH

main81195-48030iACU2#,MCU2#200011-200308

81196ARETAINER, HEADLAMP PROTECTOR, LOWER LH

main81196-48030iACU2#,MCU2#200011-200308

81197BRACKET, HEADLAMP, LOWER RH

main81197-48010iACU2#,MCU2#200011-200308

81198BRACKET, HEADLAMP, LWR LH

main81198-48010iACU2#,MCU2#200011-200308

81510CBULB (FOR FRONT TURN SIGNAL LAMP)

main99132-21210×2iACU2#,MCU2#200011-200308

12V 21/5W

81515BSOCKET, FRONT TURN SIGNAL LAMP

main90075-99106×2iACU2#,MCU2#200011-200308

5324548010BRACKET, HEADLAMP, RH

main53245-48010

9015950346

main90159-50346

9018905142

main90189-05142

16 parts on this diagram · 2 diagrams in section
