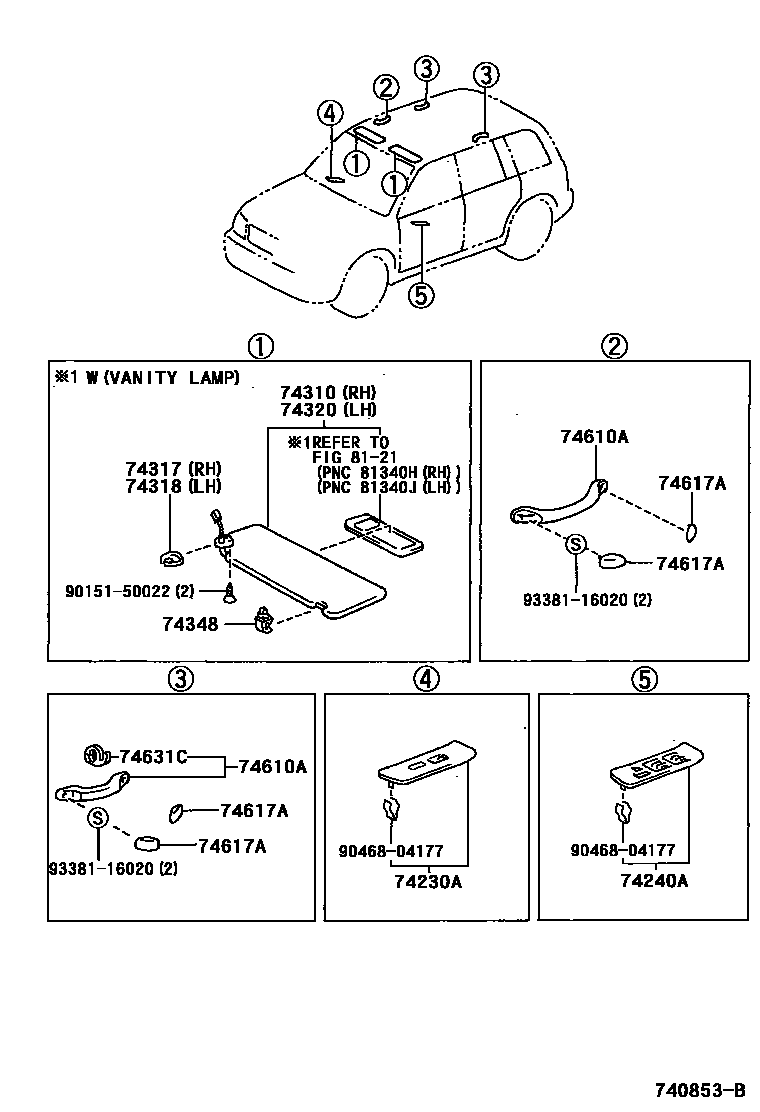

ARMREST & VISOR

0001 1 0002 1

74230APANEL ASSY, FRONT DOOR ARMREST BASE, RH

main74230-48100-B0iACU2#,MCU2#200011-200308

SADDLE GRAY,TRIM0#,1#

main74230-48100-E0iACU2#,MCU2#200308-200705

SANDAL WOOD,TRIM0#

main74230-48110-E0iMCU2#200011-200308

LIMITED(USA),BROWN,TRIM0#,1#

main74230-48110-E1iMCU2#200308-200705

LIMITED(USA),BROWN MOKUME,TRIM0#,1#

74240APANEL ASSY, FRONT DOOR ARMREST BASE, LH

main74240-48100-B0iACU2#,MCU2#200308-200705

SADDLE GRAY,TRIM1#

main74240-48100-E0iACU2#,MCU2#200308-200705

SANDAL WOOD,TRIM0#

main74240-48110-E0iMCU2#200011-200308

LIMITED(USA),BROWN,TRIM0#,1#

main74240-48110-E1iMCU2#200308-200705

LIMITED(USA),BROWN MOKUME,TRIM0#,1#

74310VISOR ASSY, RH

main74310-48090-A0iACU2#,MCU2#200011-200308

IVORY,TRIM0#

main74310-48090-B0iACU2#,MCU2#200011-200308

MD.CHARCOAL,TRIM1#

main74310-48100-A0iACU2#,MCU2#200011-200308

W(VANITY LAMP),IVORY,TRIM0#

main74310-48100-B0iACU2#,MCU2#200011-200308

W(VANITY LAMP),MD.CHARCOAL,TRIM1#

main74310-48220-A0iACU2#,MCU2#200308-200705

IVORY,TRIM0#

main74310-48220-B0iACU2#,MCU2#200308-200705

GRAY,TRIM1#

main74310-48230-A0iACU2#,MCU2#200308-200705

W(VANITY LAMP),IVORY,TRIM0#

main74310-48230-B0iACU2#,MCU2#200308-200705

W(VANITY LAMP),GRAY,TRIM1#

74317COVER, VISOR BRACKET, RH

main74317-30010-A1iACU2#,MCU2#200011-200308

IVORY,TRIM0#

main74317-30010-B3iACU2#,MCU2#200011-200308

MD.CHARCOAL,TRIM1#

main74317-30010-B6iACU2#,MCU2#200308-200705

GRAY,TRIM1#

74318COVER, VISOR BRACKET, LH

main74317-30010-A1iACU2#,MCU2#200011-200308

IVORY,TRIM0#

main74317-30010-B3iACU2#,MCU2#200011-200308

MD.CHARCOAL,TRIM1#

main74317-30010-B6iACU2#,MCU2#200308-200705

GRAY,TRIM1#

74320VISOR ASSY, LH

main74320-48110-A0iACU2#,MCU2#200011-200308

IVORY,TRIM0#

main74320-48110-B0iACU2#,MCU2#200011-200308

MD.CHARCOAL,TRIM1#

main74320-48120-A0iACU2#,MCU2#200011-200308

W(GARAGE DOOR OPENER),IVORY,TRIM0#

main74320-48120-B0iACU2#,MCU2#200011-200308

W(GARAGE DOOR OPENER),MD.CHARCOAL,TRIM1#

main74320-48260-A0iACU2#,MCU2#200308-200705

IVORY,TRIM0#

main74320-48260-B0iACU2#,MCU2#200308-200705

GRAY,TRIM1#

main74320-48270-A0iACU2#,MCU2#200308-200705

W(VANITY LAMP),IVORY,TRIM0#

main74320-48270-B0iACU2#,MCU2#200308-200705

W(VANITY LAMP),GRAY,TRIM1#

74348HOLDER, VISOR

main74348-12040-A0×2iACU2#,MCU2#200011-200308

IVORY,TRIM0#

main74348-12040-B1×2iACU2#,MCU2#200011-200308

MD.CHARCOAL,TRIM1#

main74348-12040-B4×2iACU2#,MCU2#200308-200705

GRAY,TRIM1#

74610AGRIP SUB-ASSY, ASSIST

main74610-48010-A0×2iACU2#,MCU2#200011-200308

IVORY,TRIM0#,FRONT

main74610-48010-B2×2iACU2#,MCU2#200011-200308

MD.CHARCOAL,TRIM1#,FRONT

main74610-48020-A0×2iACU2#,MCU2#200011-200308

IVORY,TRIM0#,REAR

main74610-48020-B1×2iACU2#,MCU2#200011-200308

MD.CHARCOAL,TRIM1#,REAR

main74611-48010-A0×4iACU2#,MCU2#200308-200705

IVORY,TRIM0#

main74611-48010-B0×4iACU2#,MCU2#200308-200705

GRAY,TRIM1#

74617APLUG, ASSIST GRIP

main74617-95D00-A0×8iACU2#,MCU2#200011-200308

IVORY,TRIM0#

main74617-95D00-B3×8iACU2#,MCU2#200011-200308

MD.CHARCOAL,TRIM1#

74631CHOOK, COAT

main74631-28010-A0×2iACU2#,MCU2#200011-200308

IVORY,TRIM0#

main74631-28010-B4×2iACU2#,MCU2#200011-200308

MD.CHARCOAL,TRIM1#

main74631-48010-A0×2iACU2#,MCU2#200308-200705

IVORY,TRIM0#

main74631-48010-B0×2iACU2#,MCU2#200308-200705

GRAY,TRIM1#

8121INTERIOR LAMP

→ Go to FIG 81-21

9015150022

main90151-50022

9046804177

main90468-04177

9338116020

main93381-16020

14 parts on this diagram · 2 diagrams in section
