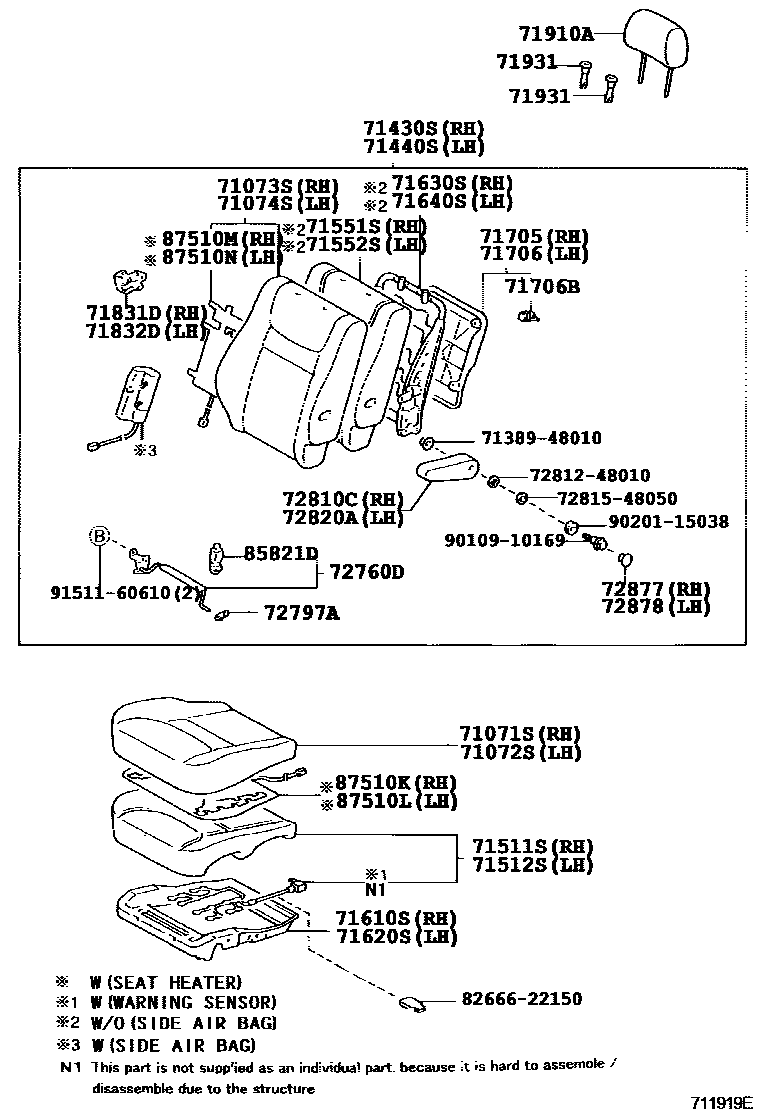

FRONT SEAT & SEAT TRACK
71071SCOVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
SEAT = TYPE A-*104,IVORY,TRIM0#
SEAT = TYPE A-*104 & W(SEAT HEATER),IVORY,TRIM0#
SEAT = TYPE B-*104,IVORY,TRIM0#
SEAT = TYPE B-*104,CHARCOAL,TRIM1#
W(POWER SEAT),IVORY,TRIM0#
W(POWER SEAT),GRAY,TRIM1#
LEATHER SEAT & W(POWER SEAT),IVORY,TRIM0#
LEATHER SEAT & W(POWER SEAT),GRAY,TRIM1#
IVORY,TRIM0#
GRAY,TRIM1#
LEATHER SEAT & W(SEAT HEATER),IVORY,TRIM0#
LEATHER SEAT & W(SEAT HEATER),GRAY,TRIM1#
LEATHER SEAT,IVORY,TRIM0#
LEATHER SEAT,GRAY,TRIM1#
LEATHER SEAT & W(POWER SEAT & SEAT HEATER),IVORY,TRIM0#
LEATHER SEAT & W(POWER SEAT & SEAT HEATER),GRAY,TRIM1#
71072SCOVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)
SEAT = TYPE A-*104,IVORY,TRIM0#
SEAT = TYPE A-*104 & W(SEAT HEATER),IVORY,TRIM0#
SEAT = TYPE B-*104,IVORY,TRIM0#
SEAT = TYPE B-*104,CHARCOAL,TRIM1#
SEAT = TYPE B-*104 & W(POWER SEAT),IVORY,TRIM0#
SEAT = TYPE B-*104 & W(POWER SEAT),CHARCOAL,TRIM1#
IVORY,TRIM0#
GRAY,TRIM1#
LEATHER SEAT & W(POWER SEAT & SEAT HEATER),IVORY,TRIM0#
LEATHER SEAT & W(POWER SEAT & SEAT HEATER),GRAY,TRIM1#
LEATHER SEAT & W(POWER SEAT),IVORY,TRIM0#
LEATHER SEAT & W(POWER SEAT),GRAY,TRIM1#
W(POWER SEAT),IVORY,TRIM0#
W(POWER SEAT),GRAY,TRIM1#
71073SCOVER, FRONT SEATBACK, RH(FOR SEPARATE TYPE)
SEAT = TYPE B-*104,IVORY,TRIM0#
SEAT = TYPE B-*104,CHARCOAL,TRIM1#
SEAT = TYPE B-*104 & W(SIDE AIR BAG),IVORY,TRIM0#
SEAT = TYPE B-*104 & W(SIDE AIR BAG),CHARCOAL,TRIM1#
SEAT = TYPE A-*104,IVORY,TRIM0#
SEAT = TYPE A-*104 & W(SIDE AIR BAG),IVORY,TRIM0#
SEAT = TYPE A-*104 & W(SEAT HEATER),IVORY,TRIM0#
SEAT = TYPE A-*104 & W(SIDE AIR BAG & SEAT HEATER),IVORY,TRIM0#
W(POWER SEAT & SRS SIDE AIR BAG),IVORY,TRIM0#
W(POWER SEAT & SRS SIDE AIR BAG),GRAY,TRIM1#
W(POWER SEAT),IVORY,TRIM0#
W(POWER SEAT),GRAY,TRIM1#
LEATHER SEAT & W(POWER SEAT & SRS SIDE AIR BAG),IVORY,TRIM0#
LEATHER SEAT & W(POWER SEAT & SRS SIDE AIR BAG),GRAY,TRIM1#
LEATHER SEAT & W(POWER SEAT & SEAT HEATER),IVORY,TRIM0#
LEATHER SEAT & W(POWER SEAT & SEAT HEATER),GRAY,TRIM1#
LEATHER SEAT & W(POWER SEAT),IVORY,TRIM0#
LEATHER SEAT & W(POWER SEAT),GRAY,TRIM1#
LEATHER SEAT & W(POWER SEAT & SEAT HEATER & SRS SIDE AIR BAG),IVORY,TRIM0#
LEATHER SEAT & W(POWER SEAT & SEAT HEATER & SRS SIDE AIR BAG),GRAY,TRIM1#
W(SRS SIDE AIR BAG),IVORY,TRIM0#
W(SRS SIDE AIR BAG),GRAY,TRIM1#
IVORY,TRIM0#
GRAY,TRIM1#
LEATHER SEAT & W(SRS SIDE AIR BAG),IVORY,TRIM0#
LEATHER SEAT & W(SRS SIDE AIR BAG),GRAY,TRIM1#
LEATHER SEAT & W(SEAT HEATER),IVORY,TRIM0#
LEATHER SEAT & W(SEAT HEATER),GRAY,TRIM1#
LEATHER SEAT,IVORY,TRIM0#
LEATHER SEAT,GRAY,TRIM1#
LEATHER SEAT & W(SEAT HEATER & SRS SIDE AIR BAG),IVORY,TRIM0#
LEATHER SEAT & W(SEAT HEATER & SRS SIDE AIR BAG),GRAY,TRIM1#
71074SCOVER, FRONT SEATBACK, LH(FOR SEPARATE TYPE)
SEAT = TYPE A-*104,IVORY,TRIM0#
SEAT = TYPE A-*104 & W(SIDE AIR BAG),IVORY,TRIM0#
SEAT = TYPE A-*104 & W(SEAT HEATER),IVORY,TRIM0#
SEAT = TYPE A-*104 & W(SIDE AIR BAG & SEAT HEATER),IVORY,TRIM0#
SEAT = TYPE B-*104,IVORY,TRIM0#
SEAT = TYPE B-*104,CHARCOAL,TRIM1#
SEAT = TYPE B-*104 & W(SIDE AIR BAG),IVORY,TRIM0#
SEAT = TYPE B-*104 & W(SIDE AIR BAG),CHARCOAL,TRIM1#
W(POWER SEAT & SRS SIDE AIR BAG),IVORY,TRIM0#
W(POWER SEAT & SRS SIDE AIR BAG),GRAY,TRIM1#
W(POWER SEAT),IVORY,TRIM0#
W(POWER SEAT),GRAY,TRIM1#
LEATHER SEAT & W(SRS SIDE AIR BAG),IVORY,TRIM0#
LEATHER SEAT & W(SRS SIDE AIR BAG),GRAY,TRIM1#
LEATHER SEAT & W(SEAT HEATER),IVORY,TRIM0#
LEATHER SEAT & W(SEAT HEATER),GRAY,TRIM1#
LEATHER SEAT,IVORY,TRIM0#
LEATHER SEAT,GRAY,TRIM1#
LEATHER SEAT & W(SEAT HEATER & SRS SIDE AIR BAG),IVORY,TRIM0#
LEATHER SEAT & W(SEAT HEATER & SRS SIDE AIR BAG),GRAY,TRIM1#
IVORY,TRIM0#
GRAY,TRIM1#
71430SBACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)
SEAT = TYPE A-*104 & W(SIDE AIR BAG),IVORY,TRIM0#
SEAT = TYPE A-*104 & W(SIDE AIR BAG & SEAT HEATER),IVORY,TRIM0#
SEAT = TYPE B-*104 & W(SIDE AIR BAG),IVORY,TRIM0#
SEAT = TYPE B-*104 & W(SIDE AIR BAG),CHARCOAL,TRIM1#
71440SBACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE)
SEAT = TYPE A-*104,IVORY,TRIM0#
SEAT = TYPE B-*104,IVORY,TRIM0#
SEAT = TYPE B-*104,CHARCOAL,TRIM1#
SEAT = TYPE B-*104 & W(LUMBER SUPPORT),IVORY,TRIM0#
SEAT = TYPE B-*104 & W(LUMBER SUPPORT),CHARCOAL,TRIM1#
SEAT = TYPE A-*104 & W(SEAT HEATER),IVORY,TRIM0#
71511SPAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
W(POWER SEAT)
W(SRS SIDE AIR BAG & POWER SEAT)
W(SRS SIDE AIR BAG)
71512SPAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)
W(POWER SEAT)
W(SRS SIDE AIR BAG & POWER SEAT)
W(SRS AIR BAG)
71551SPAD, FRONT SEATBACK, RH(FOR SEPARATE TYPE)
71552SPAD, FRONT SEATBACK, LH(FOR SEPARATE TYPE)
71610SSPRING ASSY, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
71620SSPRING ASSY, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)
W(POWER SEAT)
71630SSPRING ASSY, FRONT SEATBACK, RH(FOR SEPARATE TYPE)
71640SSPRING ASSY, FRONT SEATBACK, LH(FOR SEPARATE TYPE)
W(LUMBAR SUPPORT)
71705BOARD SUB-ASSY, FRONT SEATBACK, RH
SEAT = TYPE A-*104,IVORY,TRIM0#
SEAT = TYPE B-*104,IVORY,TRIM0#
SEAT = TYPE B-*104,CHARCOAL,TRIM1#
IVORY,TRIM0#
GRAY,TRIM1#
LEATHER SEAT,IVORY,TRIM0#
LEATHER SEAT,GRAY,TRIM1#
71706BOARD SUB-ASSY, FRONT SEATBACK, LH
SEAT = TYPE A-*104,IVORY,TRIM0#
SEAT = TYPE B-*104,IVORY,TRIM0#
SEAT = TYPE B-*104,CHARCOAL,TRIM1#
IVORY,TRIM0#
GRAY,TRIM1#
LEATHER SEAT,IVORY,TRIM0#
LEATHER SEAT,GRAY,TRIM1#
71706BCLIP, FRONT SEATBACK BOARD
71831DCOVER, FRONT SEAT HINGE, RH
71832DCOVER, FRONT SEAT HINGE, LH
71910AHEADREST ASSY, FRONT SEAT
SEAT = TYPE B-*104,IVORY,TRIM0#
SEAT = TYPE B-*104,CHARCOAL,TRIM1#
SEAT = TYPE A-*104,IVORY,TRIM0#
IVORY,TRIM0#
GRAY,TRIM1#
W(POWER SEAT),IVORY,TRIM0#
W(POWER SEAT),GRAY,TRIM1#
LEATHER SEAT & W(POWER SEAT),IVORY,TRIM0#
LEATHER SEAT & W(POWER SEAT),GRAY,TRIM1#
71931SUPPORT, FRONT SEAT HEADREST
W(LOCK)&W(BUTTON),IVORY,TRIM0#
W(LOCK)&W(BUTTON),MD.CHARCOAL,TRIM1#
W(LOCK)&W(BUTTON),GRAY,TRIM1#
W(LOCK)&W/O(BUTTON),IVORY,TRIM0#
W(LOCK)&W/O(BUTTON),MD.CHARCOAL,TRIM1#
W(LOCK)&W/O(BUTTON),GRAY,TRIM1#
72760DADJUSTER ASSY, LUMBAR SUPPORT, LH
72797ASPACER, LUMBAR SUPPORT
72810CARMREST ASSY, FRONT SEAT, CENTER
SEAT = TYPE A-*104,IVORY,TRIM0#
SEAT = TYPE B-*104,IVORY,TRIM0#
SEAT = TYPE B-*104,CHARCOAL,TRIM1#
IVORY,TRIM0#
GRAY,TRIM1#
LEATHER SEAT,IVORY,TRIM0#
LEATHER SEAT,NEW GRAY,TRIM1#
72820AARMREST ASSY, SEAT, LH
SEAT = TYPE A-*104,IVORY,TRIM0#
SEAT = TYPE B-*104,IVORY,TRIM0#
SEAT = TYPE B-*104,CHARCOAL,TRIM1#
IVORY,TRIM0#
GRAY,TRIM1#
LEATHER SEAT,IVORY,TRIM0#
LEATHER SEAT,NEW GRAY,TRIM1#
72877COVER, SEAT ARMREST, RH
IVORY,TRIM0#
MD.CHARCOAL,TRIM1#
GRAY,TRIM1#
72878COVER, SEAT ARMREST, LH
IVORY,TRIM0#
MD.CHARCOAL,TRIM1#
GRAY,TRIM1#
85821DMOTOR ASSY, POWER SEAT
87510KHEATER ASSY, FRONT SEAT CUSHION, RH
87510LHEATER ASSY, FRONT SEAT CUSHION, LH
87510MHEATER ASSY, FRONT SEATBACK, RH
87510NHEATER ASSY, FRONT SEATBACK, LH
7138948010SPACER, CENTER SEAT HINGE
main71389-48010
7281248010CLUTCH, PROTECTOR SUB
main72812-48010
7281548050HOLDER, CLUTCH PROTECTOR SUB
main72815-48050
8266622150HOLDER, CONNECTOR
main82666-22150
9010910169
main90109-10169
9020115038
main90201-15038
9151160610
main91511-60610
39 parts on this diagram · 11 diagrams in section
