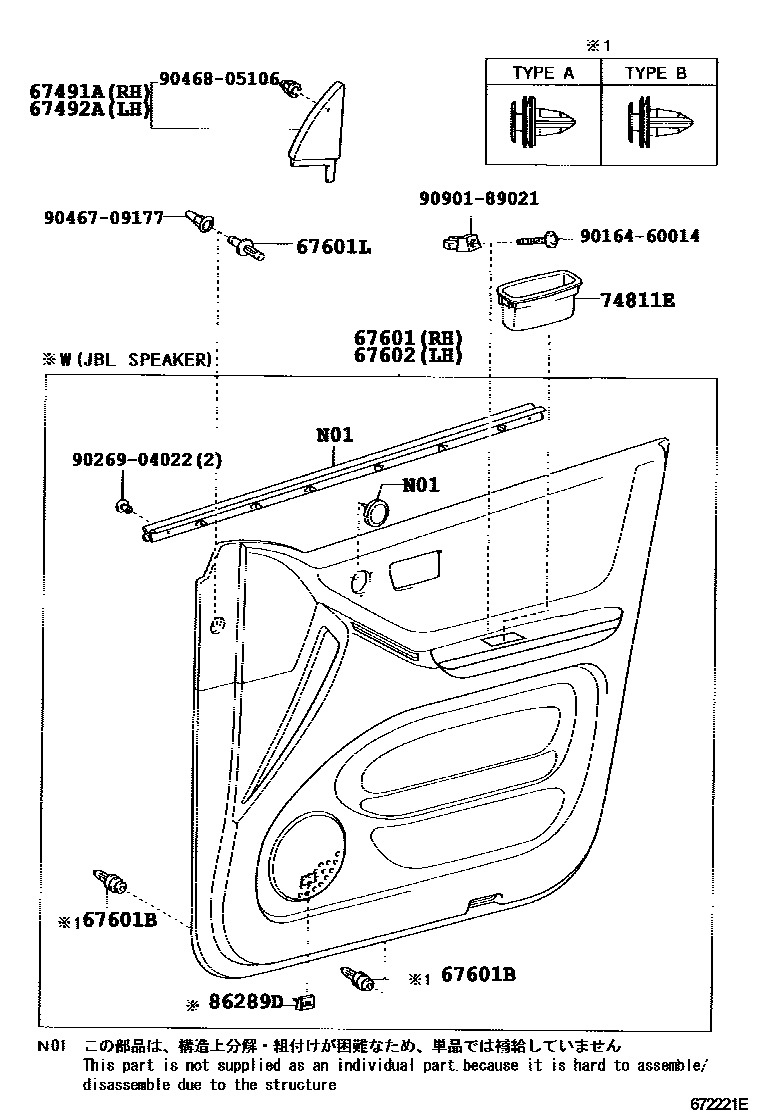

FRONT DOOR PANEL & GLASS

0001 1 0002 1 0003 1

67491AGARNISH, FRONT DOOR LOWER FRAME BRACKET, RH

main67491-48020iACU2#,MCU2#200011-200308

67492AGARNISH, FRONT DOOR LOWER FRAME BRACKET, LH

main67492-48020iACU2#,MCU2#200308

67601BOARD SUB-ASSY, FRONT DOOR TRIM, RH

main67610-48160-A2iACU2#,MCU2#200011-200210

DOOR TRIM=TYPE C-*104,IVORY,TRIM0#

main67610-48160-B2iACU2#,MCU2#200011-200210

DOOR TRIM=TYPE C-*104,CHARCOAL,TRIM1#

main67610-48161-A1iACU2#,MCU2#200210-200308

DOOR TRIM=TYPE C-*104,IVORY,TRIM0#

main67610-48161-B1iACU2#,MCU2#200210-200308

DOOR TRIM=TYPE C-*104,CHARCOAL,TRIM1#

main67610-48170-A2iMCU2#200011-200210

DOOR TRIM=TYPE B-*104,IVORY,TRIM0#

main67610-48170-B2iMCU2#200011-200210

DOOR TRIM=TYPE B-*104,CHARCOAL,TRIM1#

main67610-48171-A1iMCU2#200210-200308

DOOR TRIM=TYPE B-*104,IVORY,TRIM0#

main67610-48171-B1iMCU2#200210-200308

DOOR TRIM=TYPE B-*104,CHARCOAL,TRIM1#

main67610-48220-A0iMCU2#200011-200210

DOOR TRIM=TYPE A-*104,IVORY,TRIM0#

main67610-48221-A0iMCU2#200210-200308

DOOR TRIM=TYPE A-*104,IVORY,TRIM0#

main67610-48230-A0iMCU2#200108-200210

DOOR TRIM=TYPE D-*104,IVORY,TRIM0#

main67610-48231-A0iMCU2#200210-200308

DOOR TRIM=TYPE D-*104,IVORY,TRIM0#

main67610-48320-A1iACU2#,MCU2#200308-200408

FABRIC TRIM,IVORY,TRIM0#

main67610-48320-B1iACU2#,MCU2#200308-200408

FABRIC TRIM,GRAY,TRIM1#

main67610-48321-A0iACU2#,MCU2#200408-200705

FABRIC TRIM,IVORY,TRIM0#

main67610-48321-B0iACU2#,MCU2#200408-200705

FABRIC TRIM,GRAY,TRIM1#

main67610-48330-A1iACU2#,MCU2#200308-200408

FABRIC TRIM & W(MARK = JBL),IVORY,TRIM0#

main67610-48330-B1iACU2#,MCU2#200308-200408

FABRIC TRIM & W(MARK = JBL),GRAY,TRIM1#

main67610-48331-A0iACU2#,MCU2#200408-200705

FABRIC TRIM & W(MARK = JBL),IVORY,TRIM0#

main67610-48331-B0iACU2#,MCU2#200408-200705

FABRIC TRIM & W(MARK = JBL),GRAY,TRIM1#

main67610-48350-A1iACU2#,MCU2#200308-200408

LEATHER TRIM,IVORY,TRIM0#

main67610-48350-B1iACU2#,MCU2#200308-200408

LEATHER TRIM,GRAY,TRIM1#

main67610-48351-A0iACU2#,MCU2#200408-200705

LEATHER TRIM,IVORY,TRIM0#

main67610-48351-B0iACU2#,MCU2#200408-200705

LEATHER TRIM,GRAY,TRIM1#

main67610-48360-A1iACU2#,MCU2#200308-200408

LEATHER TRIM & W(MARK = JBL),IVORY,TRIM0#

main67610-48360-B1iACU2#,MCU2#200308-200408

LEATHER TRIM & W(MARK = JBL),GRAY,TRIM1#

main67610-48361-A0iACU2#,MCU2#200408-200705

LEATHER TRIM & W(MARK = JBL),IVORY,TRIM0#

main67610-48361-B0iACU2#,MCU2#200408-200705

LEATHER TRIM & W(MARK = JBL),GRAY,TRIM1#

67601BCLIP(FOR FRONT DOOR TRIM BOARD)

main90467-09206×12iACU2#,MCU2#200308-200705

TYPE A:REFER TO ILLUSTRATION

main90467-10161×2iACU2#,MCU2#200308-200705

TYPE B:REFER TO ILLUSTRATION

67601LCLIP(FOR FRONT DOOR TRIM BOARD)

main90467-07076-A0×2iACU2#,MCU2#200308-200705

IVORY,TRIM0#

main90467-07076-B5×2iACU2#,MCU2#200011-200308

MD.CHARCOAL,TRIM1#

main90467-07076-P5×2iACU2#,MCU2#200308-200705

GRAY,TRIM1#

67602BOARD SUB-ASSY, FRONT DOOR TRIM, LH

main67620-48160-A1iACU2#,MCU2#200011-200210

DOOR TRIM=TYPE C-*104,IVORY,TRIM0#

main67620-48160-B1iACU2#,MCU2#200011-200210

DOOR TRIM=TYPE C-*104,CHARCOAL,TRIM1#

main67620-48161-A1iACU2#,MCU2#200210-200308

DOOR TRIM=TYPE C-*104,IVORY,TRIM0#

main67620-48161-B1iACU2#,MCU2#200210-200308

DOOR TRIM=TYPE C-*104,CHARCOAL,TRIM1#

main67620-48170-A1iMCU2#200011-200210

DOOR TRIM=TYPE B-*104,IVORY,TRIM0#

main67620-48170-B1iMCU2#200011-200210

DOOR TRIM=TYPE B-*104,CHARCOAL,TRIM1#

main67620-48171-A1iMCU2#200210-200308

DOOR TRIM=TYPE B-*104,IVORY,TRIM0#

main67620-48171-B1iMCU2#200210-200308

DOOR TRIM=TYPE B-*104,CHARCOAL,TRIM1#

main67620-48220-A0iMCU2#200011-200210

DOOR TRIM=TYPE A-*104,IVORY,TRIM0#

main67620-48221-A0iMCU2#200210-200308

DOOR TRIM=TYPE A-*104,IVORY,TRIM0#

main67620-48230-A0iMCU2#200108-200210

DOOR TRIM=TYPE D-*104,IVORY,TRIM0#

main67620-48231-A0iMCU2#200210-200308

DOOR TRIM=TYPE D-*104,IVORY,TRIM0#

main67620-48340-A1iACU2#,MCU2#200308-200408

FABRIC TRIM,IVORY,TRIM0#

main67620-48340-B1iACU2#,MCU2#200308-200408

FABRIC TRIM,GRAY,TRIM1#

main67620-48341-A0iACU2#,MCU2#200408-200705

FABRIC TRIM,IVORY,TRIM0#

main67620-48341-B0iACU2#,MCU2#200408-200705

FABRIC TRIM,GRAY,TRIM1#

main67620-48350-A1iACU2#,MCU2#200308-200408

FABRIC TRIM & W(MARK = JBL),IVORY,TRIM0#

main67620-48350-B1iACU2#,MCU2#200308-200408

FABRIC TRIM & W(MARK = JBL),GRAY,TRIM1#

main67620-48351-A0iACU2#,MCU2#200408-200705

FABRIC TRIM & W(MARK = JBL),IVORY,TRIM0#

main67620-48351-B0iACU2#,MCU2#200408-200705

FABRIC TRIM & W(MARK = JBL),GRAY,TRIM1#

main67620-48370-A1iACU2#,MCU2#200308-200408

LEATHER TRIM,IVORY,TRIM0#

main67620-48370-B1iACU2#,MCU2#200308-200408

LEATHER TRIM,GRAY,TRIM1#

main67620-48371-A0iACU2#,MCU2#200408-200705

LEATHER TRIM,IVORY,TRIM0#

main67620-48371-B0iACU2#,MCU2#200408-200705

LEATHER TRIM,GRAY,TRIM1#

main67620-48380-A1iACU2#,MCU2#200308-200408

LEATHER TRIM & W(MARK = JBL),IVORY,TRIM0#

main67620-48380-B1iACU2#,MCU2#200308-200408

LEATHER TRIM & W(MARK = JBL),GRAY,TRIM1#

main67620-48381-A0iACU2#,MCU2#200408-200705

LEATHER TRIM & W(MARK = JBL),IVORY,TRIM0#

main67620-48381-B0iACU2#,MCU2#200408-200705

LEATHER TRIM & W(MARK = JBL),GRAY,TRIM1#

74811EHANDLE, DOOR PULL

main74811-22010-A0×2iACU2#,MCU2#200308-200705

IVORY,TRIM0#

main74811-22010-B1×2iACU2#,MCU2#200011-200308

SADDLE GRAY,TRIM0#,1#

main74811-22010-B4×2iACU2#,MCU2#200308-200705

GRAY,TRIM1#

86289DPLATE, SPEAKER GRILLE

main86289-48010×2iMCU2#200011-200308

9016460014

main90164-60014

9026904022

main90269-04022

9046709177

main90467-09177

9046805106

main90468-05106

9090189021

main90901-89021

13 parts on this diagram · 3 diagrams in section
