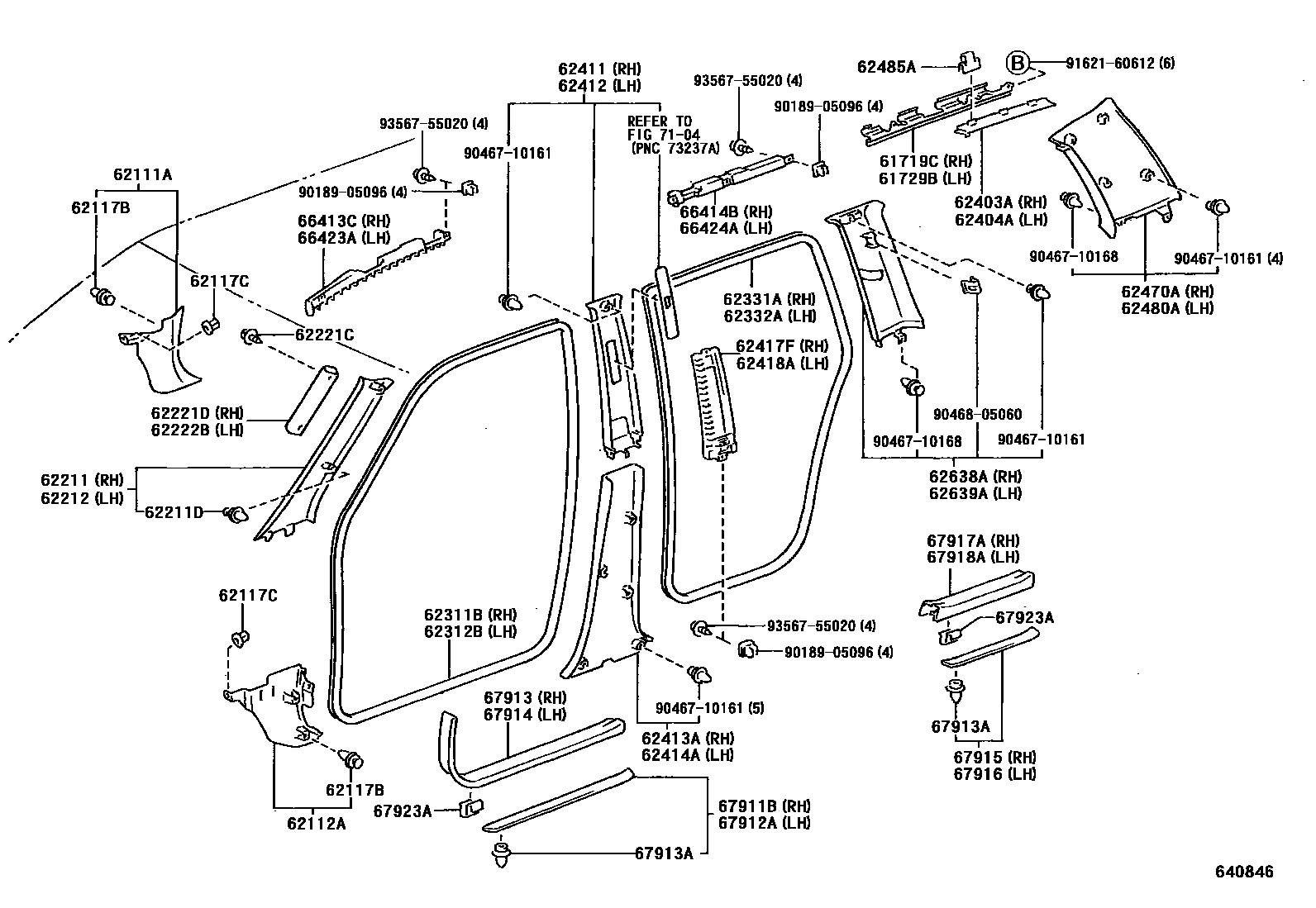

INSIDE TRIM BOARD & DOOR OPENING TRIM MOULDING

0001 1 0002 1

61719CBRACKET, ROOF SIDE RAIL, RH

main61719-48010iACU2#,MCU2#200011-200308

main61719-48020iACU2#,MCU2#200308

61729BBRACKET, ROOF SIDE RAIL, LH

main61729-48010iACU2#,MCU2#200011-200308

main61729-48020iACU2#,MCU2#200308

62111ATRIM SUB-ASSY, COWL SIDE, RH

main62101-48010-A0iACU2#,MCU2#200011-200308

IVORY,TRIM0#

main62101-48010-B2iACU2#,MCU2#200011-200308

MD.CHARCOAL,TRIM1#

main62101-48030-A0iACU2#,MCU2#200308-200705

IVORY,TRIM0#

main62101-48030-B0iACU2#,MCU2#200308-200705

GRAY,TRIM1#

62112ATRIM SUB-ASSY, COWL SIDE, LH

main62102-48010-A0iACU2#,MCU2#200011-200308

IVORY,TRIM0#

main62102-48010-B2iACU2#,MCU2#200011-200308

MD.CHARCOAL,TRIM1#

main62102-48040-A0iACU2#,MCU2#200308-200705

IVORY,TRIM0#

main62102-48040-B0iACU2#,MCU2#200308-200705

GRAY,TRIM1#

62117BCLIP, NO.1(FOR COWL SIDE TRIM)

main90467-10161×4iACU2#,MCU2#200011-200308

62117CCLIP, NO.2(FOR COWL SIDE TRIM)

main90467-05145×2iACU2#,MCU2#200011-200308

62211GARNISH, FRONT PILLAR, RH

main62210-48020-A0iACU2#,MCU2#200011-200108

IVORY,TRIM0#

main62210-48020-B1iACU2#,MCU2#200011-200108

MD.CHARCOAL,TRIM1#

main62210-48030-A0iACU2#,MCU2#200108-200308

IVORY,TRIM0#

main62210-48030-B0iACU2#,MCU2#200108-200308

MD.CHARCOAL,TRIM1#

main62210-48090-A0iACU2#,MCU2#200308-200705

W(SRS CURTAIN SHIELD AIR BAG),IVORY,TRIM0#

main62210-48090-B0iACU2#,MCU2#200308-200705

W(SRS CURTAIN SHIELD AIR BAG),GRAY,TRIM1#

main62210-48100-A0iACU2#,MCU2#200308-200608

IVORY,TRIM0#

main62210-48100-B0iACU2#,MCU2#200308-200608

GRAY,TRIM1#

62211DCLIP(FOR FRONT BODY PILLAR GARNISH)

main90467-10161×4iACU2#,MCU2#200011-200108

main90467-10188×4iACU2#,MCU2#200108-200308

62212GARNISH, FRONT PILLAR, LH

main62220-48020-A0iACU2#,MCU2#200011-200108

IVORY,TRIM0#

main62220-48020-B1iACU2#,MCU2#200011-200108

MD.CHARCOAL,TRIM1#

main62220-48030-A0iACU2#,MCU2#200108-200308

IVORY,TRIM0#

main62220-48030-B0iACU2#,MCU2#200108-200308

MD.CHARCOAL,TRIM1#

main62220-48090-A0iACU2#,MCU2#200308-200705

W(SRS CURTAIN SHIELD AIR BAG),IVORY,TRIM0#

main62220-48090-B0iACU2#,MCU2#200308-200705

W(SRS CURTAIN SHIELD AIR BAG),GRAY,TRIM1#

main62220-48100-A0iACU2#,MCU2#200308-200608

IVORY,TRIM0#

main62220-48100-B0iACU2#,MCU2#200308-200608

GRAY,TRIM1#

62221CSCREW, PILLAR JOINT SETTING

main90159-70003×4iACU2#,MCU2#200011-200308

62221DCOVER, FRONT PILLAR GARNISH, RH

main62221-48020iACU2#,MCU2#200011-200108

main62221-48030iACU2#,MCU2#200108-200308

62222BCOVER, FRONT PILLAR GARNISH, LH

main62222-48020iACU2#,MCU2#200011-200108

main62222-48030iACU2#,MCU2#200108-200308

62311BWEATHERSTRIP, FRONT DOOR OPENING TRIM, RH

main62311-48020-A0iACU2#,MCU2#200011-200308

IVORY,TRIM0#

main62311-48020-B1iACU2#,MCU2#200011-200308

MD.CHARCOAL,TRIM1#

main62311-48050-A0iACU2#,MCU2#200308-200705

IVORY,TRIM0#

main62311-48050-B0iACU2#,MCU2#200308-200705

GRAY,TRIM1#

62312BWEATHERSTRIP, FRONT DOOR OPENING TRIM, LH

main62312-48020-A0iACU2#,MCU2#200011-200308

IVORY,TRIM0#

main62312-48020-B1iACU2#,MCU2#200011-200308

MD.CHARCOAL,TRIM1#

main62312-48050-A0iACU2#,MCU2#200308-200705

IVORY,TRIM0#

main62312-48050-B0iACU2#,MCU2#200308-200705

GRAY,TRIM1#

62331AWEATHERSTRIP, REAR DOOR OPENING TRIM, RH

main62331-48020-A0iACU2#,MCU2#200308-200705

IVORY,TRIM0#

main62331-48020-B1iACU2#,MCU2#200011-200308

MD.CHARCOAL,TRIM1#

main62331-48020-B2iACU2#,MCU2#200308-200705

GRAY,TRIM1#

62332AWEATHERSTRIP, REAR DOOR OPENING TRIM, LH

main62332-48020-A0iACU2#,MCU2#200011-200308

IVORY,TRIM0#

main62332-48020-B1iACU2#,MCU2#200011-200308

MD.CHARCOAL,TRIM1#

main62332-48020-B2iACU2#,MCU2#200308-200705

GRAY,TRIM1#

62403AGARNISH SUB-ASSY, ROOF SIDE RAIL, RH

main62450-48010-A0iACU2#,MCU2#200308-200705

IVORY,TRIM0#

main62450-48010-B1iACU2#,MCU2#200011-200308

MD.CHARCOAL,TRIM1#

main62450-48010-B3iACU2#,MCU2#200308-200705

GRAY,TRIM1#

62404AGARNISH SUB-ASSY, ROOF SIDE RAIL, LH

main62460-48010-A0iACU2#,MCU2#200308-200705

IVORY,TRIM0#

main62460-48010-B1iACU2#,MCU2#200011-200308

MD.CHARCOAL,TRIM1#

main62460-48010-B3iACU2#,MCU2#200308-200705

GRAY,TRIM1#

62411GARNISH, CENTER PILLAR, RH

main62410-48020-A0iACU2#,MCU2#200011-200108

IVORY,TRIM0#

main62410-48020-B1iACU2#,MCU2#200011-200108

MD.CHARCOAL,TRIM1#

main62410-48030-A0iACU2#,MCU2#200108-200308

IVORY,TRIM0#

main62410-48030-B0iACU2#,MCU2#200108-200308

MD.CHARCOAL,TRIM1#

main62410-48060-A0iACU2#,MCU2#200308-200705

IVORY,TRIM0#

main62410-48060-B0iACU2#,MCU2#200308-200705

GRAY,TRIM1#

62412GARNISH, CENTER PILLAR, LH

main62420-48020-A0iACU2#,MCU2#200011-200108

IVORY,TRIM0#

main62420-48020-B1iACU2#,MCU2#200011-200108

MD.CHARCOAL,TRIM1#

main62420-48030-A0iACU2#,MCU2#200108-200308

IVORY,TRIM0#

main62420-48030-B0iACU2#,MCU2#200108-200308

MD.CHARCOAL,TRIM1#

main62420-48060-A0iACU2#,MCU2#200308-200705

IVORY,TRIM0#

main62420-48060-B0iACU2#,MCU2#200308-200705

GRAY,TRIM1#

62413AGARNISH, CENTER PILLAR, LOWER RH

main62413-48010-A0iACU2#,MCU2#200308-200705

IVORY,TRIM0#

main62413-48010-B2iACU2#,MCU2#200011-200308

MD.CHARCOAL,TRIM1#

main62413-48010-B3iACU2#,MCU2#200308-200705

GRAY,TRIM1#

62414AGARNISH, CENTER PILLAR, LOWER LH

main62414-48010-A0iACU2#,MCU2#200011-200308

IVORY,TRIM0#

main62414-48010-B2iACU2#,MCU2#200011-200308

MD.CHARCOAL,TRIM1#

main62414-48010-B3iACU2#,MCU2#200308-200705

GRAY,TRIM1#

62417FPAD, CENTER PILLAR GARNISH, RH

main62417-48020iACU2#,MCU2#200011-200108

main62417-48030iACU2#,MCU2#200108-200308

main62417-48060iACU2#,MCU2#200308

62418APAD, CENTER PILLAR GARNISH, LH

main62418-48020iACU2#,MCU2#200011-200108

main62418-48030iACU2#,MCU2#200108-200308

main62418-48050iACU2#,MCU2#200308

62470AGARNISH ASSY, ROOF SIDE, INNER RH

main62470-48030-A0iACU2#,MCU2#200011-200308

IVORY,TRIM0#

main62470-48030-B1iACU2#,MCU2#200011-200308

MD.CHARCOAL,TRIM1#

main62470-48070-A0iACU2#,MCU2#..05S200308-200705

IVORY,TRIM0#

main62470-48070-B0iACU2#,MCU2#..05S200308-200705

GRAY,TRIM1#

main62470-48080-A0iACU2#,MCU2#..07S200308-200705

IVORY,TRIM0#

main62470-48080-B0iACU2#,MCU2#..07S200308-200705

GRAY,TRIM1#

62480AGARNISH ASSY, ROOF SIDE, INNER LH

main62480-48030-A0iACU2#,MCU2#200011-200308

IVORY,TRIM0#

main62480-48030-B1iACU2#,MCU2#200011-200308

MD.CHARCOAL,TRIM1#

main62480-48060-A0iACU2#,MCU2#..05S200308-200705

IVORY,TRIM0#

main62480-48060-B0iACU2#,MCU2#..05S200308-200705

GRAY,TRIM1#

main62480-48070-A0iACU2#,MCU2#..07S200308-200705

IVORY,TRIM0#

main62480-48070-B0iACU2#,MCU2#..07S200308-200705

GRAY,TRIM1#

62485ARETAINER, ROOF SIDE INNER GARNISH

main62485-48010×6iACU2#,MCU2#200011-200308

62638AGARNISH, QUARTER PILLAR, RH

main62638-48010-A0iACU2#,MCU2#200308-200608

IVORY,TRIM0#

main62638-48010-B1iACU2#,MCU2#200011-200308

MD.CHARCOAL,TRIM1#

main62638-48010-B3iACU2#,MCU2#200308-200608

GRAY,TRIM1#

main62638-48020-A0iACU2#,MCU2#200308-200705

W(SRS CURTAIN SHIELD AIR BAG),IVORY,TRIM0#

main62638-48020-B0iACU2#,MCU2#200308-200705

W(SRS CURTAIN SHIELD AIR BAG),GRAY,TRIM1#

62639AGARNISH, QUARTER PILLAR, LH

main62639-48010-A0iACU2#,MCU2#200011-200308

IVORY,TRIM0#

main62639-48010-B1iACU2#,MCU2#200011-200308

MD.CHARCOAL,TRIM1#

main62639-48010-B3iACU2#,MCU2#200308-200608

GRAY,TRIM1#

main62639-48020-A0iACU2#,MCU2#200308-200705

W(SRS CURTAIN SHIELD AIR BAG),IVORY,TRIM0#

main62639-48020-B0iACU2#,MCU2#200308-200705

W(SRS CURTAIN SHIELD AIR BAG),GRAY,TRIM1#

66413CSPACER, SIDE RAIL, FRONT RH

main66413-48030iACU2#,MCU2#200011-200108

main66413-48040iACU2#,MCU2#200108-200308

main66413-48070iACU2#,MCU2#200308-200608

66414BSPACER, SIDE RAIL, REAR RH

main66414-48020iACU2#,MCU2#200011-200308

main66414-48050iACU2#,MCU2#200308-200608

66423ASPACER, SIDE RAIL, FRONT LH

main66423-48030iACU2#,MCU2#200011-200108

main66423-48040iACU2#,MCU2#200108-200308

main66423-48070iACU2#,MCU2#200308-200608

66424ASPACER, SIDE RAIL, REAR LH

main66424-48020iACU2#,MCU2#200011-200308

main66424-48050iACU2#,MCU2#200308-200608

67911BPLATE, FRONT DOOR SCUFF, OUTSIDE, RH

main67911-48010iACU2#,MCU2#200308

main67911-48060iMCU2#200308

W(ORNAMENT)

67912APLATE, FRONT DOOR SCUFF, OUTSIDE LH

main67912-48010iACU2#,MCU2#200011-200308

main67912-48060iMCU2#200308

W(ORNAMENT)

67913PLATE, FRONT DOOR SCUFF, RH

main67913-48010-A0iACU2#,MCU2#200011-200308

IVORY,TRIM0#

main67913-48010-B2iACU2#,MCU2#200011-200308

MD.CHARCOAL,TRIM1#

main67913-48010-B3iACU2#,MCU2#200308-200705

GRAY,TRIM1#

67913ACLIP(FOR SCUFF PLATE)

main90467-10162×14iACU2#,MCU2#200011-200308

67914PLATE, FRONT DOOR SCUFF, LH

main67914-48010-A0iACU2#,MCU2#200011-200308

IVORY,TRIM0#

main67914-48010-B2iACU2#,MCU2#200011-200308

MD.CHARCOAL,TRIM1#

main67914-48010-B3iACU2#,MCU2#200308-200705

GRAY,TRIM1#

67915PLATE, REAR DOOR SCUFF, OUTSIDE RH

main67915-48010iACU2#,MCU2#200308

main67915-48060iMCU2#200308

W(ORNAMENT)

67916PLATE, REAR DOOR SCUFF, OUTSIDE LH

main67916-48010iACU2#,MCU2#200011-200308

main67916-48060iMCU2#200308

W(ORNAMENT)

67917APLATE, REAR DOOR SCUFF, RH

main67917-48010-A0iACU2#,MCU2#200011-200308

IVORY,TRIM0#

main67917-48010-B2iACU2#,MCU2#200011-200308

MD.CHARCOAL,TRIM1#

main67917-48040-A0iACU2#,MCU2#..05S200308-200705

IVORY,TRIM0#

main67917-48040-B0iACU2#,MCU2#..05S200308-200705

GRAY,TRIM1#

main67917-48050-A0iACU2#,MCU2#..07S200308-200705

IVORY,TRIM0#

main67917-48050-B0iACU2#,MCU2#..07S200308-200705

GRAY,TRIM1#

67918APLATE, REAR DOOR SCUFF, LH

main67918-48010-A0iACU2#,MCU2#200011-200308

IVORY,TRIM0#

main67918-48010-B2iACU2#,MCU2#200011-200308

MD.CHARCOAL,TRIM1#

main67918-48040-A0iACU2#,MCU2#..05S200308-200705

IVORY,TRIM0#

main67918-48040-B0iACU2#,MCU2#..05S200308-200705

GRAY,TRIM1#

main67918-48050-A0iACU2#,MCU2#..07S200308-200705

IVORY,TRIM0#

main67918-48050-B0iACU2#,MCU2#..07S200308-200705

GRAY,TRIM1#

67923ACLAMP, DOOR SCUFF PLATE, NO.1

main67923-30030×12iACU2#,MCU2#200011-200308

7104SEAT BELT & CHILD RESTRAINT SEAT

→ Go to FIG 71-04

9018905096

main90189-05096

9046710161

main90467-10161

9046710168

main90467-10168

9046805060

main90468-05060

9162160612

main91621-60612

9356755020

main93567-55020

50 parts on this diagram · 2 diagrams in section
