MAT & CARPET

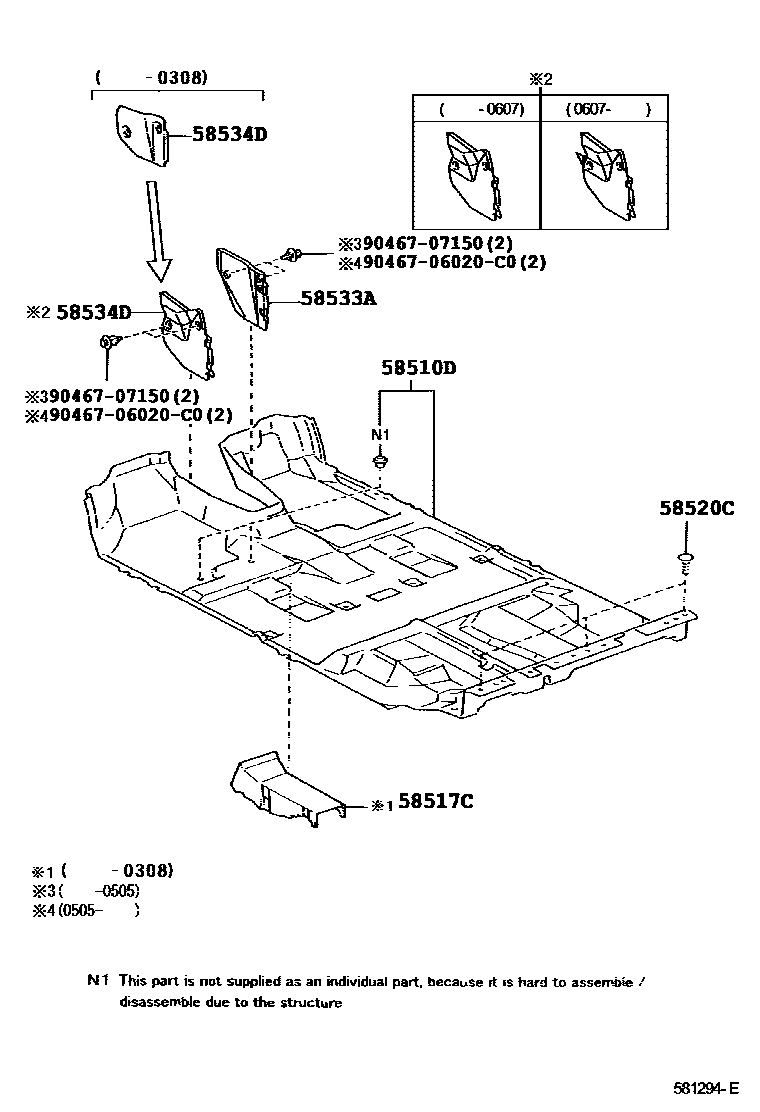

Parts diagram

58510DCARPET ASSY, FLOOR, FRONT

main58510-48060-A0i200011-200308

IVORY,TRIM0#

main58510-48060-B0i200011-200308

MEDIUM CHARCOAL,TRIM1#

main58510-48070-A0i200108-200308

W(CONSOLE BOX),IVORY,TRIM0#

main58510-48070-B0i200108-200308

W(CONSOLE BOX),MEDIUM CHARCOAL,TRIM1#

main58510-48110-A0i200308-200510

IVORY,TRIM0#

main58510-48110-B0i200308-200510

LT.GRAY,TRIM1#

main58510-48111-A0i200510-200705

IVORY,TRIM0#

main58510-48111-B0i200510-200705

LT.GRAY,TRIM1#

main58510-48130-A0i200308-200510

IVORY,TRIM0#

main58510-48130-B0i200308-200510

LT.GRAY,TRIM1#

main58510-48131-A0i200510-200705

IVORY,TRIM0#

main58510-48131-B0i200510-200705

LT.GRAY,TRIM1#

58517CPAD, FRONT FLOOR MAT

main58517-48010i200011-200308

58520CCLIP(FOR FRONT FLOOR CARPET)

main90467-06016-C0×3i200011-200303

BLACK,TRIM0#,1#

main90467-07049-A0×3i200308-200705

IVORY,TRIM0#

main90467-07049-C0×3i200303-200308

BLACK,TRIM0#,1#

main90467-07049-P6×3i200308-200705

GRAY,TRIM1#

58533ACOVER, FLOOR CARPET, CENTER RH

main58533-48030-A0i200308-200705

IVORY,TRIM0#

main58533-48030-B0i200108-200308

MD.CHARCOAL,TRIM1#

main58533-48030-B2i200308-200705

GRAY,TRIM1#

58534DCOVER, FLOOR CARPET, CENTER LH

main58534-48030-A0i200108-200308

IVORY,TRIM0#

main58534-48030-B0i200108-200308

MD.CHARCOAL,TRIM1#

main58534-48050-A0i200308-200607

IVORY,TRIM0#

main58534-48050-B1i200308-200607

GRAY,TRIM1#

main58534-48051-A0i200607-200705

IVORY,TRIM0#

main58534-48051-B1i200607-200705

GRAY,TRIM1#

9046706020C0

main90467-06020C0

9046707150

main90467-07150

7 parts on this diagram · 2 diagrams in section
