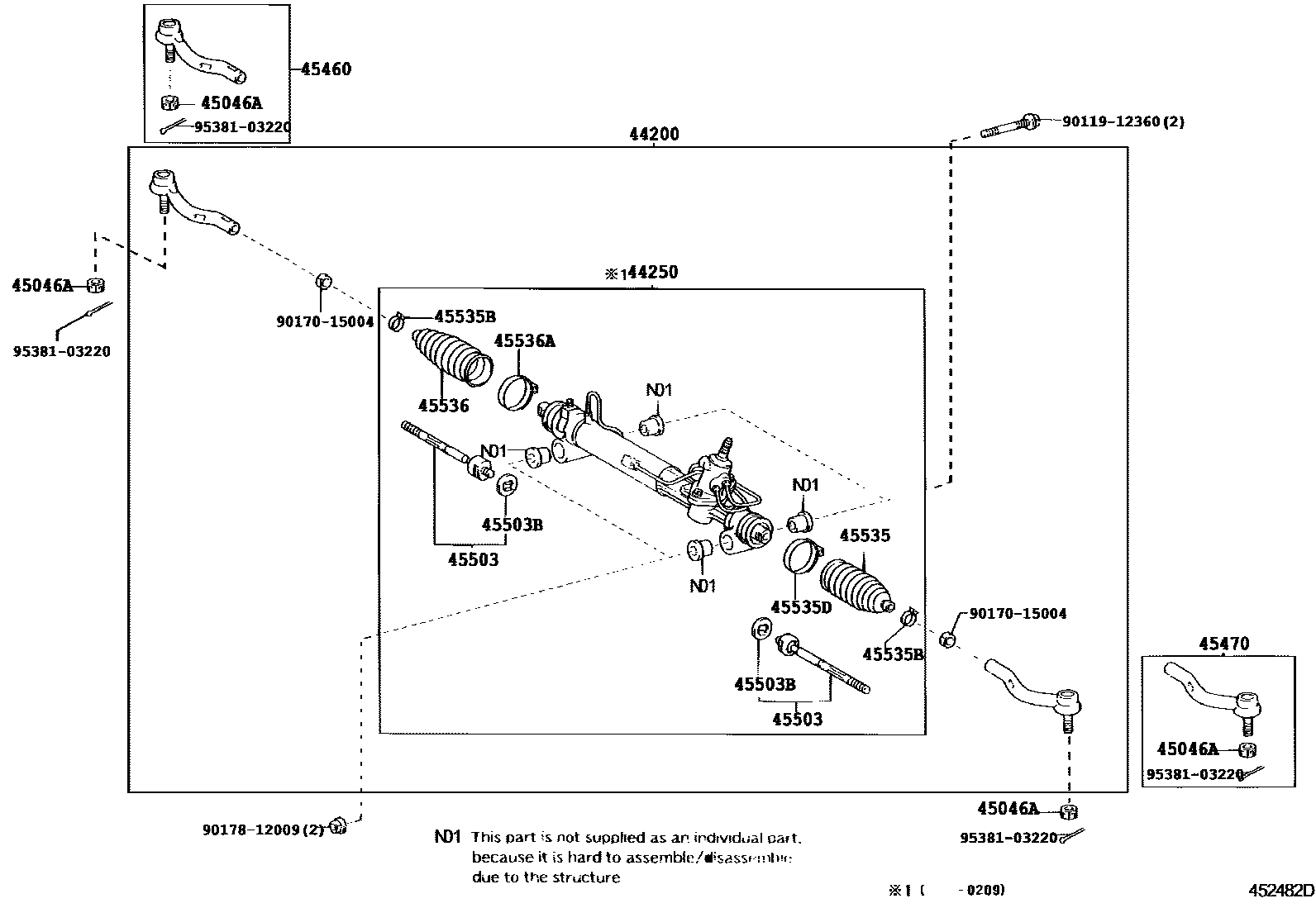

FRONT STEERING GEAR & LINK
44200LINK ASSY, POWER STEERING
44250GEAR ASSY, POWER STEERING(FOR RACK & PINION)
45046ANUT, CASTLE(FOR TIE ROD END)
45503END SUB-ASSY, STEERING RACK
45503BWASHER, CLAW(FOR STEERING RACK END)
OD=38
OD=35.2
45535BOOT, STEERING RACK, NO.1
(L)
(J)
45535BCLIP(FOR STEERING RACK BOOT)
45535DCLAMP(FOR STEERING RACK BOOT NO.1)
(L)
(J)
45536BOOT, STEERING RACK, NO.2
(L)
(J)
45536ACLAMP(FOR STEERING RACK BOOT NO.2)
(L)
(J)
9011912360
main90119-12360
9017015004
main90170-15004
9017812009
main90178-12009
9538103220
main95381-03220
16 parts on this diagram · 2 diagrams in section
