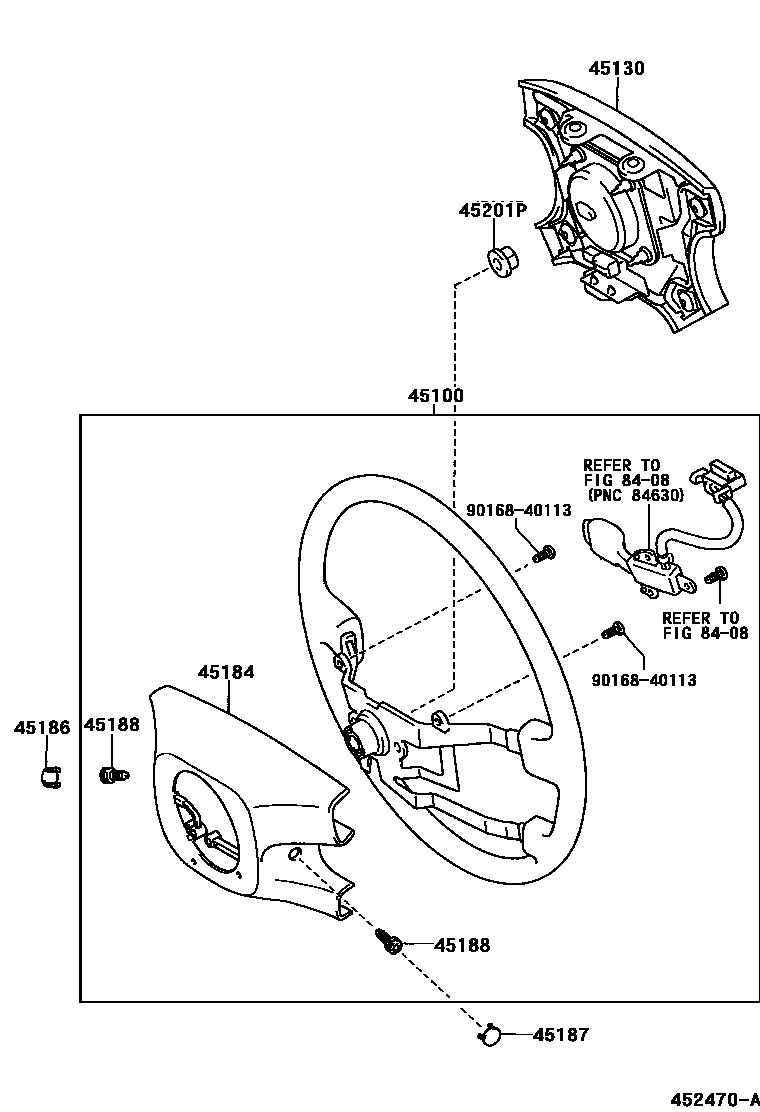

STEERING WHEEL
45100WHEEL ASSY, STEERING
4-SPOKE,URETHANE,SADDLE GRAY,TRIM1#
4-SPOKE,URETHANE,SANDAL WOOD,TRIM0#
4-SPOKE,LEATHER,SADDLE GRAY,TRIM0#,1#
4-SPOKE,URETHANE,SADDLE GRAY,TRIM0#,1#
4-SPOKE,LEATHER,SADDLE GRAY,TRIM0#,1#
4-SPOKE,LEATHER,SADDLE GRAY,TRIM1#
4-SPOKE,LEATHER,SANDAL WOOD,TRIM0#
45130BUTTON ASSY, HORN
SADDLE GRAY,TRIM0#,1#
TYPE A:REFER TO ILLUSTRATION,SADDLE GRAY,TRIM1#
TYPE A:REFER TO ILLUSTRATION,SANDAL WOOD,TRIM0#
TYPE B:REFER TO ILLUSTRATION,SADDLE GRAY,TRIM1#
TYPE B:REFER TO ILLUSTRATION,SANDAL WOOD,TRIM0#
45184COVER, STEERING WHEEL BOSS, LOWER
SADDLE GRAY,TRIM0#,1#
45186COVER, STEERING WHEEL, LOWER NO.2
SADDLE GRAY,TRIM0#,1#
SADDLE GRAY,TRIM1#
SANDAL WOOD,TRIM0#
45187COVER, STEERING WHEEL, LOWER NO.3
SADDLE GRAY,TRIM0#,1#
SADDLE GRAY,TRIM1#
SANDAL WOOD,TRIM0#
45188SCREW, STEERING WHEEL PAD ATTACHING
L=18
45201PNUT, STEERING WHEEL SET
8408CRUISE CONTROL (AUTO DRIVE)
9016840113
main90168-40113
9 parts on this diagram · 2 diagrams in section
