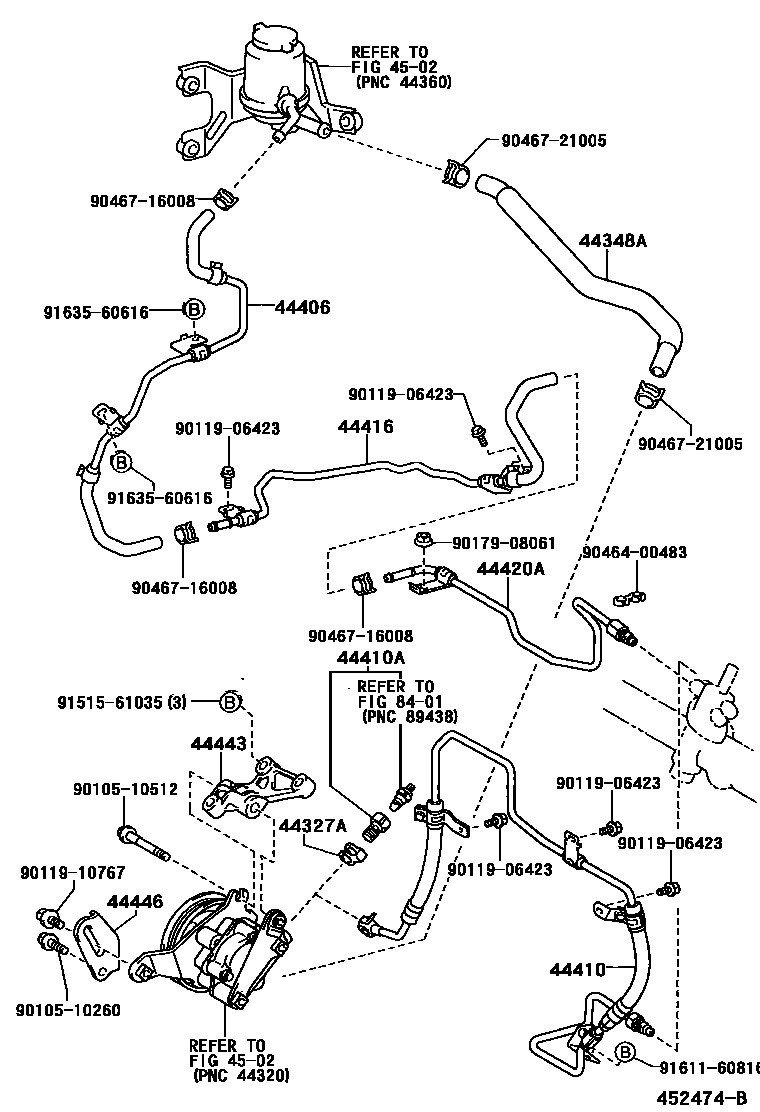

POWER STEERING TUBE
44327AGASKET, PRESSURE PORT, NO.1
44348AHOSE, OIL RESERVOIR TO PUMP, NO.1
44406TUBE SUB-ASSY, RETURN
W(OIL COOLER)
W(OIL COOLER)
W(OIL COOLER)
44410TUBE ASSY, PRESSURE FEED
W(OIL COOLER)
W(OIL COOLER)
W(OIL COOLER)
44410ABOLT, UNION(FOR PRESSURE FEED TUBE)
44416TUBE, RETURN(FOR STEERING GEAR OUTLET)
TOWING PACKAGE
TOWING PACKAGE
TOWING PACKAGE
44443BRACKET, PUMP
44446STRUT, ADJUSTING
4502VANE PUMP & RESERVOIR (POWER STEERING)
8401SWITCH & RELAY & COMPUTER
9010510260
main90105-10260
9010510512
main90105-10512
9011906423
main90119-06423
9011910767
main90119-10767
9017908061
main90179-08061
9046400483
main90464-00483
9046716008
main90467-16008
9046721005
main90467-21005
9151561035
main91515-61035
9161160816
main91611-60816
9163560616
main91635-60616
22 parts on this diagram · 4 diagrams in section
