TRANSFER ASSEMBLY & GASKET KIT

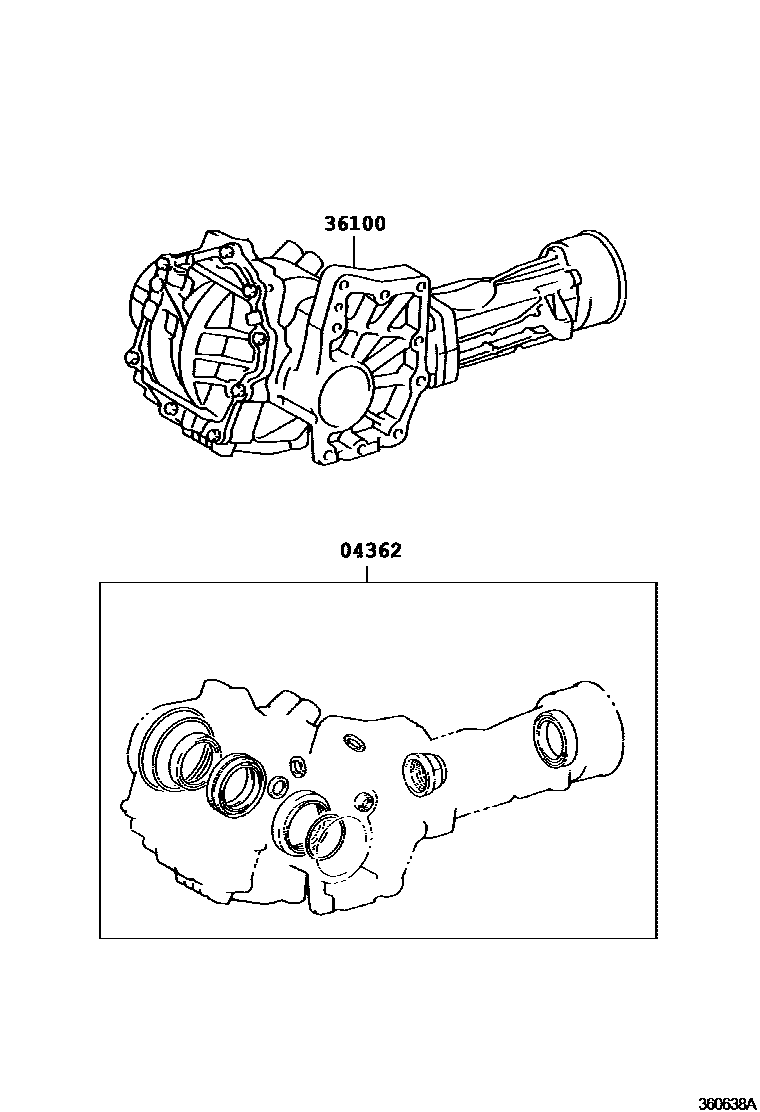

Parts diagram

04362GASKET KIT, TRANSFER OVERHAUL

main04362-21030i200308-200508

main04362-48020i200508

36100TRANSFER ASSY

main36100-45010i200308-200401

main36100-45011i200401-200511

main36100-45012i200511-200705

main36100-48020i200011-200308

2 parts on this diagram · 1 diagram in section
