V-BELT

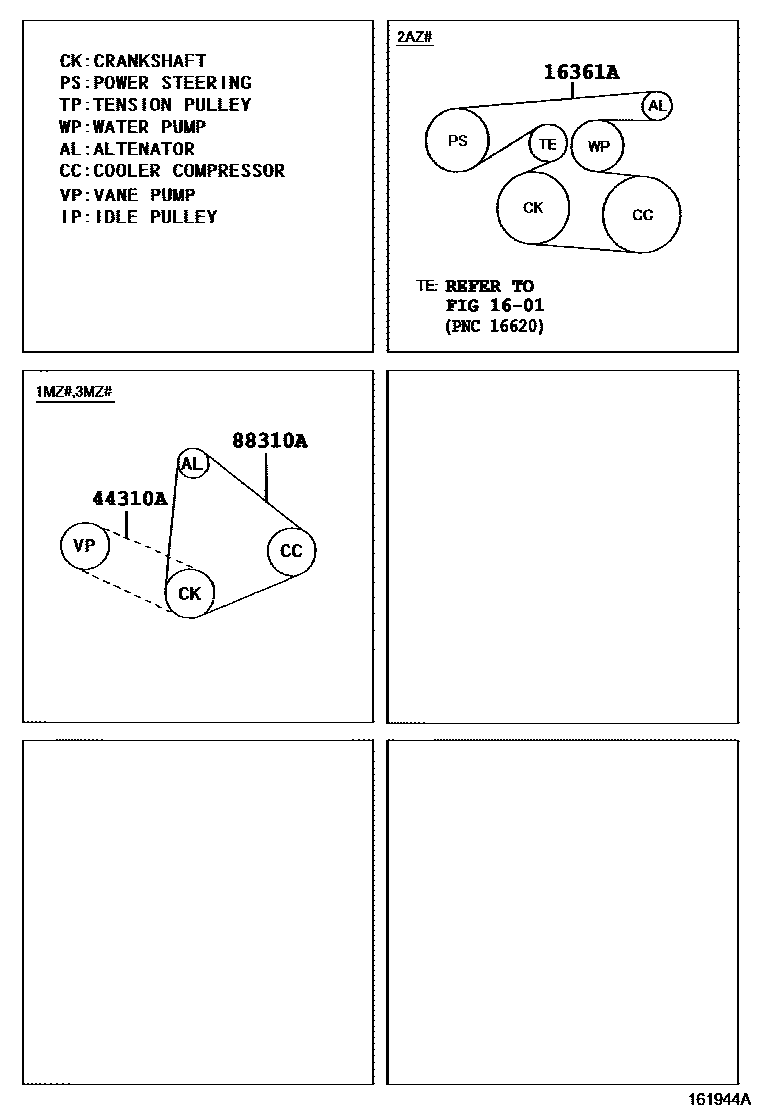

Parts diagram

1601WATER PUMP

→ Go to FIG 16-01

16361ABELT, V(FOR FAN & ALTERNATOR)

main90916-02503i200011-200308

main90916-02599i200403

44310ABELT, V(FOR VANE PUMP)

main90080-91088i200011-200308

L=878

main90080-91212i200308

L=880

88310ABELT, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1

main99366-21040i200011-200308

L=1040

main99366-31040i200308

L=1040

4 parts on this diagram · 1 diagram in section
