VENTILATION HOSE

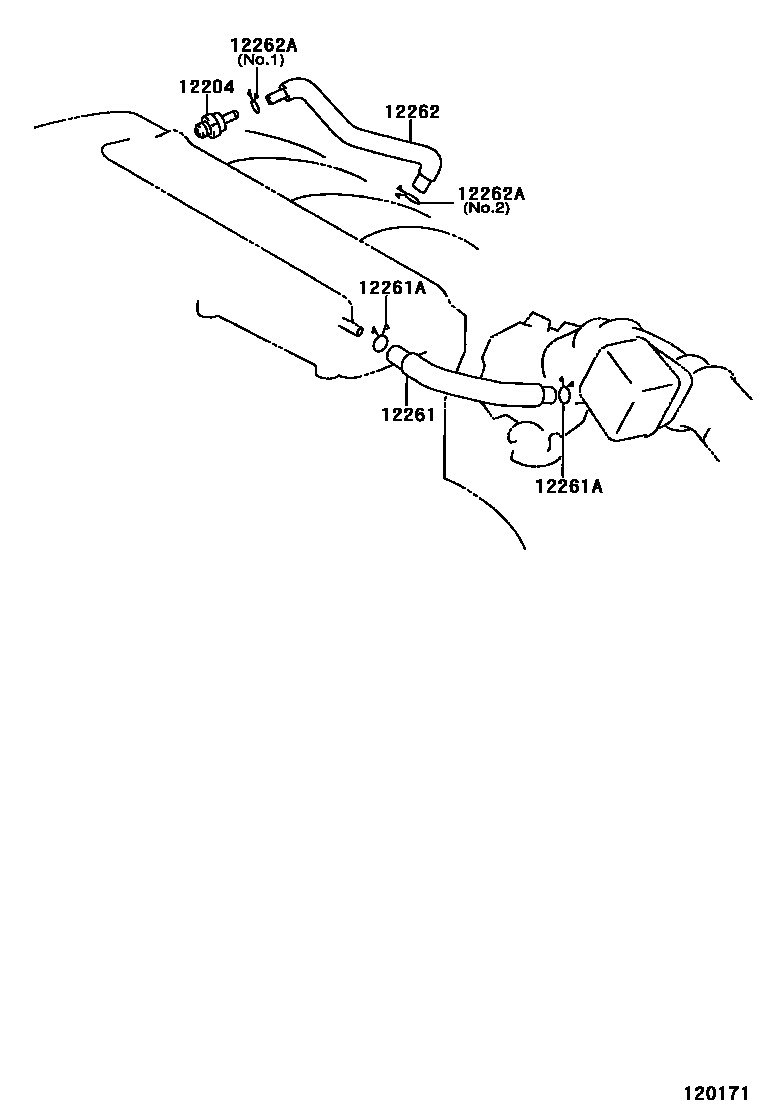

Parts diagram
12204VALVE SUB-ASSY, VENTILATION
main12204-20020i200011-200101
main12204-20040i200101-200512
main12204-20060i200412-200501
main12204-28020i200011-200308
12261HOSE, VENTILATION
main12261-20011i200011-200412
main12261-20090i200412-200509
sub12261-20091
main12261-20091i200509
main12261-28030i200011-200308
12261ACLIP OR CLAMP(FOR VENTILATION HOSE)
main90467-14017i200011-200308
main90467-19003i200011-200308
12262HOSE, VENTILATION, NO.2
main12261-20020i200011-200308
main12261-20060i200308
main12262-28020i200011-200104
sub12262-28021
main12262-28021i200104-200308
12262ACLIP(FOR VENTILATION HOSE NO.2)
main90467-13103i200011-200308
NO.1
main90467-16035i200011-200308
NO.2
main90467-17011i200011-200302
NO.1
sub96134-51700
main90467-20005i200011-200204
NO.2
sub96134-41900
main96134-41900i200204-200308
NO.2
main96134-51700i200302-200308
NO.1

5 parts on this diagram · 3 diagrams in section
