SHORT BLOCK ASSEMBLY

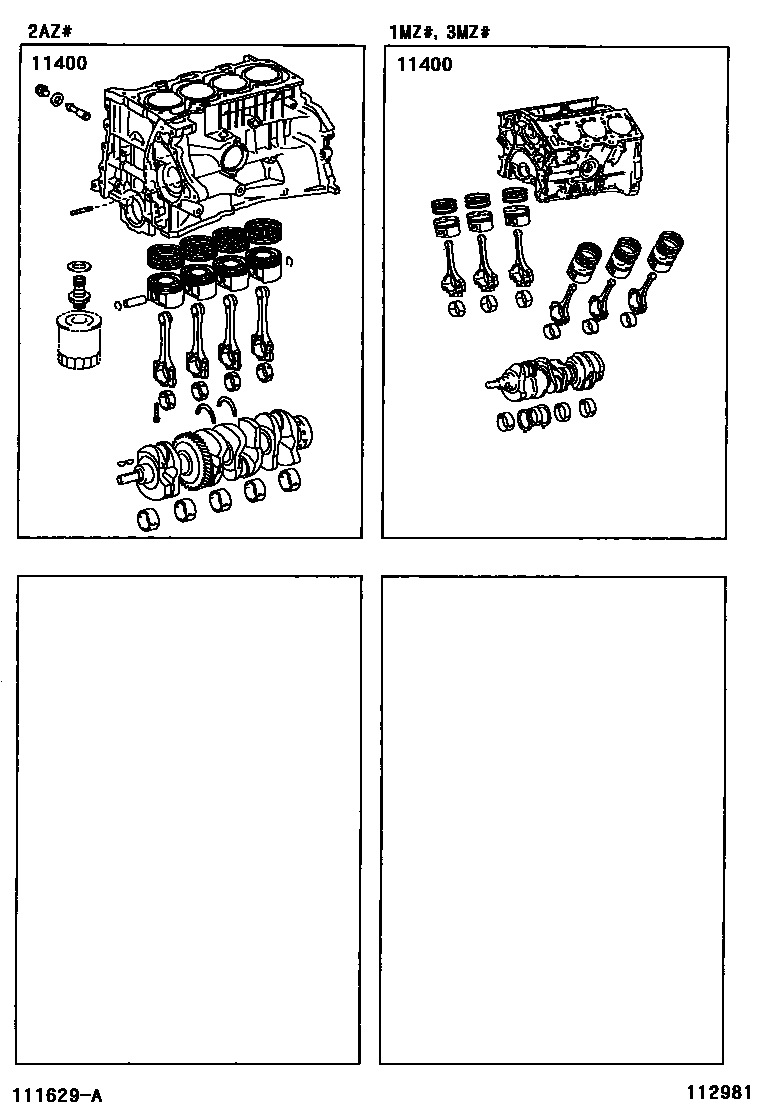

Parts diagram

11400BLOCK ASSY, SHORT

main11400-0A140i200011-200308

(L)

main11400-20051i200011-200308

(J)

main11400-20061i200011-200308

main11400-20100i200308

main11400-20110i200308

main11400-28050i200011-200308

main11400-28171i200308-200310

main11400-28311i200608

1 parts on this diagram · 1 diagram in section
