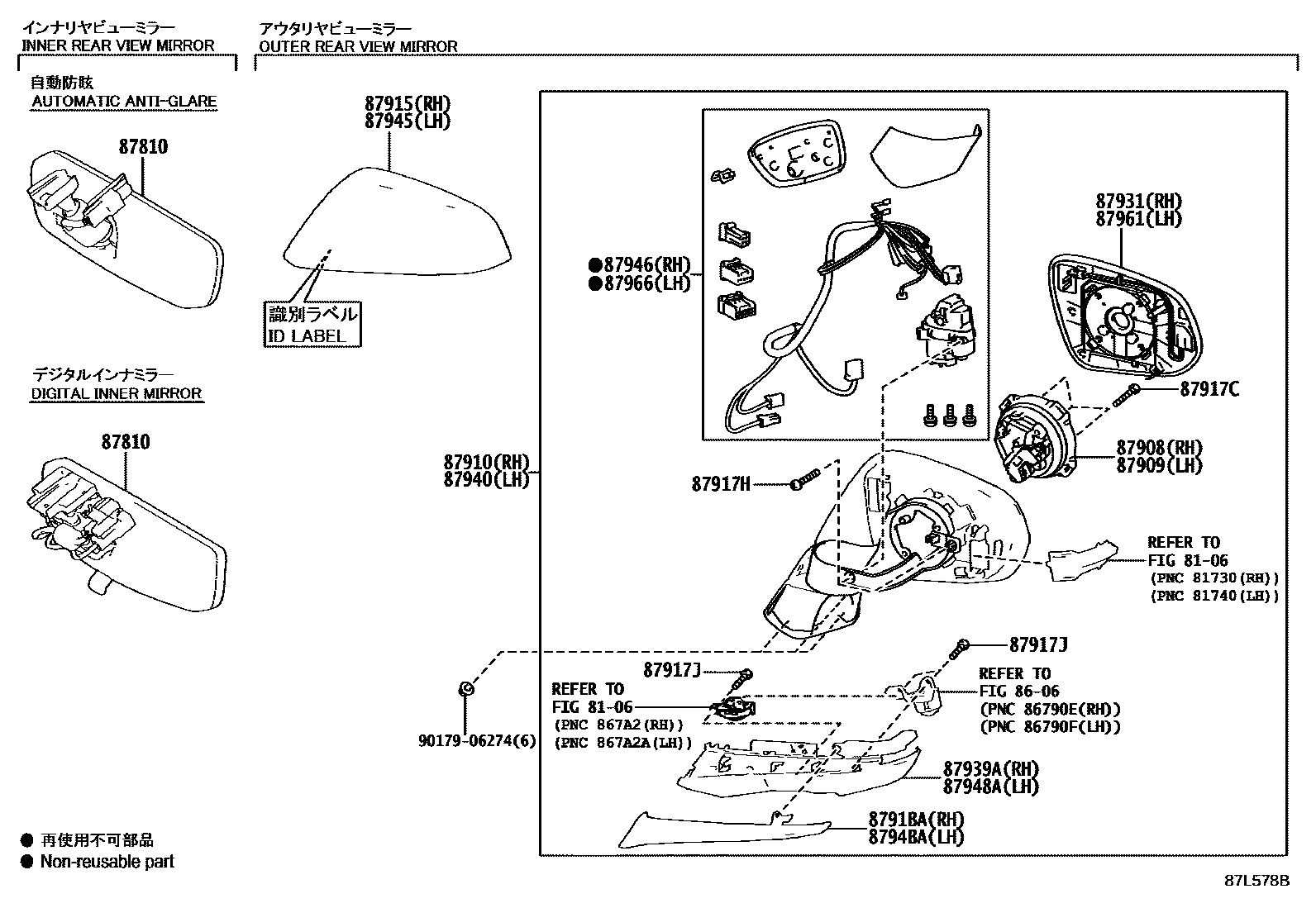

MIRROR
8106SIDE TURN SIGNAL LAMP & OUTER MIRROR LAMP
8606CAMERA & REAR MONITOR DISPLAY
87810MIRROR ASSY, INNER REAR VIEW
KOREA SPEC&INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE
INSIDE REAR VIEW MIRROR-DIGITAL INNER MIRROR
INSIDE REAR VIEW MIRROR-DIGITAL INNER MIRROR & WITH(*GDO)
INSIDE REAR VIEW MIRROR-DIGITAL INNER MIRROR; KOREA SPEC&INSIDE REAR VIEW MIRROR-DIGITAL INNER MIRROR
INSIDE REAR VIEW MIRROR-DIGITAL INNER MIRROR & WITH(*GDO)
KOREA SPEC&INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE
87908ACTUATOR ASSY, OUTER MIRROR, RH
87909ACTUATOR ASSY, OUTER MIRROR, LH
87910MIRROR ASSY, OUTER REAR VIEW, RH
NO PAINT REQ.
NO PAINT REQ.
NO PAINT REQ.
NO PAINT REQ.
NO PAINT REQ.
NO PAINT REQ.,PREMIUM&BACK MONITOR-WITH(*PVM & CAMERA CLEANER); NO PAINT REQ.,PREMIUM+&BACK MONITOR-WITH(*PVM & CAMERA CLEANER)
87915COVER, OUTER MIRROR, RH
SONIC QUARTZ,085,W(LABEL)
SONIC TITANIUM,1J7,W(LABEL)
SONIC CHROME,1L1,W(LABEL)
SONIC IRIDIUM,1L2,W(LABEL)
GRAPHITE BLACK GF.,223,W(LABEL)
RED MC.CS.,3R1,W(LABEL)
SONIC COPPER,4Y5,W(LABEL)
TERRANE KHAKI M.M.,6X4,W(LABEL)
DEEP BLUE MC.,8X5,W(LABEL)
NO PAINT REQ.,F SPORT DESIGN,BLACK,083 ,1L1 ,1L2 ,223 ,4Y5 ,8X1,W/O(LABEL); NO PAINT REQ.,F SPORT+,BLACK,083 ,1L1 ,1L2 ,223 ,4Y5 ,8X1,W/O(LABEL); NO PAINT REQ.,F SPORT,BLACK,083 ,1L1 ,1L2 ,223 ,4Y5 ,8X1,W/O(LABEL)
87917CSCREW, OUTER MIRROR
87917HSCREW, OUTER MIRROR, NO.2
87917JSCREW, OUTER MIRROR, NO.3
87931OUTER MIRROR, RH
87939ACOVER, OUTER MIRROR HOLE, RH
87940MIRROR ASSY, OUTER REAR VIEW, LH
NO PAINT REQ.
NO PAINT REQ.
NO PAINT REQ.
NO PAINT REQ.
NO PAINT REQ.
NO PAINT REQ.,PREMIUM&BACK MONITOR-WITH(*PVM & CAMERA CLEANER); NO PAINT REQ.,PREMIUM+&BACK MONITOR-WITH(*PVM & CAMERA CLEANER)
87945COVER, OUTER MIRROR, LH
SONIC QUARTZ,085,W(LABEL)
SONIC TITANIUM,1J7,W(LABEL)
SONIC CHROME,1L1,W(LABEL)
SONIC IRIDIUM,1L2,W(LABEL)
GRAPHITE BLACK GF.,223,W(LABEL)
RED MC.CS.,3R1,W(LABEL)
SONIC COPPER,4Y5,W(LABEL)
TERRANE KHAKI M.M.,6X4,W(LABEL)
DEEP BLUE MC.,8X5,W(LABEL)
F SPORT DESIGN,BLACK,083 ,1L1 ,1L2 ,223 ,4Y5 ,8X1,W/O(LABEL); F SPORT+,BLACK,083 ,1L1 ,1L2 ,223 ,4Y5 ,8X1,W/O(LABEL); F SPORT,BLACK,083 ,1L1 ,1L2 ,223 ,4Y5 ,8X1,W/O(LABEL)
87946RETRACTOR, OUTER MIRROR, RH
87948ACOVER, OUTER MIRROR HOLE, LH
87961MIRROR OUTER, LH
87966RETRACTOR, OUTER MIRROR, LH
9017906274
main90179-06274
21 parts on this diagram · 1 diagram in section
