CAMERA & REAR MONITOR DISPLAY
86470COMPUTER ASSY, DRIVER MONITOR
LANE KEEPING SYSTEM-WITH(VIB & TOUCH & EDSS & L2PT)
LANE KEEPING SYSTEM-WITH(VIB & TOUCH & EDSS & L2PT)
LANE KEEPING SYSTEM-WITH(VIB & TOUCH & EDSS & L2PT)
86471CAMERA, DRIVER MONITOR
LANE KEEPING SYSTEM-WITH(VIB & TOUCH & EDSS & L2PT)
86790BCAMERA ASSY, TELEVISION, FR
BACK MONITOR-WITH(*PVM & CAMERA CLEANER)
86790DCAMERA ASSY, TELEVISION, RR
86790ECAMERA ASSY, TELEVISION, SIDE RH
BACK MONITOR-WITH(*PVM & CAMERA CLEANER)
86790FCAMERA ASSY, TELEVISION, SIDE LH
86791CBRACKET, COMPUTER PARKING ASSIST, NO.1
EMV & NAVIGATION SYSTEM-EMV(14INCH DISPLAY) & NAVIGATION SYSTEM&BACK MONITOR-WITH(*PVM & CAMERA CLEANER)
86791DBRACKET, COMPUTER PARKING ASSIST, NO.2
EMV & NAVIGATION SYSTEM-EMV(14INCH DISPLAY) & NAVIGATION SYSTEM&BACK MONITOR-WITH(*PVM & CAMERA CLEANER)
86791HBRACKET, COMPUTER PARKING ASSIST, NO.3
EMV & NAVIGATION SYSTEM-EMV(14INCH DISPLAY) & NAVIGATION SYSTEM&BACK MONITOR-WITH(*PVM & CAMERA CLEANER)
86792CCOMPUTER, PARKING ASSIST
EMV & NAVIGATION SYSTEM-EMV(14INCH DISPLAY) & NAVIGATION SYSTEM&BACK MONITOR-WITH(*PVM & CAMERA CLEANER)
EMV & NAVIGATION SYSTEM-EMV(14INCH DISPLAY) & NAVIGATION SYSTEM&BACK MONITOR-WITH(*PVM & CAMERA CLEANER)
EMV & NAVIGATION SYSTEM-EMV(14INCH DISPLAY) & NAVIGATION SYSTEM&BACK MONITOR-WITH(*PVM & CAMERA CLEANER)
BACK MONITOR-WITH(*PVM & CAMERA CLEANER)
BACK MONITOR-WITH(*PVM & CAMERA CLEANER)
BACK MONITOR-WITH(*PVM & CAMERA CLEANER)
86799DWIRE, TELEVISION CAMERA, FRONT
867C0BCAMERA ASSY, INNER MIRROR, RR
INSIDE REAR VIEW MIRROR-DIGITAL INNER MIRROR & WITH(*GDO)
INSIDE REAR VIEW MIRROR-DIGITAL INNER MIRROR
9010508466
main90105-08466
9011906A07
main90119-06A07
9015350015
main90153-50015
9015960621
main90159-60621
9016750063
main90167-50063
9017906274
main90179-06274
9018906244
main90189-06244
9356855014
main93568-55014
9415180600
main94151-80600

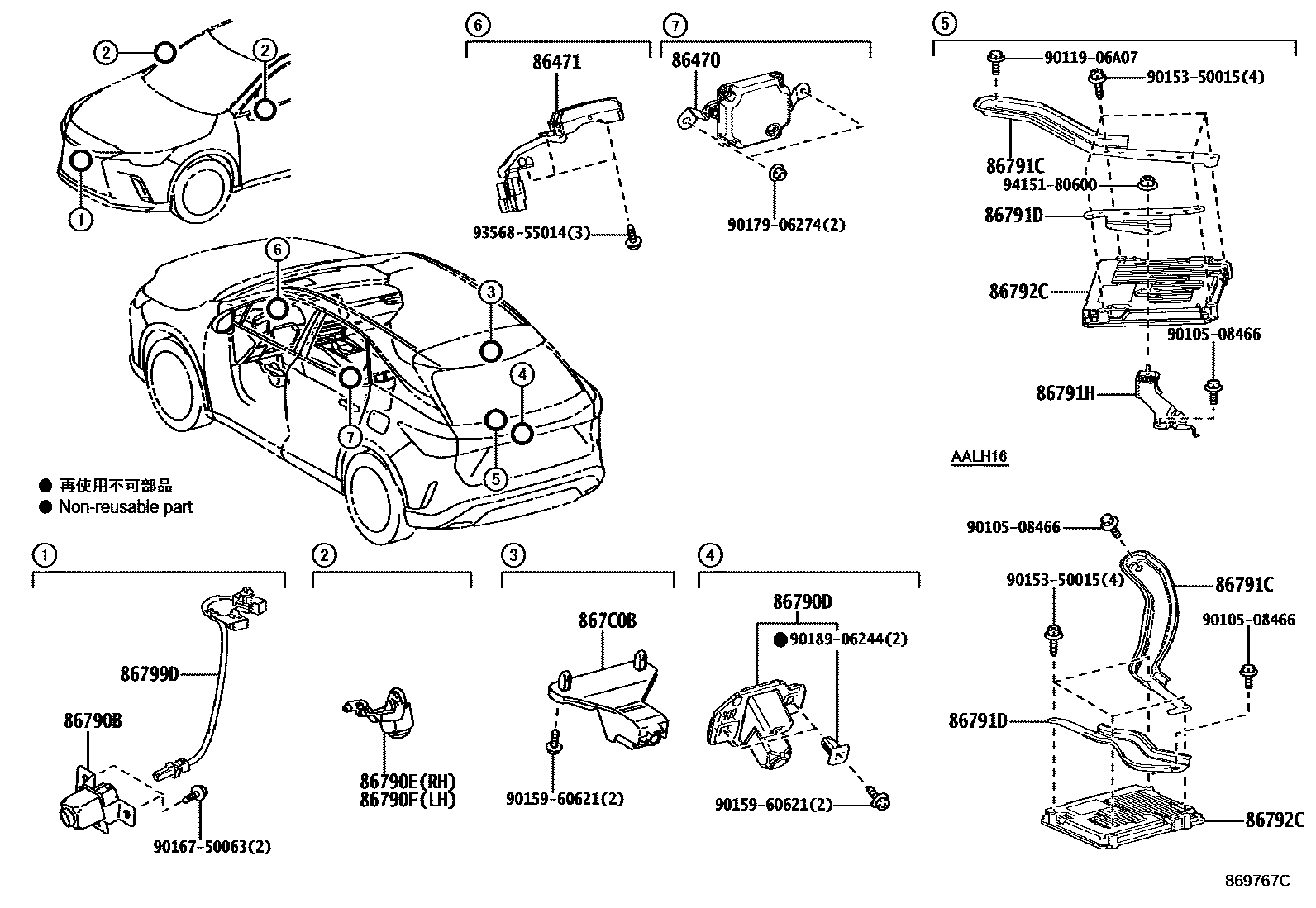

21 parts on this diagram · 1 diagram in section
