TIRE PRESSURE WARNING SYSTEM

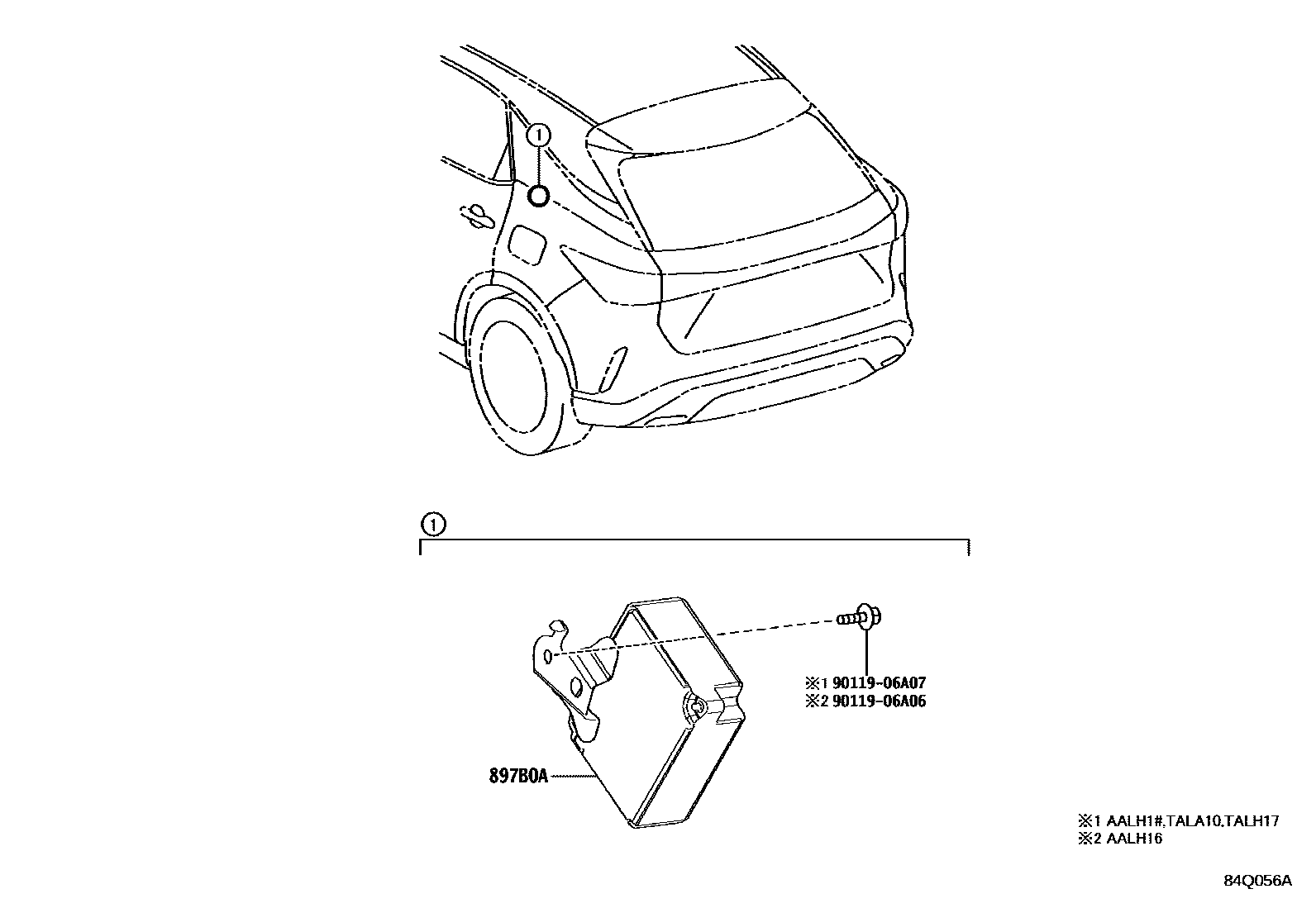

Parts diagram

897B0ARECEIVER ASSY, ELECTRICAL KEY & TPMS

main897B0-48390i202211-202307

main897B0-48391i202308

main897B0-48460supersedes 897B0-48230i202211-202308

9011906A06

main90119-06A06

9011906A07

main90119-06A07

3 parts on this diagram · 1 diagram in section
