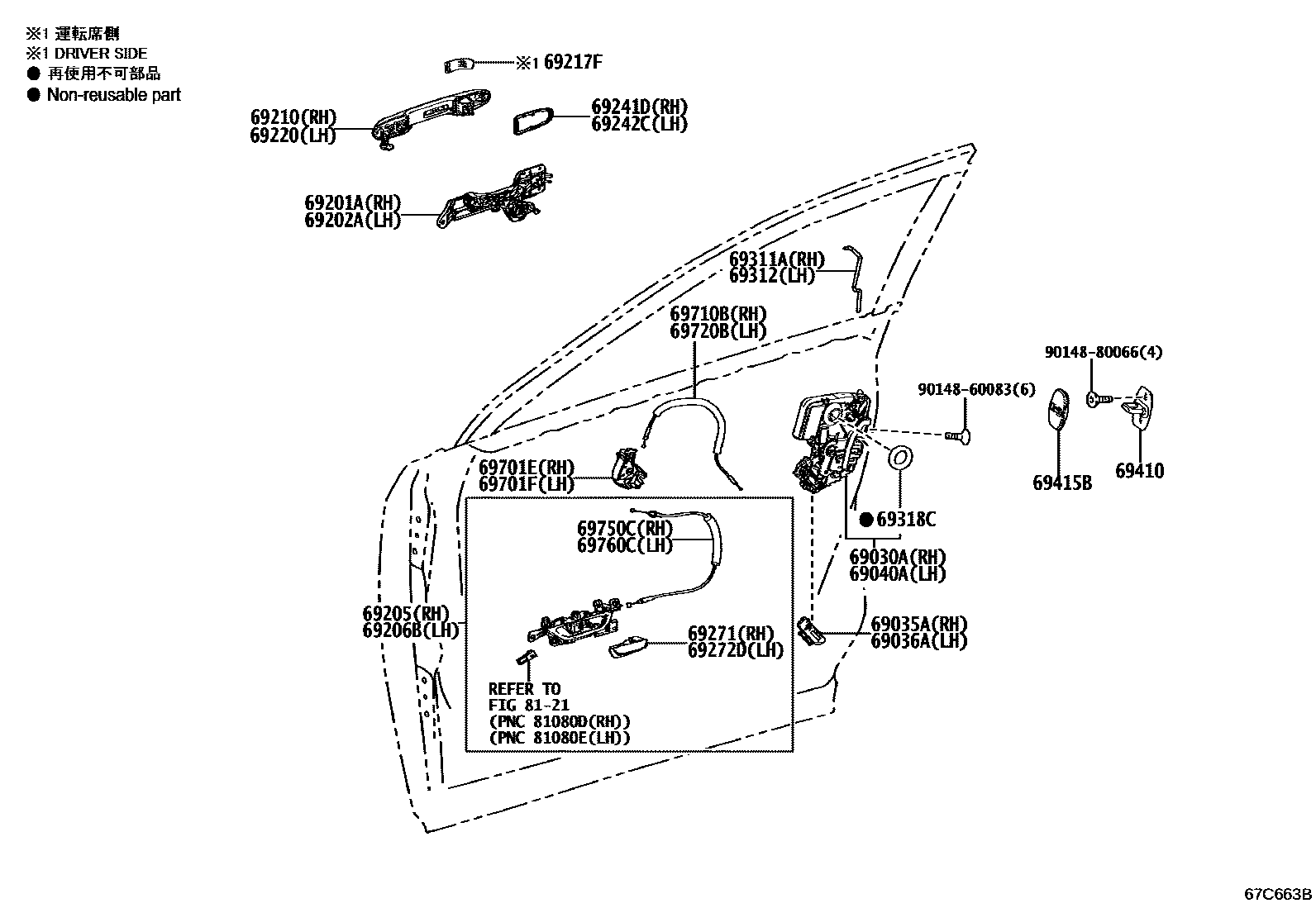

FRONT DOOR LOCK & HANDLE

69030ALOCK ASSY, FRONT DOOR W/MOTOR, RH

main69030-78110iAALH1#,TALA10,TALH17202211

69035ACOVER SUB-ASSY, FRONT DOOR LOCK, RH

main69035-78010iAALH1#,TALA10,TALH17202211

69036ACOVER SUB-ASSY, FRONT DOOR LOCK, LH

main69036-78010iAALH1#,TALA10,TALH17202211

69040ALOCK ASSY, FRONT DOOR W/MOTOR, LH

main69040-78090iAALH1#,TALA10,TALH17202211

69201AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, RH

main69201-78050iAALH1#,TALA10,TALH17202211

69202AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, LH

main69202-48030supersedes 69202-78050iAALH16202211-202410

main69202-78050iTALA10202211

69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH

main69070-48011iTALA10202211

main69070-48031iAALH1#,TALH17; TALA10202211-202410

PREMIUM+

main69070-48120iAALH15,TALH17; TALA10202410

PREMIUM+

69206BHANDLE SUB-ASSY, FRONT DOOR INSIDE, LH

main69080-48011iTALA10202211

main69080-48031iAALH1#,TALH17; TALA10202211-202410

PREMIUM+

main69080-48110iAALH15,TALH17; TALA10202410

PREMIUM+

69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH

main69210-48180-A0iTALH17202211-202302

WHITE NOVA GF.,083

main69210-48180-A1iAALH1#,TALA10202211-202302

SONIC QUARTZ,085

main69210-48180-B1iAALH1#,TALA10202211-202302

SONIC TITANIUM,1J7

main69210-48180-B2iAALH1#,TALA10,TALH17202211-202302

SONIC CHROME,1L1

main69210-48180-B3iAALH1#,TALA10,TALH17202211-202302

SONIC IRIDIUM,1L2

main69210-48180-C0iAALH1#,TALA10,TALH17202211-202302

GRAPHITE BLACK GF.,223

main69210-48180-D0iAALH1#,TALA10202211-202302

RED MC.CS.,3R1

main69210-48180-E0iAALH1#,TALA10,TALH17202211-202302

SONIC COPPER,4Y5

main69210-48180-G0iAALH1#,TALA10202211-202302

TERRANE KHAKI M.M.,6X4

main69210-48180-J0iTALH17202211-202302

HEAT BLUE CONTRAST LAYERI,8X1

main69210-48180-J1iAALH1#,TALA10202211-202302

DEEP BLUE MC.,8X5

main69210-48181-A0iTALH17202303-202304

WHITE NOVA GF.,083

main69210-48181-A1iAALH1#,TALA10202303-202304

SONIC QUARTZ,085

main69210-48181-B1iAALH1#,TALA10202303-202304

SONIC TITANIUM,1J7

main69210-48181-B2iAALH1#,TALA10,TALH17202303-202304

SONIC CHROME,1L1

main69210-48181-B3iAALH1#,TALA10,TALH17202303-202304

SONIC IRIDIUM,1L2

main69210-48181-C0iAALH1#,TALA10,TALH17202303-202304

GRAPHITE BLACK GF.,223

main69210-48181-D0iAALH1#,TALA10202303-202304

RED MC.CS.,3R1

main69210-48181-E0iAALH1#,TALA10,TALH17202303-202304

SONIC COPPER,4Y5

main69210-48181-G0iAALH1#,TALA10202303-202304

TERRANE KHAKI M.M.,6X4

main69210-48181-J0iTALH17202303-202304

HEAT BLUE CONTRAST LAYERI,8X1

main69210-48181-J1iAALH1#,TALA10202303-202304

DEEP BLUE MC.,8X5

main69210-48182-A0iAALH1#,TALA10,TALH17202304

WHITE NOVA GF.,083

main69210-48182-A1iAALH1#,TALA10202304-202509

SONIC QUARTZ,085

main69210-48182-B1iAALH1#,TALA10202304

SONIC TITANIUM,1J7

main69210-48182-B2iAALH1#,TALA10,TALH17202304

SONIC CHROME,1L1

main69210-48182-B3iAALH1#,TALA10,TALH17202304

SONIC IRIDIUM,1L2

main69210-48182-C0iAALH1#,TALA10,TALH17202304

GRAPHITE BLACK GF.,223

main69210-48182-D0iAALH1#,TALA10202304

RED MC.CS.,3R1

main69210-48182-E0iAALH1#,TALA10,TALH17202304

SONIC COPPER,4Y5

main69210-48182-G0iAALH1#,TALA10202304

TERRANE KHAKI M.M.,6X4

main69210-48182-J0iTALH17202304

HEAT BLUE CONTRAST LAYERI,8X1

main69210-48182-J1iAALH1#,TALA10202304

DEEP BLUE MC.,8X5

69217FCOVER, FRONT DOOR OUTSIDE HANDLE, LH

main69217-78020-A0iAALH1#,TALA10,TALH17202211

WHITE NOVA GF.,083

main69217-78020-A1iAALH1#,TALA10202211-202509

SONIC QUARTZ,085

main69217-78020-B0iAALH1#,TALA10202211

SONIC TITANIUM,1J7

main69217-78020-B1iAALH1#,TALA10,TALH17202211

SONIC CHROME,1L1

main69217-78020-B3iAALH1#,TALA10,TALH17202211

SONIC IRIDIUM,1L2

main69217-78020-C1iAALH1#,TALA10,TALH17202211

GRAPHITE BLACK GF.,223

main69217-78020-D1iAALH1#,TALA10202211

RED MC.CS.,3R1

main69217-78020-E1iAALH1#,TALA10,TALH17202211

SONIC COPPER,4Y5

main69217-78020-G0iAALH1#,TALA10202211

TERRANE KHAKI M.M.,6X4

main69217-78020-J0iTALH17202211

HEAT BLUE CONTRAST LAYERI,8X1

main69217-78020-J2iAALH1#,TALA10202211

DEEP BLUE MC.,8X5

69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH

main69220-48120-A0iTALH17202211-202302

WHITE NOVA GF.,083

main69220-48120-A1iAALH1#,TALA10202211-202302

SONIC QUARTZ,085

main69220-48120-B1iAALH1#,TALA10202211-202302

SONIC TITANIUM,1J7

main69220-48120-B2iAALH1#,TALA10,TALH17202211-202302

SONIC CHROME,1L1

main69220-48120-B3iAALH1#,TALA10,TALH17202211-202302

SONIC IRIDIUM,1L2

main69220-48120-C0iAALH1#,TALA10,TALH17202211-202302

GRAPHITE BLACK GF.,223

main69220-48120-D0iAALH1#,TALA10202211-202302

RED MC.CS.,3R1

main69220-48120-E0iAALH1#,TALA10,TALH17202211-202302

SONIC COPPER,4Y5

main69220-48120-G0iAALH1#,TALA10202211-202302

TERRANE KHAKI M.M.,6X4

main69220-48120-J0iTALH17202211-202302

HEAT BLUE CONTRAST LAYERI,8X1

main69220-48120-J1iAALH1#,TALA10202211-202302

DEEP BLUE MC.,8X5

main69220-48121-A0iTALH17202303-202304

WHITE NOVA GF.,083

main69220-48121-A1iAALH1#,TALA10202303-202304

SONIC QUARTZ,085

main69220-48121-B1iAALH1#,TALA10202303-202304

SONIC TITANIUM,1J7

main69220-48121-B2iAALH1#,TALA10,TALH17202303-202304

SONIC CHROME,1L1

main69220-48121-B3iAALH1#,TALA10,TALH17202303-202304

SONIC IRIDIUM,1L2

main69220-48121-C0iAALH1#,TALA10,TALH17202303-202304

GRAPHITE BLACK GF.,223

main69220-48121-D0iAALH1#,TALA10202303-202304

RED MC.CS.,3R1

main69220-48121-E0iAALH1#,TALA10,TALH17202303-202304

SONIC COPPER,4Y5

main69220-48121-G0iAALH1#,TALA10202303-202304

TERRANE KHAKI M.M.,6X4

main69220-48121-J0iTALH17202303-202304

HEAT BLUE CONTRAST LAYERI,8X1

main69220-48121-J1iAALH1#,TALA10202303-202304

DEEP BLUE MC.,8X5

main69220-48122-A0iAALH1#,TALA10,TALH17202304

WHITE NOVA GF.,083

main69220-48122-A1iAALH1#,TALA10202304-202509

SONIC QUARTZ,085

main69220-48122-B1iAALH1#,TALA10202304

SONIC TITANIUM,1J7

main69220-48122-B2iAALH1#,TALA10,TALH17202304

SONIC CHROME,1L1

main69220-48122-B3iAALH1#,TALA10,TALH17202304

SONIC IRIDIUM,1L2

main69220-48122-C0iAALH1#,TALA10,TALH17202304

GRAPHITE BLACK GF.,223

main69220-48122-D0iAALH1#,TALA10202304

RED MC.CS.,3R1

main69220-48122-E0iAALH1#,TALA10,TALH17202304

SONIC COPPER,4Y5

main69220-48122-G0iAALH1#,TALA10202304

TERRANE KHAKI M.M.,6X4

main69220-48122-J0iTALH17202304

HEAT BLUE CONTRAST LAYERI,8X1

main69220-48122-J1iAALH1#,TALA10202304

DEEP BLUE MC.,8X5

69241DPAD, FRONT DOOR OUTSIDE HANDLE, RH

main69241-48060iAALH1#,TALA10,TALH17202211

69242CPAD, FRONT DOOR OUTSIDE HANDLE, LH

main69241-48060iAALH1#,TALA10,TALH17202211

69271HANDLE, FRONT DOOR INSIDE, RH

main69271-48020iAALH1#,TALA10,TALH17202211

69272DHANDLE, FRONT DOOR INSIDE, LH

main69272-48020iAALH1#,TALA10,TALH17202211

69311AROD, FRONT DOOR LOCK OPEN, RH

main69311-48100iAALH1#,TALA10,TALH17202211

69312ROD, FRONT DOOR LOCK OPEN, LH

main69312-48100iAALH1#,TALA10,TALH17202211

69318CSEAL, DOOR LOCK WIRING HARNESS

main69318-51010×2iAALH1#,TALA10,TALH17202211

69410PLATE ASSY, FRONT DOOR LOCK STRIKER

main69410-33030×2iAALH1#,TALA10,TALH17202211

69415BCOVER, DOOR LOCK STRIKER, FRONT

main69415-60020×2iAALH1#,TALA10,TALH17202211

69701EBELLCRANK SUB-ASSY, FRONT DOOR LOCK CONTROL, UPPER, RH

main69701-48010iAALH1#,TALA10,TALH17202211

69701FBELLCRANK SUB-ASSY, FRONT DOOR LOCK CONTROL, UPPER, LH

main69701-48020iAALH1#,TALA10,TALH17202211

69710BCABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, RH

main69710-48100iAALH1#,TALA10,TALH17202211

69720BCABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, LH

main69710-48100iAALH1#,TALA10,TALH17202211

69750CCABLE ASSY, FRONT DOOR INSIDE LOCKING, RH

main69750-48100iTALA10202211

main69750-48180iAALH15,TALH17; TALA10202410

PREMIUM+

69760CCABLE ASSY, FRONT DOOR INSIDE LOCKING LH

main69750-48100iAALH1#,TALH17202211-202410

main69750-48180iAALH15,TALH17; TALA10202410

PREMIUM+

8121INTERIOR LAMP

→ Go to FIG 81-21

9014860083

main90148-60083

9014880066

main90148-80066

29 parts on this diagram · 1 diagram in section
